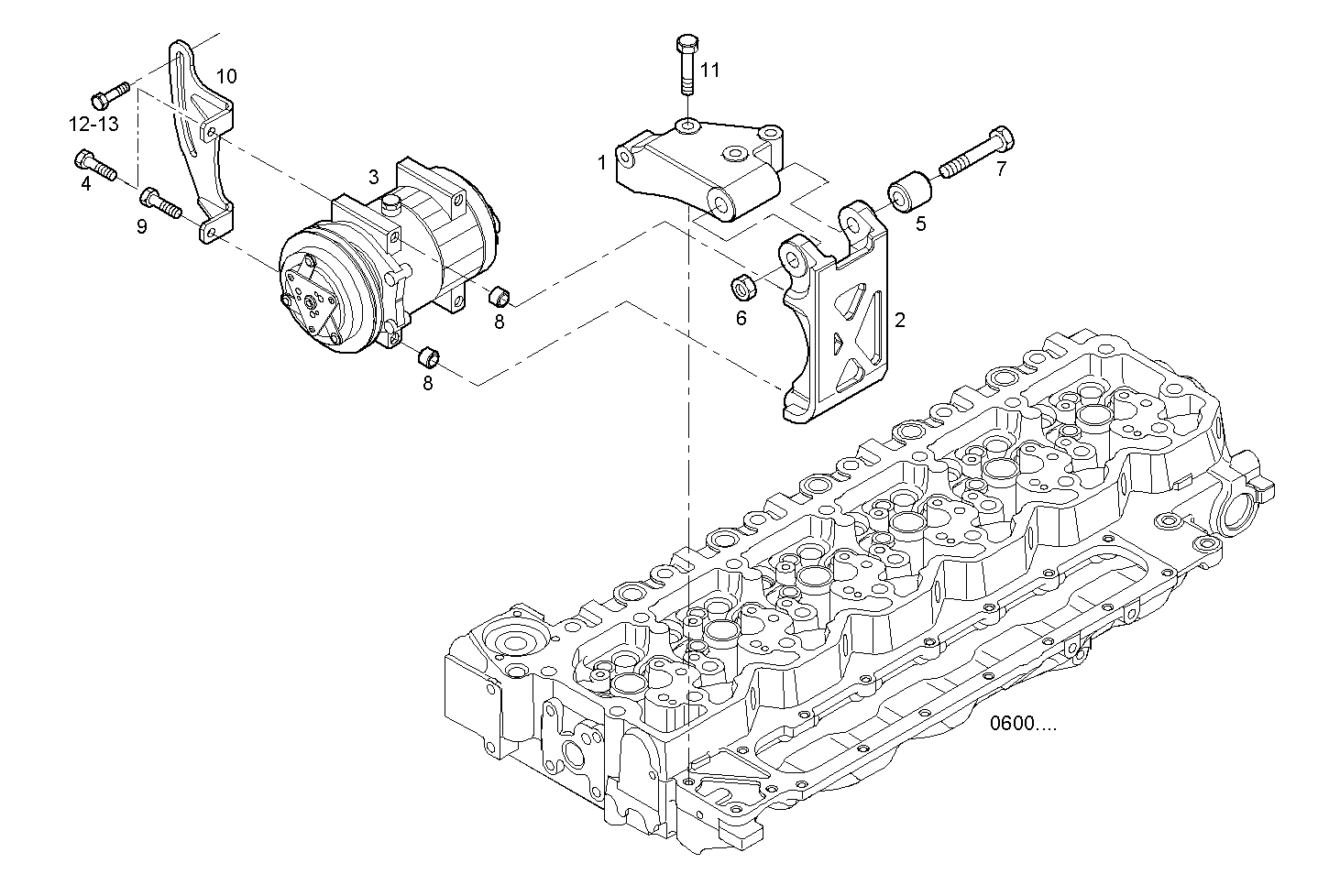

COMPRESSOR AIR CONDITIONING
N60ENTE22.00A001 — NEF 6 electron. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500387902 | SUPPORT SUPPORT | 1 | |
| 2 | 500387643 | SUPPORT SUPPORT | 1 | |
| 3 | 500388059 | AIR COND.COMPRESS. AIR COND.COMPRESS. | 1 | |
| 4 | 16598425 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 98433179 | SPACING BAR SPACING BAR | 1 | |
| 6 | 4899102 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 16599724 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 4895227 | DOWEL PIN DOWEL PIN | 2 | |
| 9 | 16598324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 500387903 | TENSIONER TENSIONER | 1 | |
| 11 | 4899144 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 4899147 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 1 |
