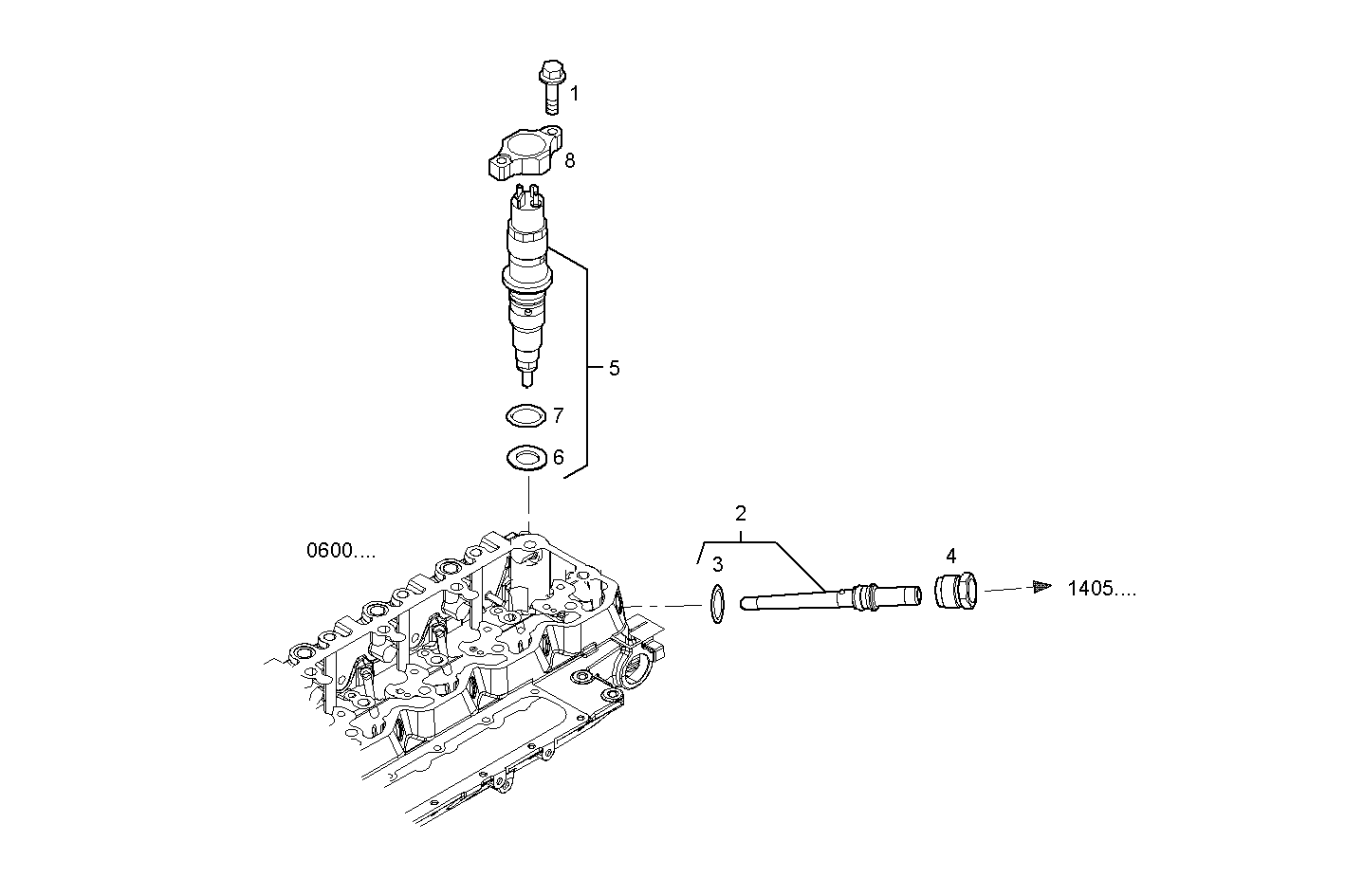

INJECTORS
F4HE9684P*J101 — NEF 6 electron. - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4895483 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 2 | 504100835 | FUEL LINE FUEL LINE | 6 | |
| 3 | 4890929 | O-RING O-RING | 6 | |
| 4 | 4893739 | CAP NUT CAP NUT | 6 | |
| 5 | 504128307 | ELECTRO INJECTOR ELECTRO INJECTOR | 6 | |
| 6 | 4899689 | WASHER WASHER | 6 | |
| 7 | 4890926 | O-RING O-RING | 6 | |
| 8 | 504091492 | FASTENING BRACKET FASTENING BRACKET | 6 |
