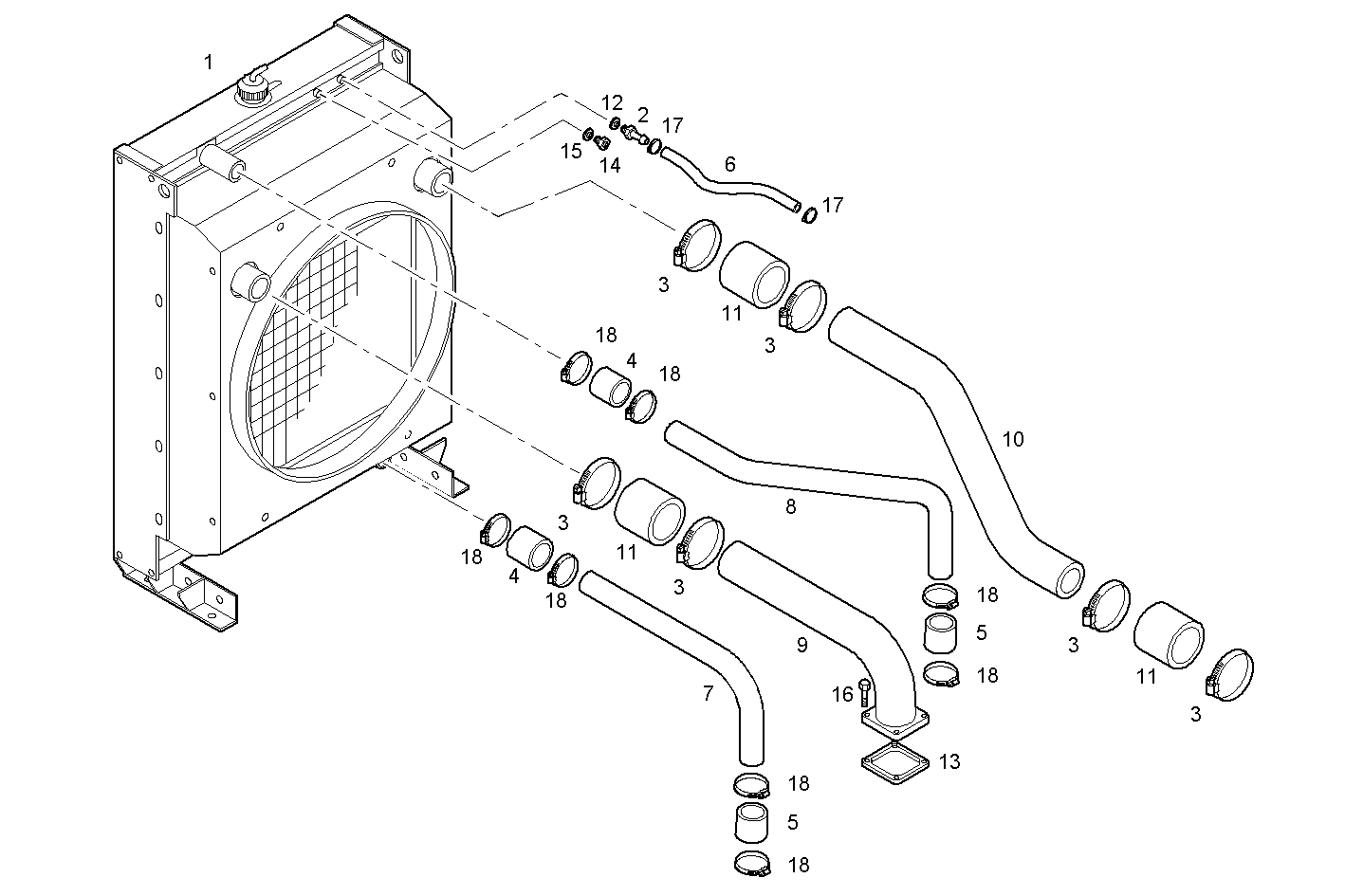

RADIATOR 2 CIRCUITS AIR/WATER
N67ENTX20.00 — NEF 6 electron. - TIER 3
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8044989 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 4935134 | OIL LINE OIL LINE | 1 | |
| 3 | 18089191 | CLIP CLIP | 1 | |
| 4 | 98433328 | WATER HOSE WATER HOSE | 2 | |
| 5 | 8043775 | WATER HOSE WATER HOSE | 2 | |
| 6 | 8034635 | BREATHER PIPE BREATHER PIPE | 1 | |
| 7 | 8044968 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8044969 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8035529 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 10 | 8035531 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 11 | 98443275 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 3 | |
| 12 | 4858607 | WASHER WASHER | 1 | |
| 13 | 4899921 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 14 | 4935727 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 10284460 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 18087993 | CLIP CLIP | 2 | |
| 18 | 17764892 | PIPE CLIP PIPE CLIP | 8 |
