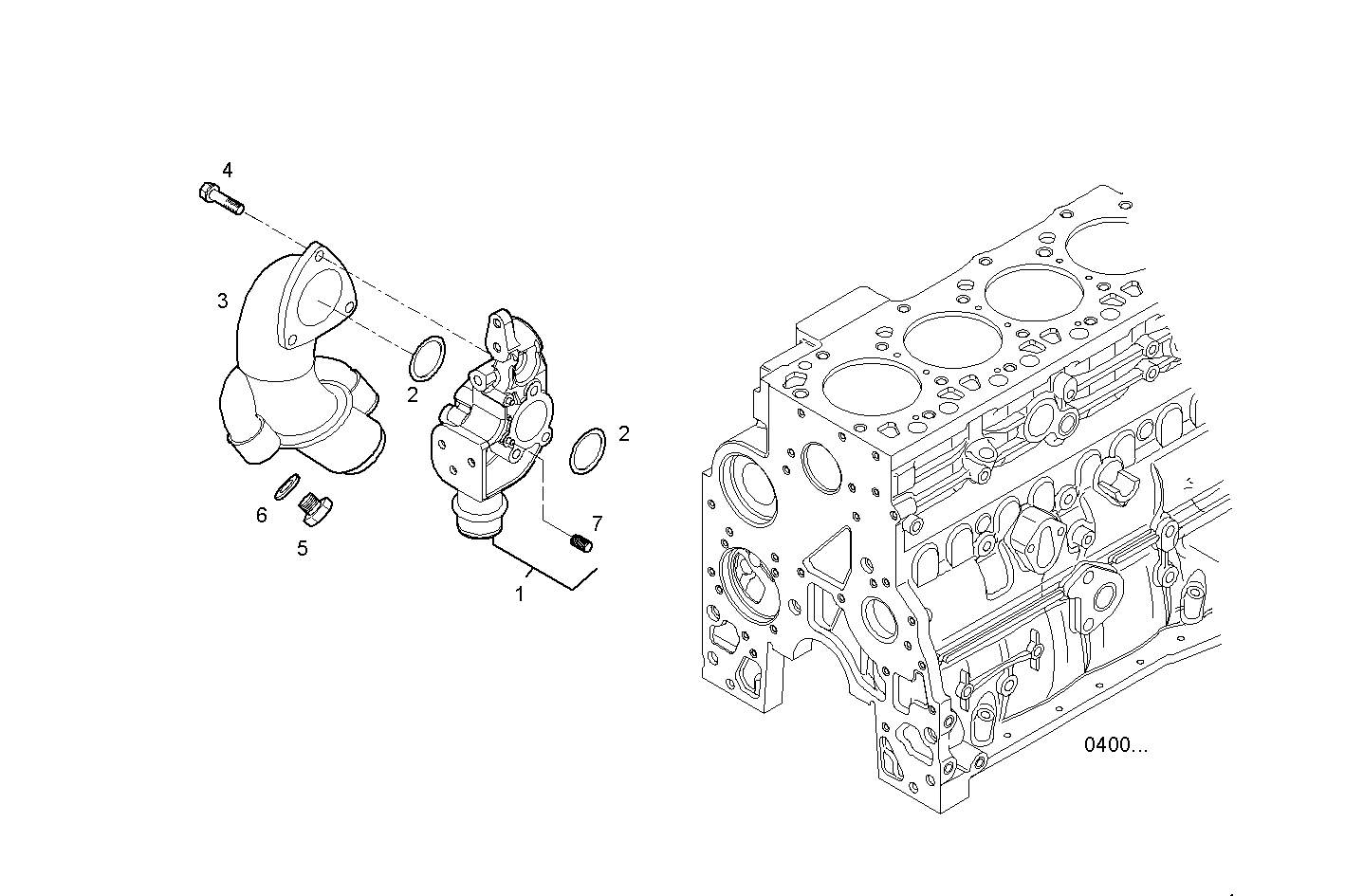

WATER PIPE
F4AE0685A*F100 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 500387647 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 2 | 504062710 | WASHER WASHER | 2 | |
| 3 | 504042847 | WATER PIPE WATER PIPE | 1 | |
| 4 | 16593025 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 5 | 4895392 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 4895393 | O-RING O-RING | 2 | |
| 7 | 4895576 | DOWEL PIN DOWEL PIN | 2 |
