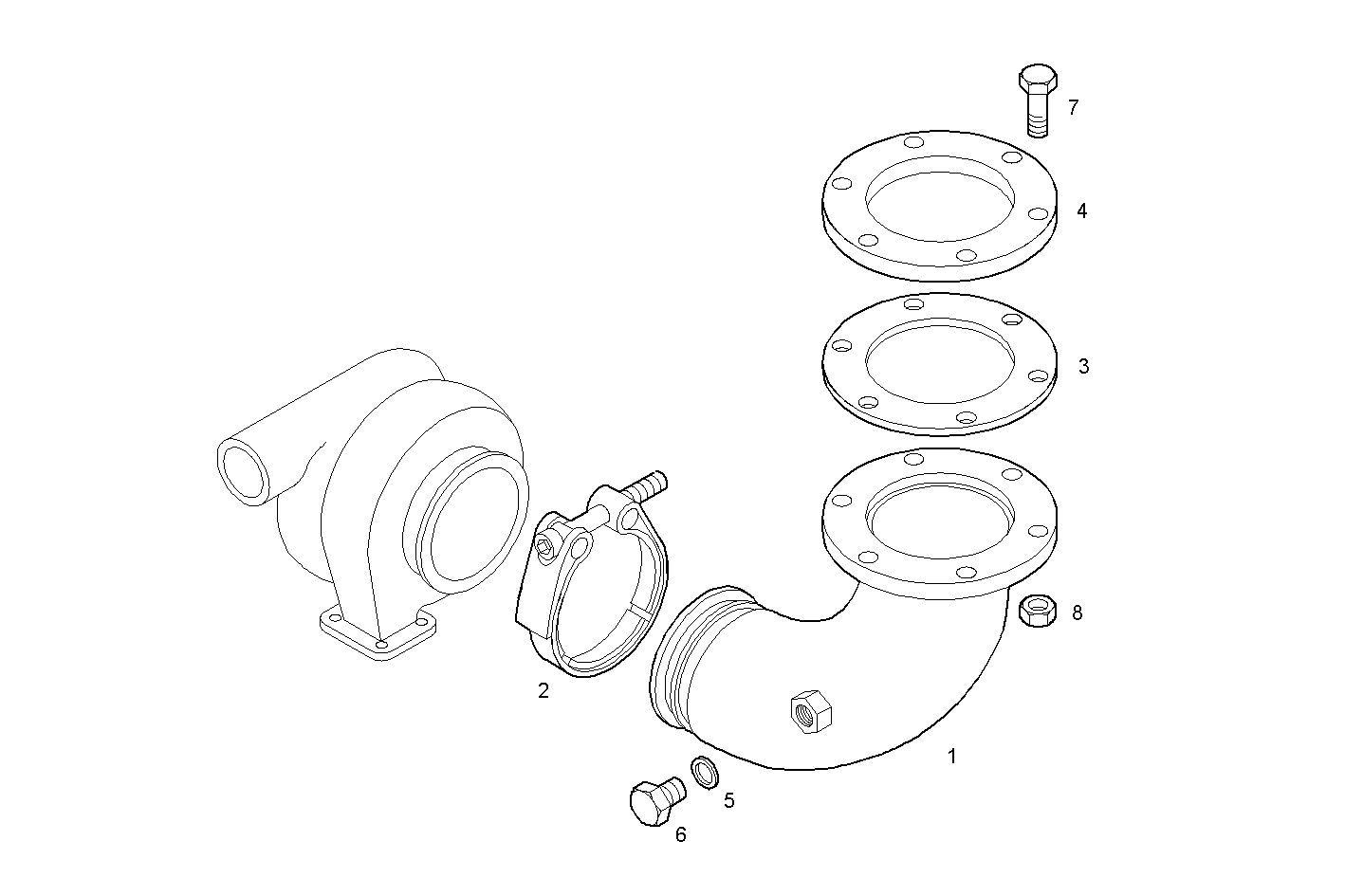

UPWARD FRONT EXHAUST ELBOW
GENEF200E.A002 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8033835 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 504031827 | CLIP CLIP | 1 | |
| 3 | 8009606 | GASKET GASKET | 1 | |
| 4 | 4919183 | FLANGE FLANGE | 1 | |
| 5 | 4858607 | WASHER WASHER | 1 | |
| 6 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 16673835 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 8 | 17044721 | HEXAGON NUT HEXAGON NUT | 6 |
