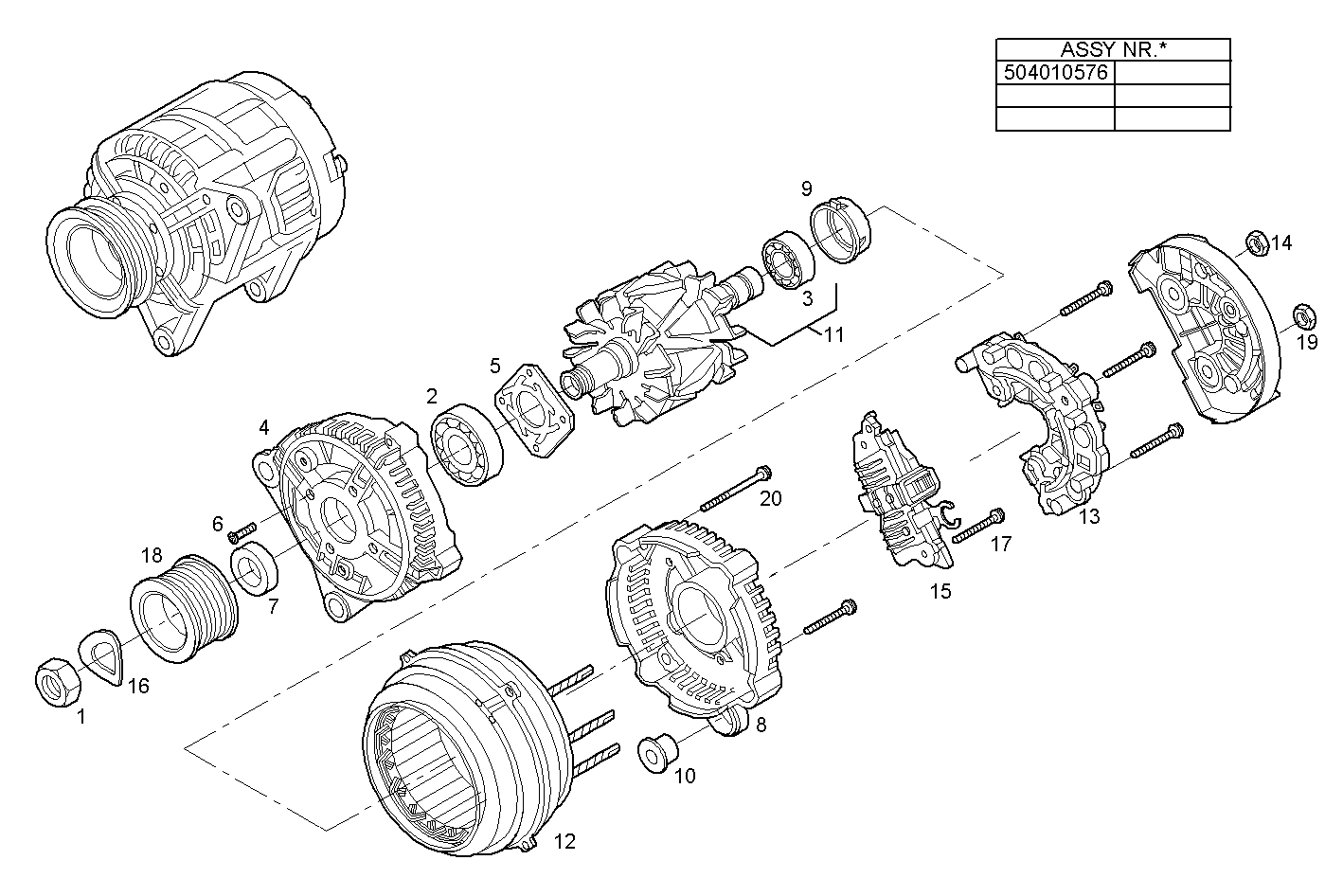

GENERATOR (COMPONENTS)
GENEF200E.A71M — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 1113178 | NUT NUT | 1 | |
| 2 | 2991636 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 3 | 2991637 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 4 | 42533803 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 5 | 42531218 | PLATE PLATE | 1 | |
| 6 | 42533804 | C'SUNK SCREW C'SUNK SCREW | 4 | |
| 7 | 42533805 | SPACING BAR SPACING BAR | 1 | |
| 8 | 42533806 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 9 | 42471431 | RING RING | 1 | |
| 10 | 42471432 | BUSH BUSH | 2 | |
| 11 | 42533809 | GENERATOR ROTOR GENERATOR ROTOR | 1 | |
| 12 | 42533810 | GENERATOR STATOR GENERATOR STATOR | 1 | |
| 13 | 8094567 | RECTIFIER BRIDGE RECTIFIER BRIDGE | 1 | |
| 14 | 42533817 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 42534878 | VOLTAGE REGULATOR VOLTAGE REGULATOR | 1 | |
| 16 | 42531183 | SPRING WASHER SPRING WASHER | 1 | |
| 17 | 42536304 | SCREW SCREW | 2 | |
| 18 | 42535631 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 19 | 42533818 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 42533819 | SCREW SCREW | 4 |
