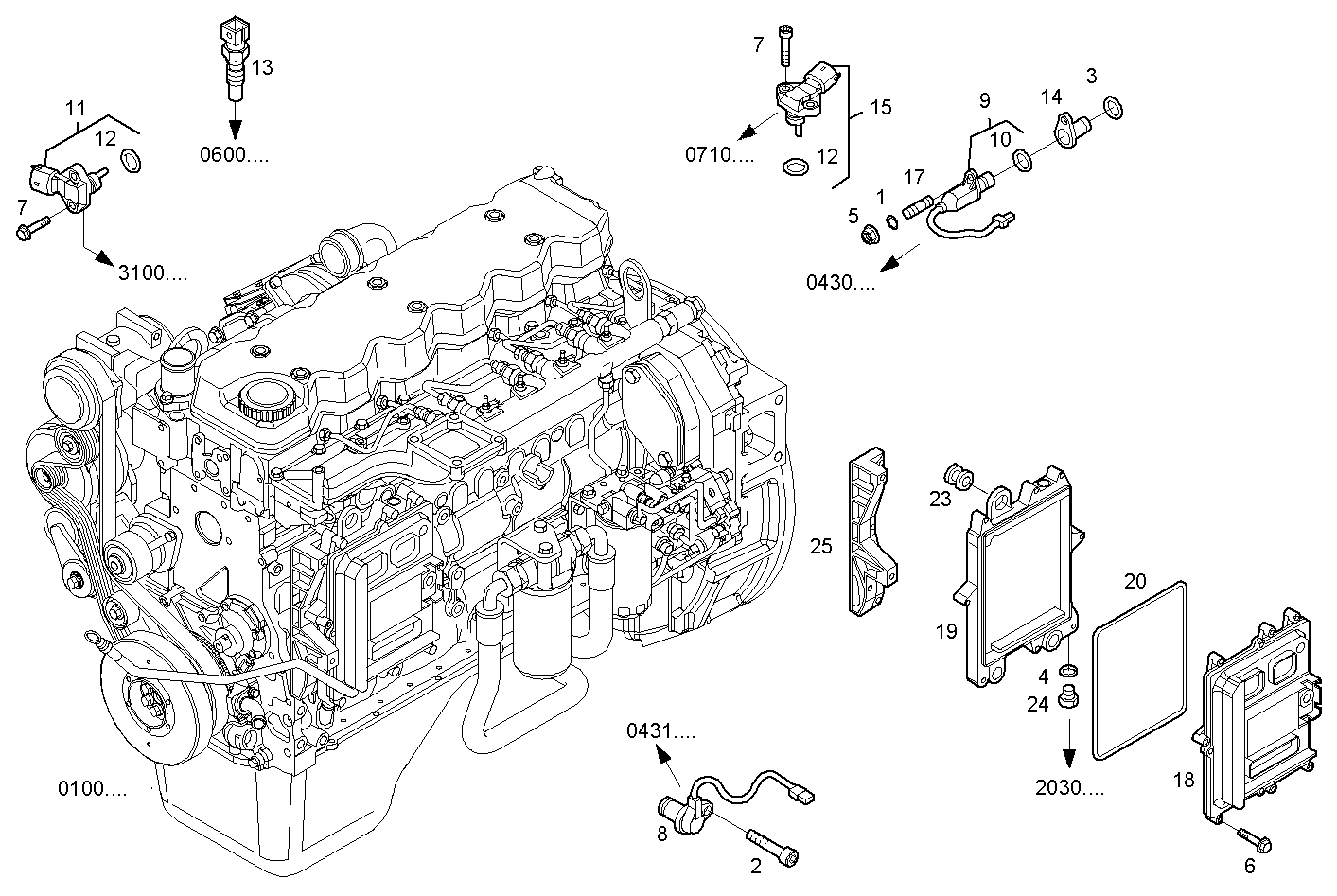

ELECTRONIC CONTROL UNIT
GENEF200E.A72M — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4899124 | WASHER WASHER | 2 | |
| 2 | 4899082 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 3 | |
| 3 | 17278881 | O-RING O-RING | 1 | |
| 4 | 4891385 | WASHER WASHER | 2 | |
| 5 | 17044621 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 16586024 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 7 | 4899110 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 4890189 | SENSOR SENSOR | 1 | |
| 9 | 4890190 | SENSOR SENSOR | 1 | |
| 10 | 17278481 | O-RING O-RING | 1 | |
| 11 | 4890193 | SENSOR SENSOR | 1 | |
| 12 | 4895477 | O-RING O-RING | 2 | |
| 13 | 4897224 | SENSOR SENSOR | 1 | |
| 14 | 4892255 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 4893924 | SENSOR SENSOR | 1 | |
| 17 | 4895157 | STUD STUD | 1 | |
| 18 | 8093993 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 | |
| 19 | 4897682 | SUPPORT SUPPORT | 1 | |
| 20 | 4896811 | GASKET GASKET | 1 | |
| 23 | 4899791 | RUBBER PAD RUBBER PAD | 3 | |
| 24 | 4890964 | THREADED UNION THREADED UNION | 1 | |
| 25 | 4897685 | BRACKET BRACKET | 1 |
