STARTER BATTERY
GENEF200E.R980 — NEF 6 electron.

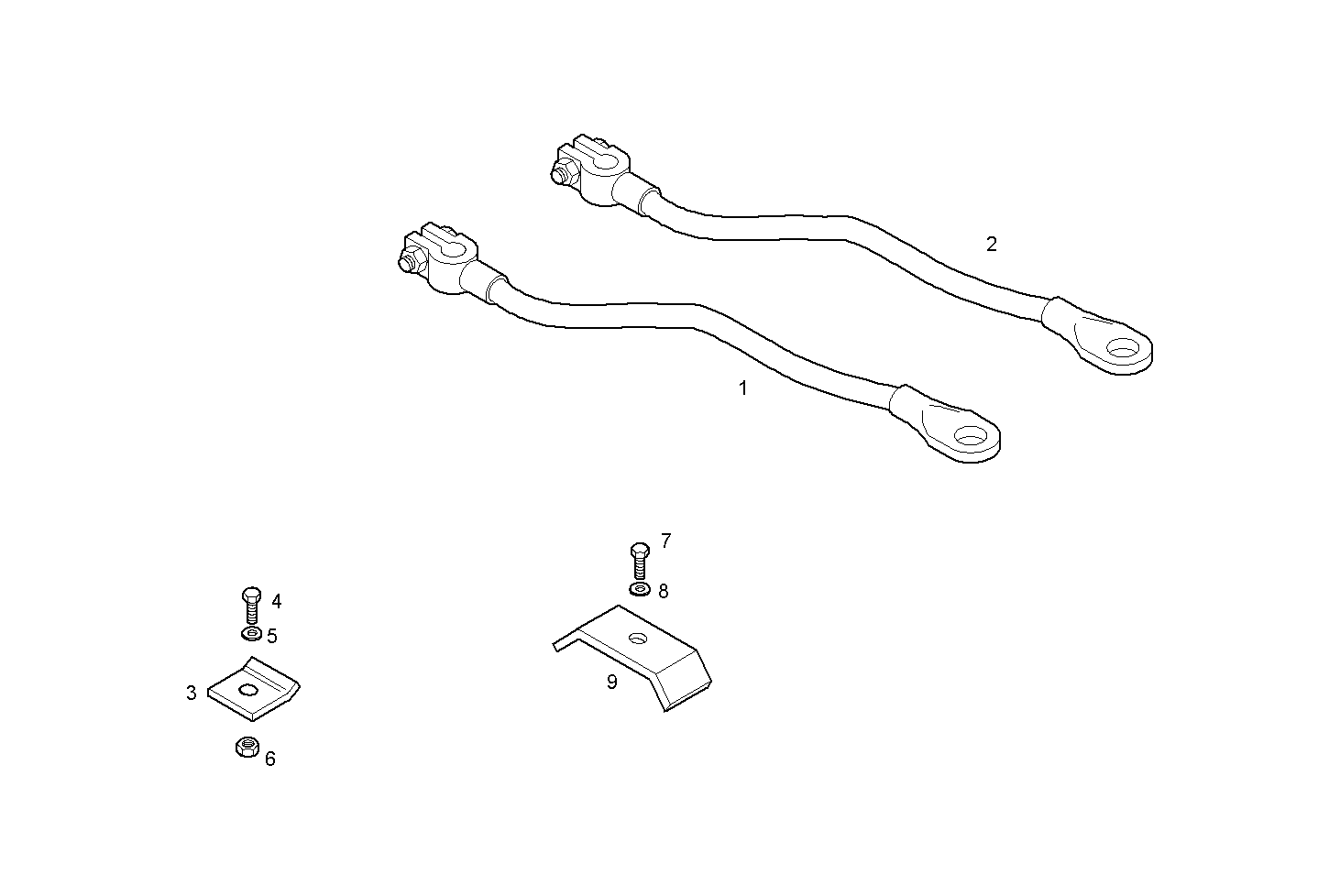

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 503110871 | WIRE/CABLE WIRE/CABLE | 1 | |
| 2 | 4930995 | WIRE/CABLE WIRE/CABLE | 1 | |
| 3 | 503110903 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 4 | 16605424 | SCREW SCREW | 2 | |
| 5 | 17089574 | WASHER WASHER | 2 | |
| 6 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 16607624 | SCREW SCREW | 1 | |
| 8 | 17090474 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 503111906 | FASTENING BRACKET FASTENING BRACKET | 1 |
