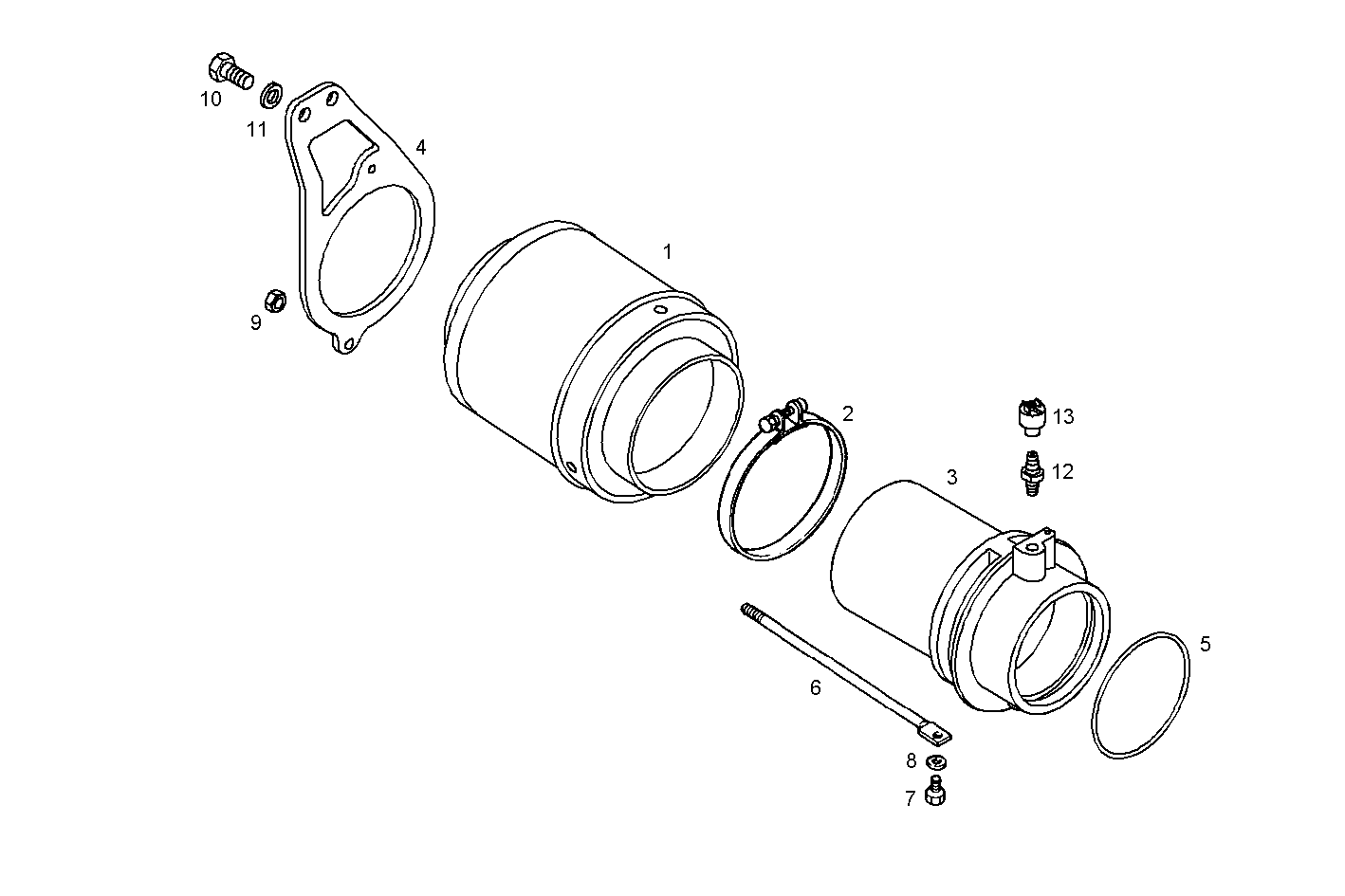

AIR CLEANER
N60ENTM37.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017271 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8032358 | CLIP CLIP | 1 | |
| 3 | 8030923 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 4 | 8031905 | RETAINER RETAINER | 1 | |
| 5 | 17291381 | O-RING O-RING | 1 | |
| 6 | 8031906 | TIE ROD TIE ROD | 2 | |
| 7 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17088674 | WASHER WASHER | 2 | |
| 9 | 17967521 | NUT NUT | 2 | |
| 10 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 |
