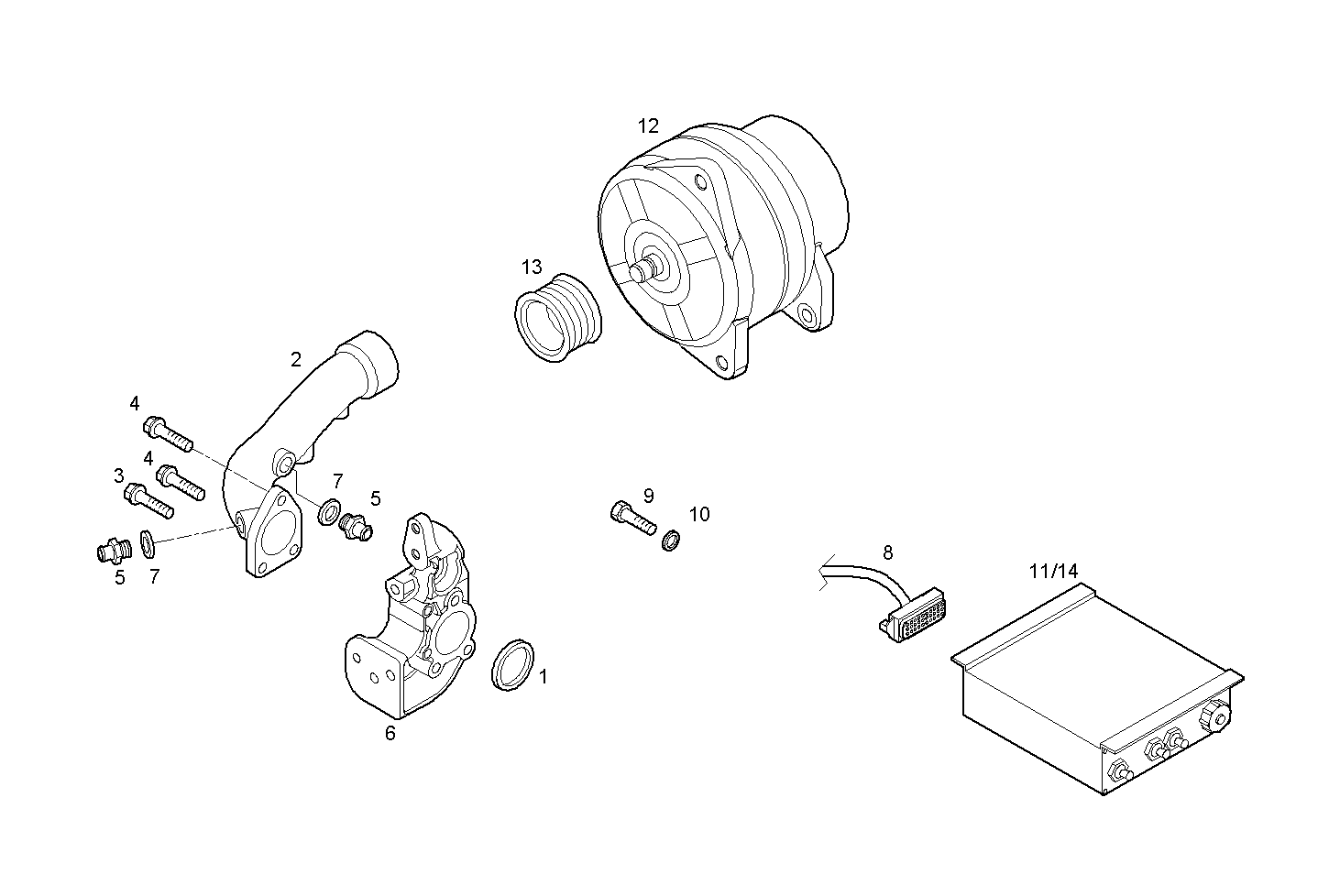

SELF-REGULATED ALTERNATOR
N60ENTM37.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504062710 | WASHER WASHER | 2 | |
| 2 | 8033685 | WATER PIPE WATER PIPE | 1 | |
| 3 | 16592925 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 4 | 16599224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 8024797 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 8036563 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 99434480 | SEAL GASKET SEAL GASKET | 2 | |
| 8 | 8036735 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17089574 | WASHER WASHER | 1 | |
| 11 | 8035891 | SWITCH PANEL SWITCH PANEL | 1 | |
| 12 | 8036232 | ALTERNATOR ALTERNATOR | 1 | |
| 13 | 8036600 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 14 | 8041353 | SWITCH PANEL SWITCH PANEL | 1 |
