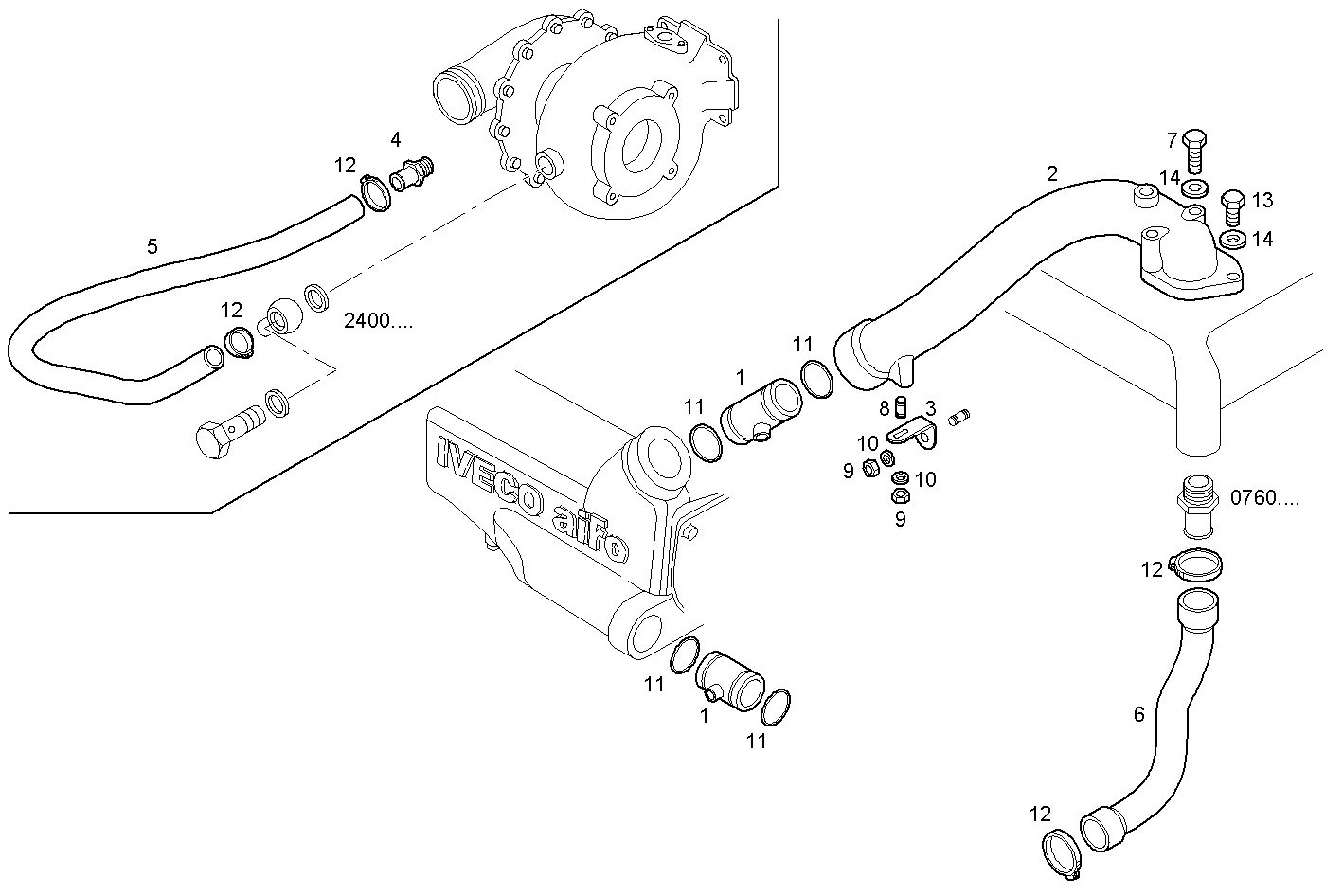

WATER LINES
N60ENTM37.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018308 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 2 | 8031802 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8031803 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 4 | 8032095 | THREADED UNION THREADED UNION | 1 | |
| 5 | 8033518 | WATER HOSE WATER HOSE | 1 | |
| 6 | 8033541 | WATER HOSE WATER HOSE | 1 | |
| 7 | 16604724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 16729224 | STUD STUD | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 17088374 | WASHER WASHER | 2 | |
| 11 | 17289681 | O-RING O-RING | 4 | |
| 12 | 18088593 | CLIP CLIP | 4 | |
| 13 | 10902633 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17094724 | WASHER WASHER | 3 |
