Konrad
N60ENTM40.10 — NEF 6 electron.

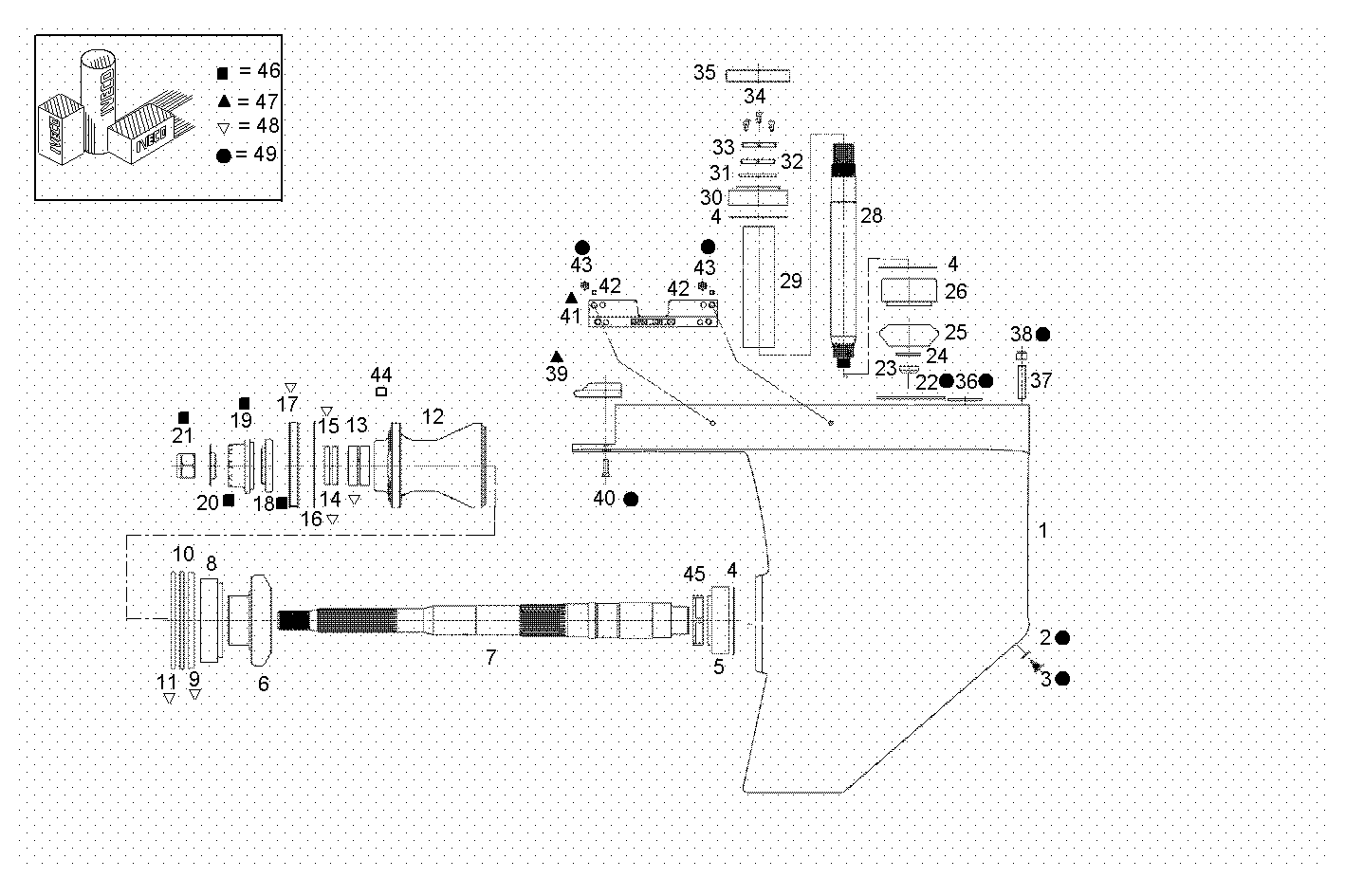

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8095666 | SUPPORT SUPPORT | 1 | |
| 2 | 8095577 | WASHER WASHER | 1 | |
| 3 | 8095665 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 8095664 | SET OF SHIMS SET OF SHIMS | 3 | |
| 5 | 8095663 | DRIVE BEARING DRIVE BEARING | 2 | |
| 6 | 8095662 | GEAR GEAR | 1 | |
| 7 | 8095661 | JOINT SHAFT JOINT SHAFT | 1 | |
| 8 | 8095573 | DRIVE BEARING DRIVE BEARING | 1 | |
| 9 | 8095660 | CENTERING RING CENTERING RING | 1 | |
| 10 | 8095659 | WASHER WASHER | 1 | |
| 11 | 8095658 | O-RING O-RING | 1 | |
| 12 | 8095657 | HUB HUB | 1 | |
| 13 | 8095656 | DRIVE BEARING DRIVE BEARING | 1 | |
| 14 | 8095655 | WASHER WASHER | 1 | |
| 15 | 8095654 | WASHER WASHER | 1 | |
| 16 | 8095653 | WASHER WASHER | 1 | |
| 17 | 8095652 | COVER COVER | 1 | |
| 18 | 8095651 | SPACING BAR SPACING BAR | 1 | |
| 19 | 8095650 | SPACING BAR SPACING BAR | 1 | |
| 20 | 8095649 | WASHER WASHER | 1 | |
| 21 | 8095648 | NUT NUT | 1 | |
| 22 | 8095647 | O-RING O-RING | 1 | |
| 23 | 8095646 | NUT NUT | 1 | |
| 24 | 8095645 | WASHER WASHER | 1 | |
| 25 | 8095644 | GEAR GEAR | 1 | |
| 26 | 8095643 | DRIVE BEARING DRIVE BEARING | 1 | |
| 28 | 8095642 | JOINT SHAFT JOINT SHAFT | 1 | |
| 29 | 8095641 | SPACING BAR SPACING BAR | 1 | |
| 30 | 8095663 | DRIVE BEARING DRIVE BEARING | 1 | |
| 31 | 8095640 | WASHER WASHER | 1 | |
| 32 | 8095639 | NUT NUT | 1 | |
| 33 | 8095638 | NUT NUT | 1 | |
| 34 | 8095593 | SCREW SCREW | 6 | |
| 35 | 8095637 | SPACING BAR SPACING BAR | 1 | |
| 36 | 8095636 | O-RING O-RING | 1 | |
| 37 | 8095635 | STUD STUD | 1 | |
| 38 | 8095596 | NUT NUT | 1 | |
| 39 | 8095634 | PLATE PLATE | 1 | |
| 40 | 8095633 | SCREW SCREW | 2 | |
| 41 | 8095632 | PLATE PLATE | 2 | |
| 42 | 8095513 | STUD STUD | 2 | |
| 43 | 8095510 | NUT NUT | 4 | |
| 44 | 8095631 | KEY KEY | 1 | |
| 45 | 8095630 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 46 | 8095667 | KIT KIT | 1 | |
| 47 | 8095670 | KIT KIT | 1 | |
| 48 | 8095671 | KIT KIT | 1 | |
| 49 | 8095672 | KIT KIT | 1 |
