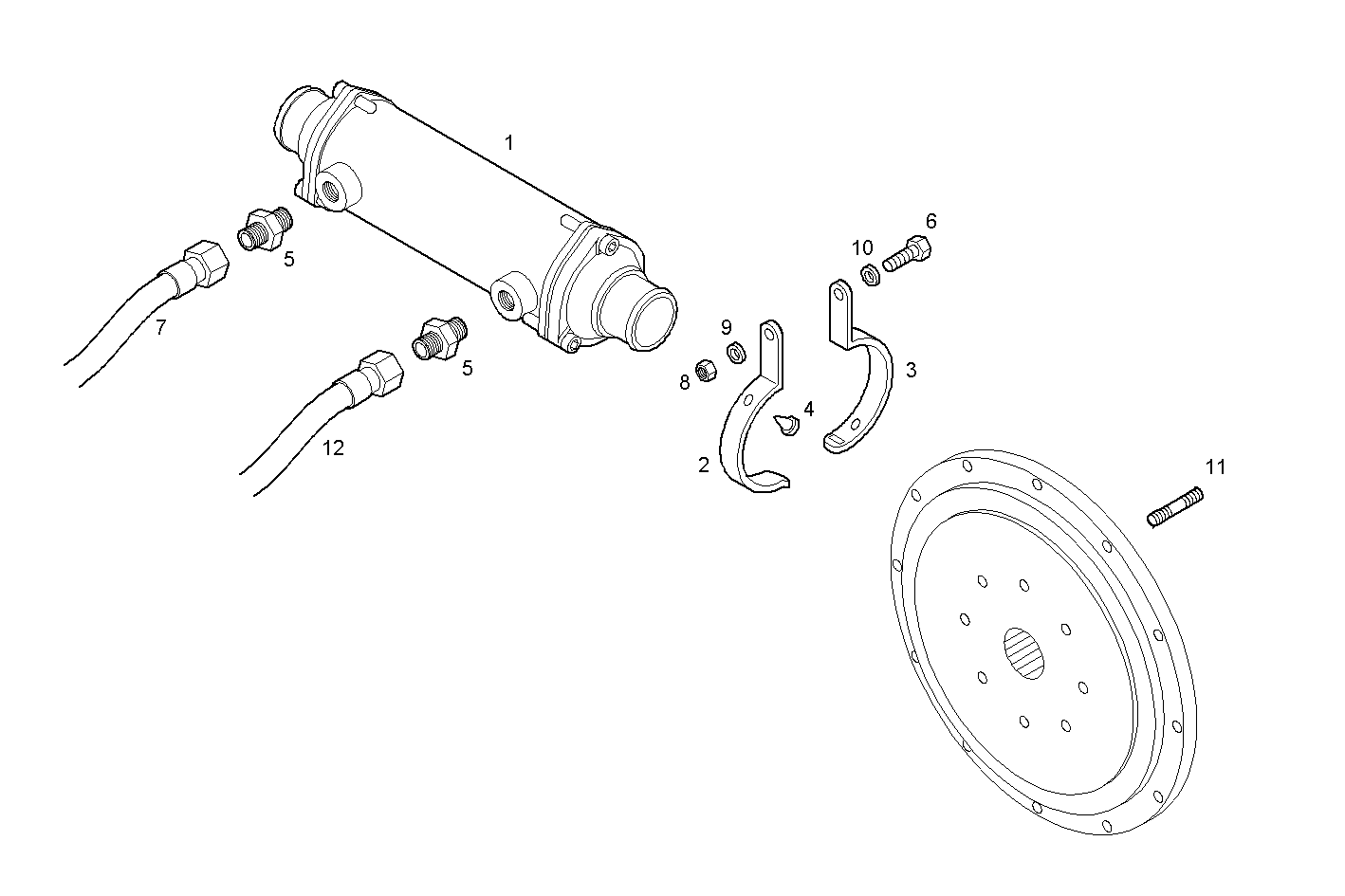

MARINE GEAR TWIN DISC MG 5061 SC
N60ENTM40.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034070 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 2 | 8034488 | RETAINER RETAINER | 2 | |
| 3 | 8034489 | RETAINER RETAINER | 2 | |
| 4 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 5 | 4935465 | PIPE SOCKET PIPE SOCKET | 4 | |
| 6 | 16607625 | SCREW SCREW | 2 | |
| 7 | 4935778 | OIL HOSE OIL HOSE | 1 | |
| 8 | 17038131 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17095004 | WASHER WASHER | 2 | |
| 11 | 17368024 | STUD STUD | 10 | |
| 12 | 4935779 | HOSE HOSE | 1 |
