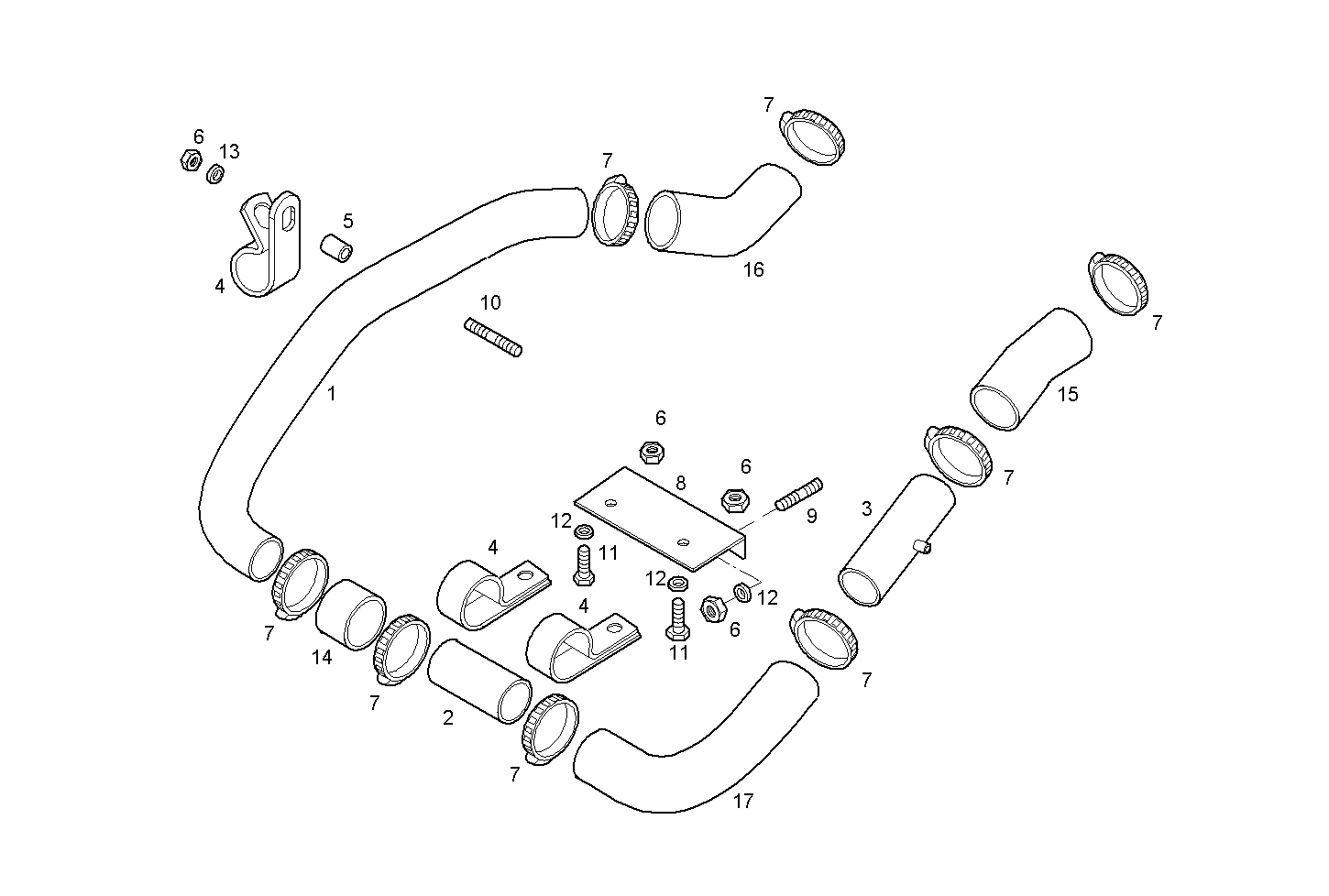

SEA WATER LINES
N60ENTM40.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034458 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 8034549 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 3 | 8034459 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 4 | 8034457 | CLIP CLIP | 3 | |
| 5 | 8015577 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 5 | |
| 7 | 17764893 | CLIP CLIP | 8 | |
| 8 | 8034494 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 17368024 | STUD STUD | 2 | |
| 10 | 16731224 | STUD STUD | 1 | |
| 11 | 16607734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 13 | 17095014 | WASHER WASHER | 2 | |
| 14 | 4863960 | WATER HOSE WATER HOSE | 1 | |
| 15 | 8106646 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 8110207 | WATER HOSE WATER HOSE | 1 | |
| 17 | 98433319 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
