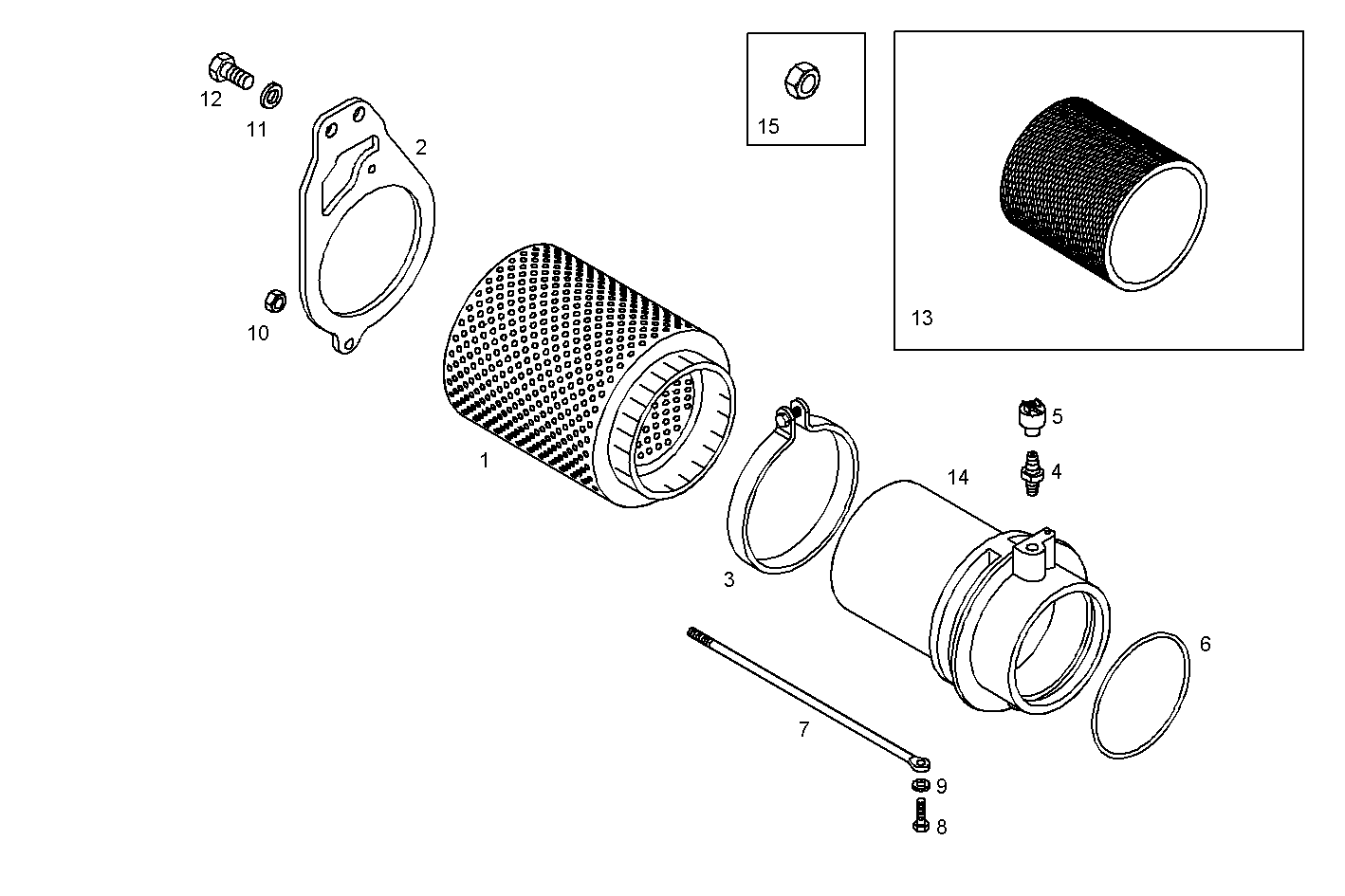

AIR CLEANER
N60ENTM40.10A001 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039404 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8044582 | RETAINER RETAINER | 1 | |
| 3 | 8032358 | CLIP CLIP | 1 | |
| 4 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 6 | 17291481 | O-RING O-RING | 1 | |
| 7 | 8031906 | TIE ROD TIE ROD | 1 | |
| 8 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 17967521 | NUT NUT | 2 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 8039624 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 14 | 8047425 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 15 | 16979331 | HEXAGON NUT HEXAGON NUT | 2 |
