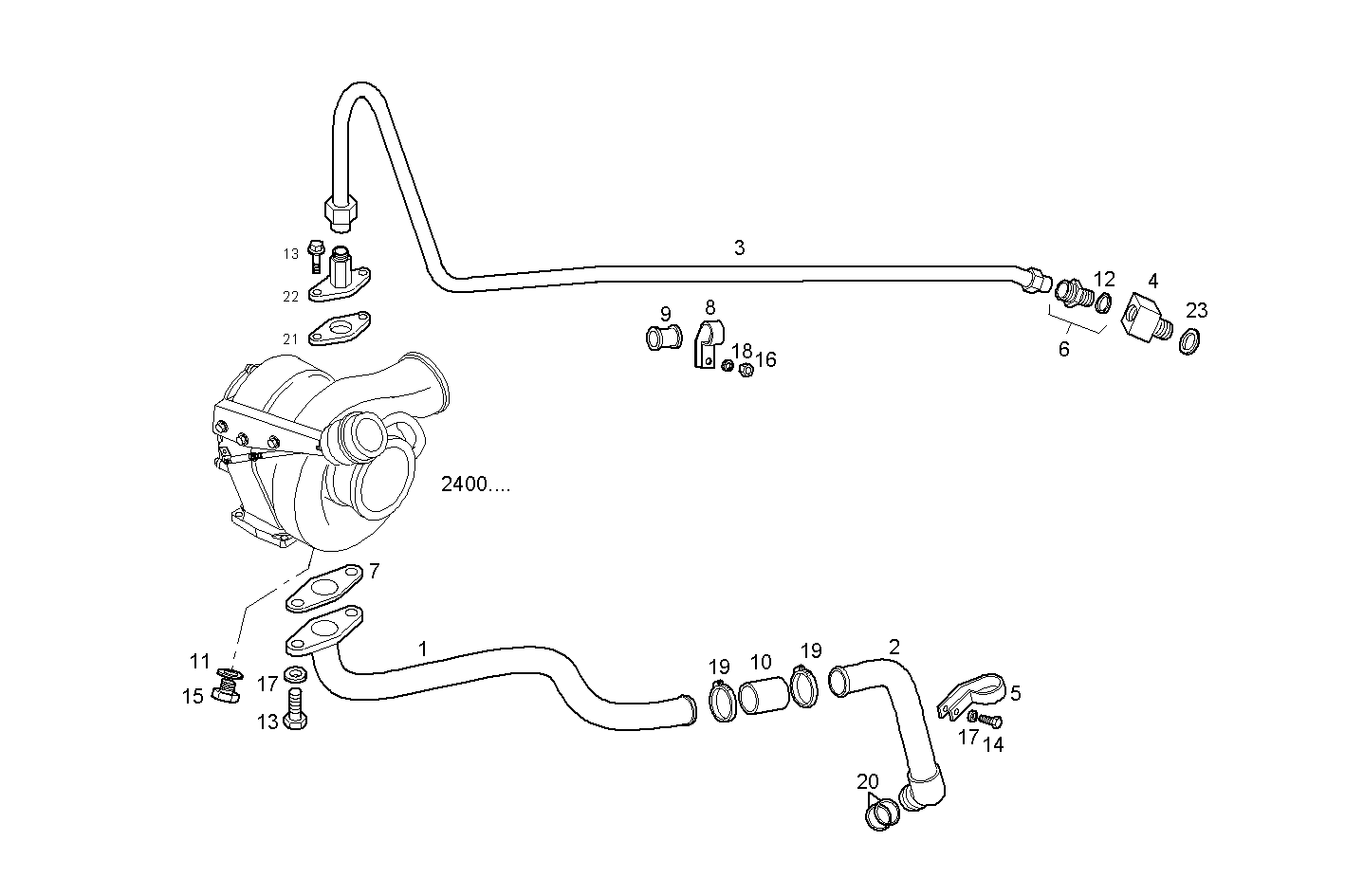

TURBOCHARGER OIL LINES
N60ENTM40.10A001 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8032174 | OIL LINE OIL LINE | 1 | |
| 2 | 8032176 | OIL LINE OIL LINE | 1 | |
| 3 | 8047427 | OIL LINE OIL LINE | 1 | |
| 4 | 4882217 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8032210 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 41031567 | THREADED UNION THREADED UNION | 1 | |
| 7 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 8 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 10 | 98420478 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 1118693 | WASHER WASHER | 1 | |
| 13 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 16605424 | SCREW SCREW | 1 | |
| 15 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 17037921 | NUT NUT | 1 | |
| 17 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 18 | 17094914 | WASHER WASHER | 1 | |
| 19 | 17764593 | CLIP CLIP | 2 | |
| 20 | 17281881 | O-RING O-RING | 2 | |
| 21 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 22 | 8047428 | FLANGE FLANGE | 1 | |
| 23 | 99489020 | SEAL GASKET SEAL GASKET | 1 |
