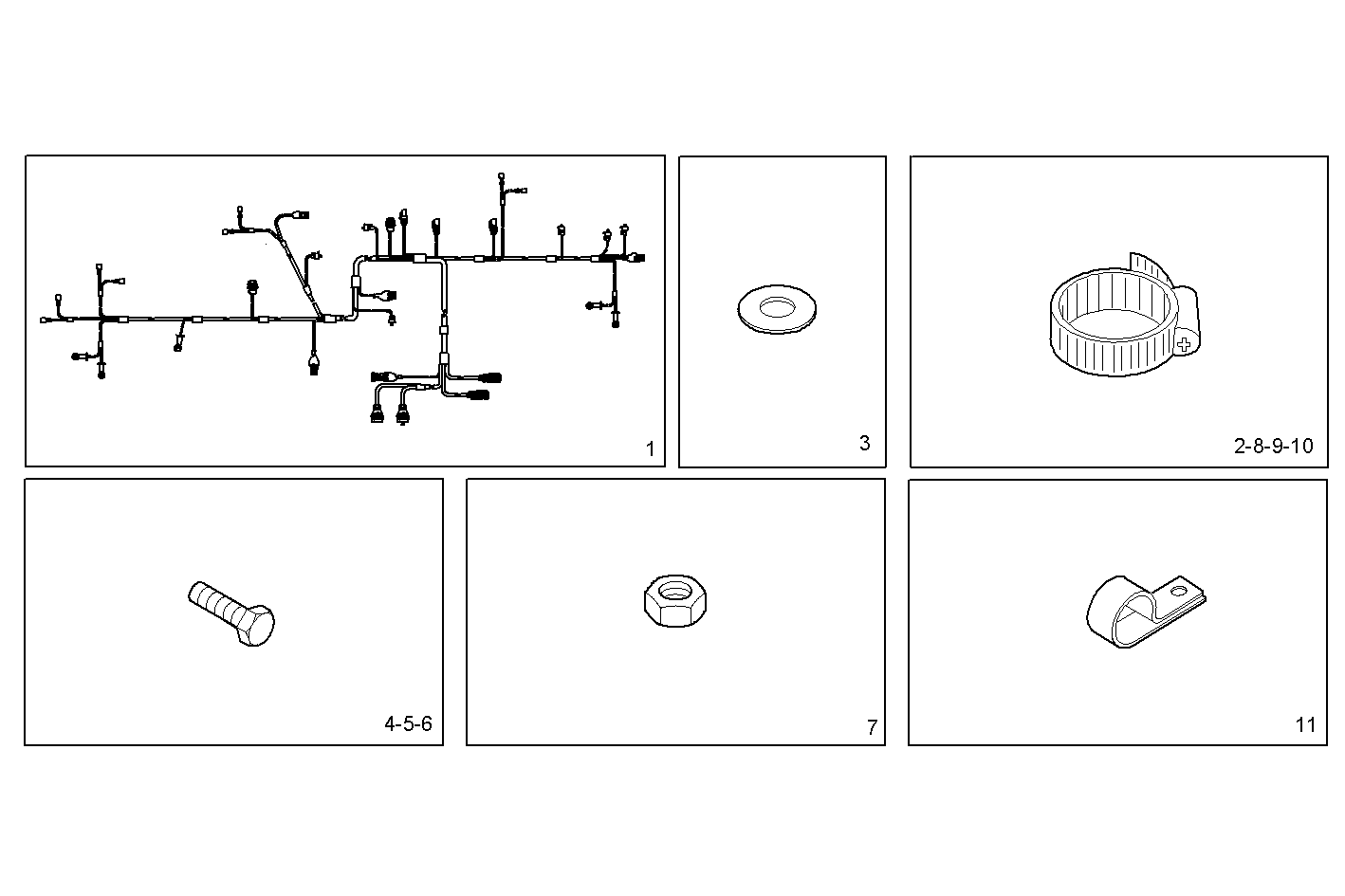

ENGINE CABLE
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8141170 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 2 | 10450090 | PIPE CLIP PIPE CLIP | 1 | |
| 3 | 17094724 | WASHER WASHER | 5 | |
| 4 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 16605424 | SCREW SCREW | 2 | |
| 7 | 16750125 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 17317190 | PIPE CLIP PIPE CLIP | 1 | |
| 9 | 4936277 | CLIP CLIP | 2 | |
| 10 | 10450590 | PIPE CLIP PIPE CLIP | 1 | |
| 11 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 3 |
