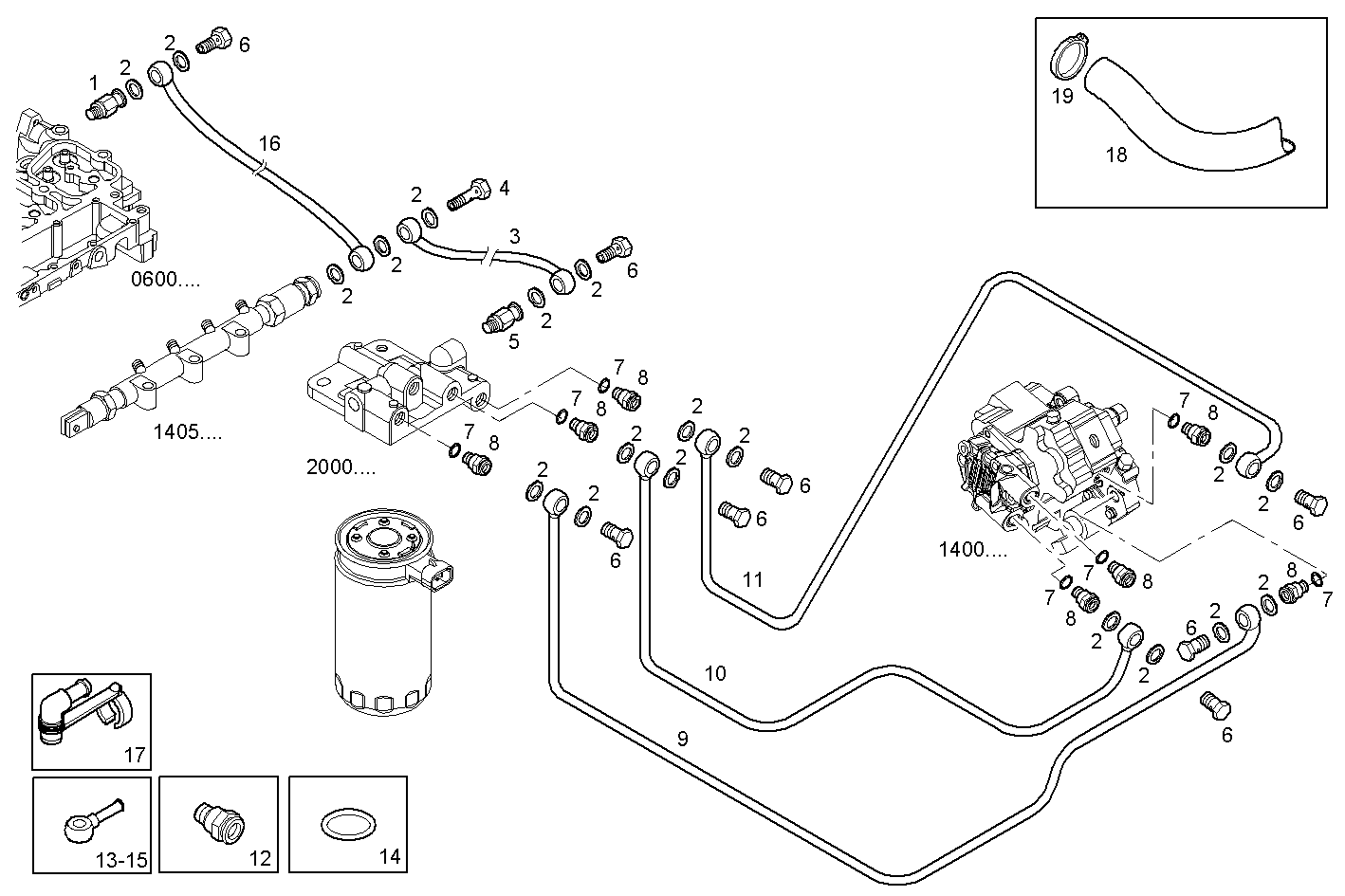

FUEL LINES
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8035490 | CONTROL VALVE CONTROL VALVE | 1 | |
| 2 | 98474306 | WASHER WASHER | 19 | |
| 3 | 8038860 | FUEL LINE FUEL LINE | 1 | |
| 4 | 8016191 | BANJO BOLT BANJO BOLT | 1 | |
| 5 | 8035491 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4864082 | BANJO BOLT BANJO BOLT | 8 | |
| 7 | 98474305 | WASHER WASHER | 8 | |
| 8 | 99476542 | THREADED UNION THREADED UNION | 7 | |
| 9 | 8035633 | FUEL LINE FUEL LINE | 1 | |
| 10 | 8035631 | FUEL LINE FUEL LINE | 1 | |
| 11 | 8035632 | FUEL LINE FUEL LINE | 1 | |
| 12 | 16500114 | THREADED UNION THREADED UNION | 1 | |
| 13 | 98405514 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 17278181 | O-RING O-RING | 1 | |
| 15 | 98404884 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 16 | 8047419 | FUEL LINE FUEL LINE | 1 | |
| 17 | 8034419 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 18 | 17724587 | RUBBER HOSE RUBBER HOSE | 1 | |
| 19 | 18088293 | CLIP CLIP | 2 |
