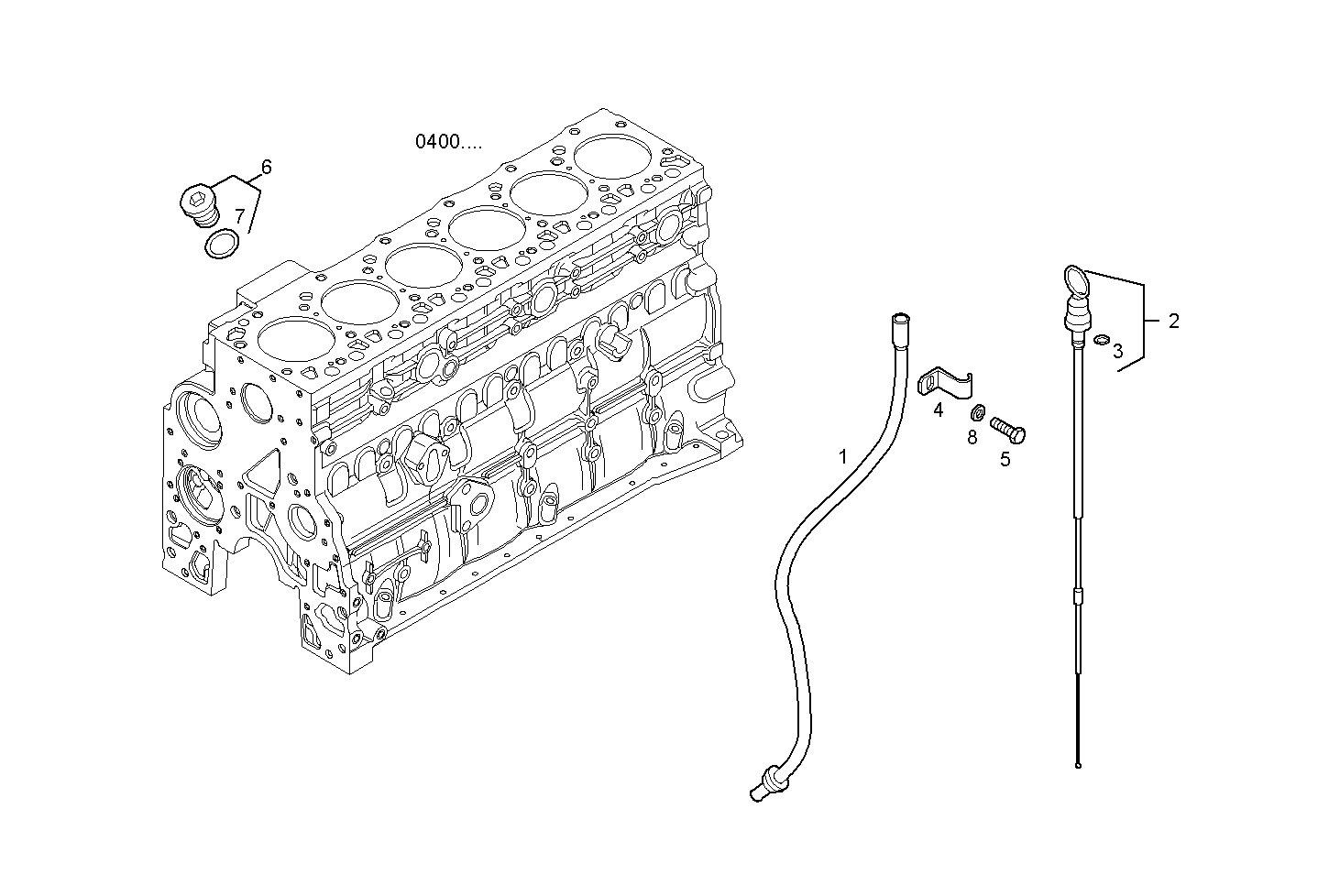

OIL DIPSTICK & FILLER PIPE
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031023 | OIL LEVEL TUBE OIL LEVEL TUBE | 1 | |
| 2 | 8032119 | OIL DIPSTICK OIL DIPSTICK | 1 | |
| 3 | 17277981 | O-RING O-RING | 1 | |
| 4 | 17316690 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 4897330 | PLUG PLUG | 2 | |
| 7 | 4895610 | O-RING O-RING | 2 | |
| 8 | 17089574 | WASHER WASHER | 1 |
