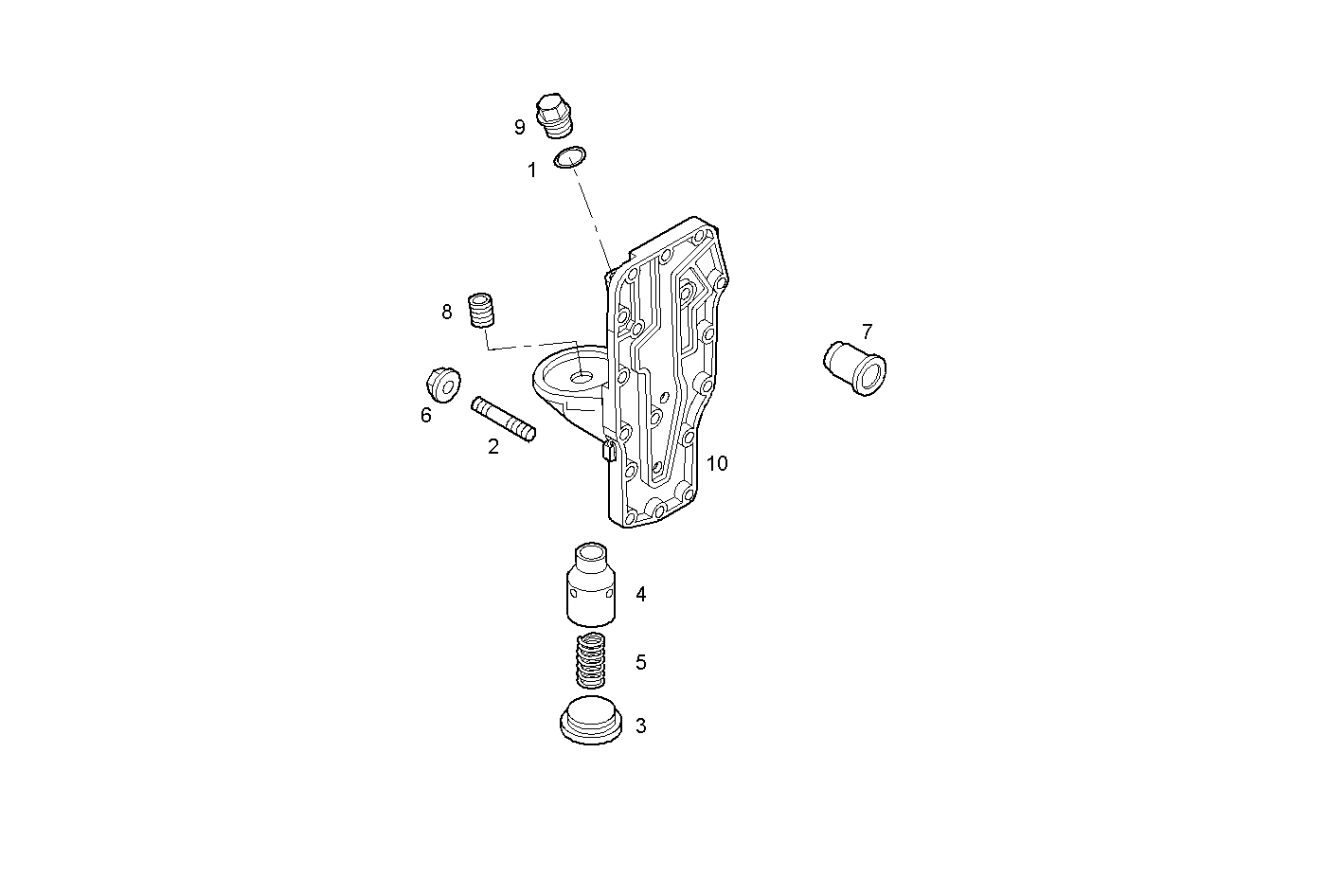

OIL - WATER HEAT EXCHANGER (COMPONENTS)
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4858607 | WASHER WASHER | 1 | |
| 2 | 16744924 | STUD STUD | 2 | |
| 3 | 504096409 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 4896404 | VALVE HOUSING VALVE HOUSING | 1 | |
| 5 | 4895045 | VALVE SPRING VALVE SPRING | 1 | |
| 6 | 17044625 | HEXAGON NUT HEXAGON NUT | 2 | |
| 7 | 4896410 | VALVE VALVE | 1 | |
| 8 | 4893391 | THREADED UNION THREADED UNION | 1 | |
| 9 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 504132143 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 |
