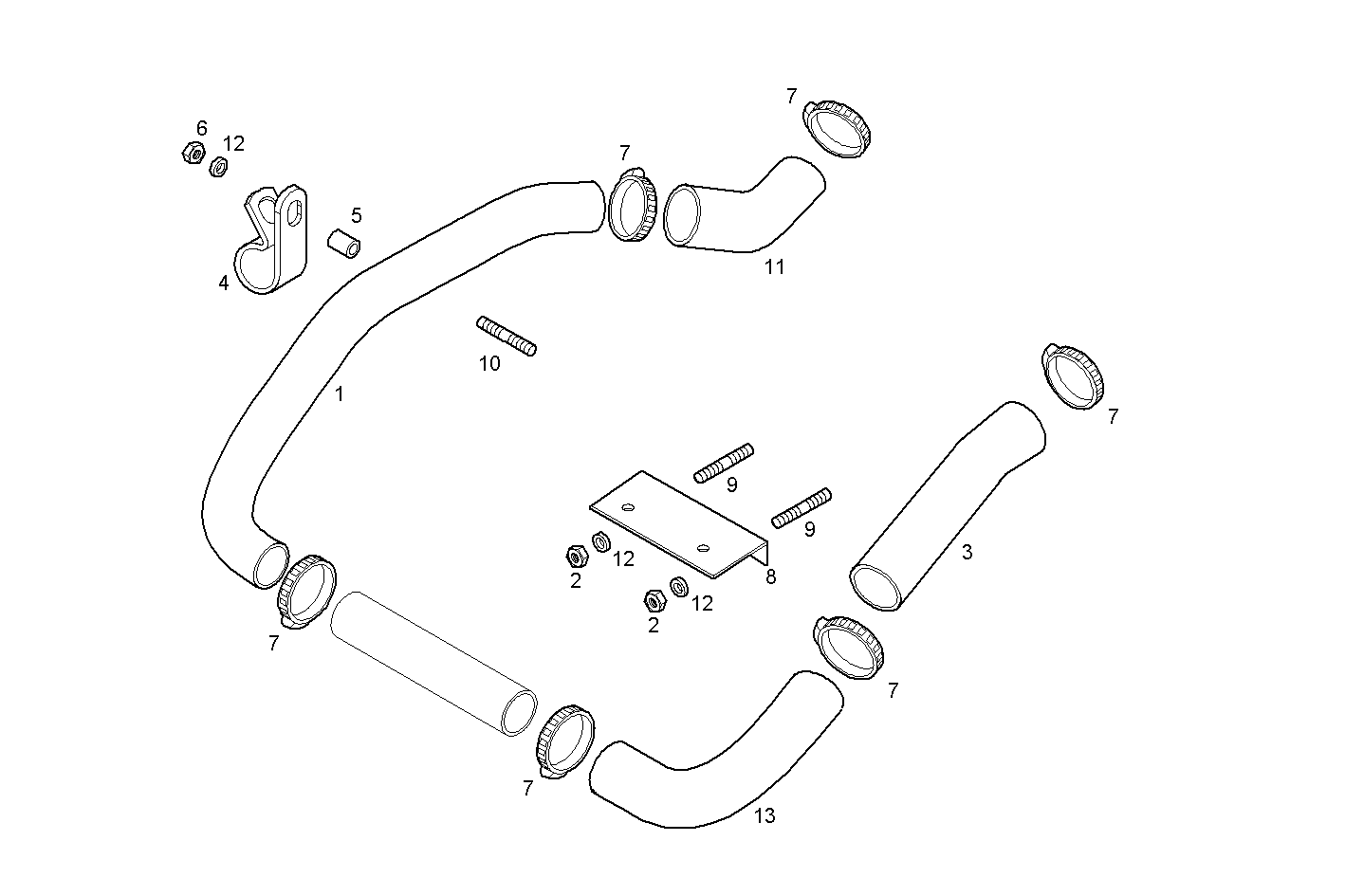

SEA WATER LINES
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034458 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 | |
| 3 | 8043389 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 8034457 | CLIP CLIP | 1 | |
| 5 | 8015577 | SPACING BAR SPACING BAR | 1 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17764893 | CLIP CLIP | 6 | |
| 8 | 8034494 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 17368024 | STUD STUD | 2 | |
| 10 | 16731224 | STUD STUD | 1 | |
| 11 | 8040142 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 13 | 8040155 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
