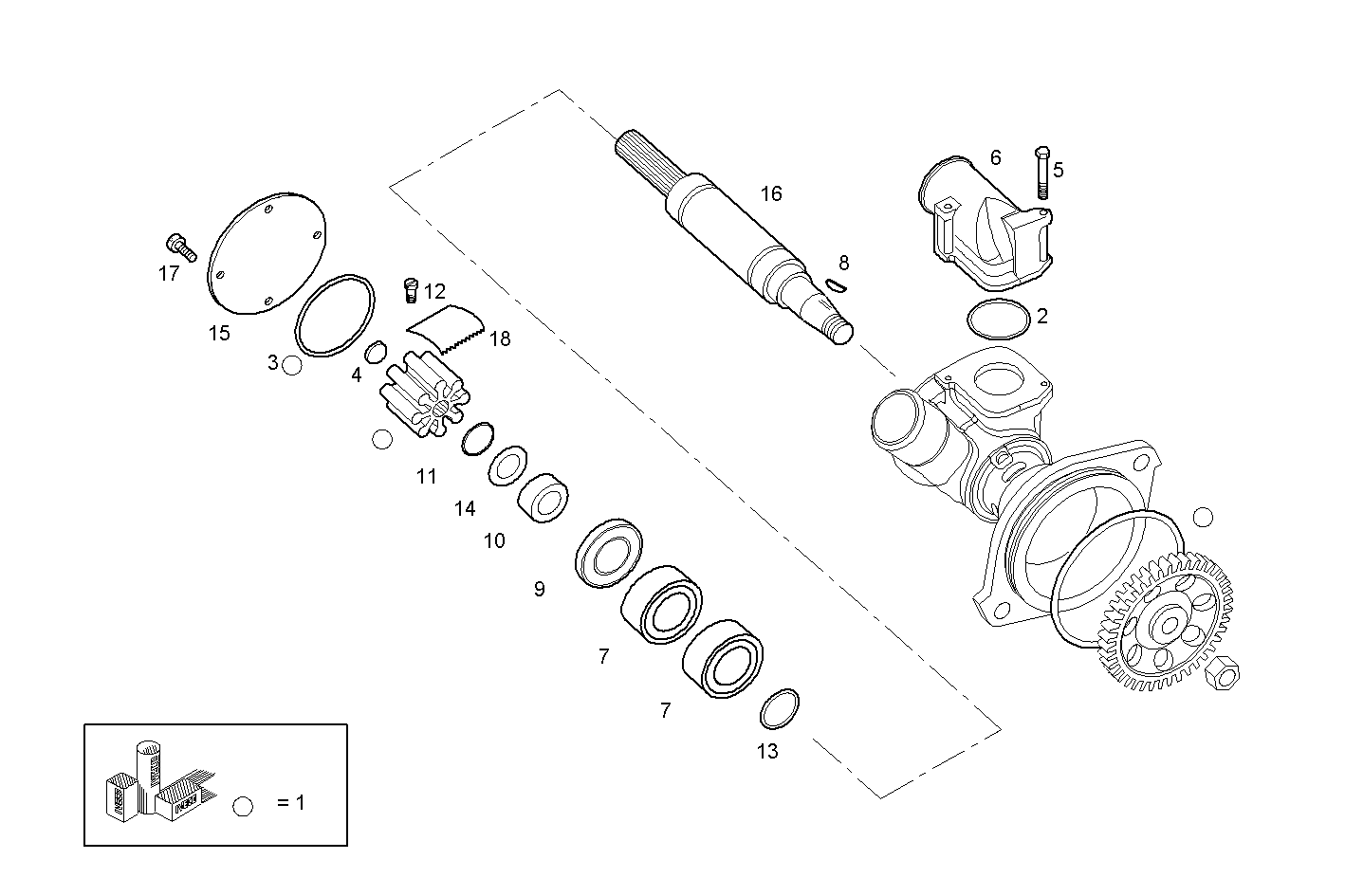

SEA WATER PUMP (COMPONENTS)
N67ENTM45.10 — NEF 6 electron.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8094616 | SEA-WATER PUMP IMPELL.KIT SEA-WATER PUMP IMPELL.KIT | 1 | |
| 2 | 8037361 | O-RING O-RING | 1 | |
| 3 | 8037362 | O-RING O-RING | 1 | |
| 4 | 8037363 | SEAL GASKET SEAL GASKET | 1 | |
| 5 | 8094713 | SCREW SCREW | 2 | |
| 6 | 8094714 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 7 | 8094706 | DRIVE BEARING DRIVE BEARING | 2 | |
| 8 | 8094711 | KEY KEY | 1 | |
| 9 | 8094707 | WASHER WASHER | 1 | |
| 10 | 8094702 | WASHER WASHER | 1 | |
| 11 | 8094698 | CIRCLIP CIRCLIP | 1 | |
| 12 | 8094715 | SCREW SCREW | 1 | |
| 13 | 8094712 | CIRCLIP CIRCLIP | 1 | |
| 14 | 8094701 | WASHER WASHER | 1 | |
| 15 | 8094709 | COVER COVER | 1 | |
| 16 | 8094710 | SHAFT SHAFT | 1 | |
| 17 | 8094708 | SCREW SCREW | 4 | |
| 18 | 8094985 | RETAINING CAM RETAINING CAM | 1 |
