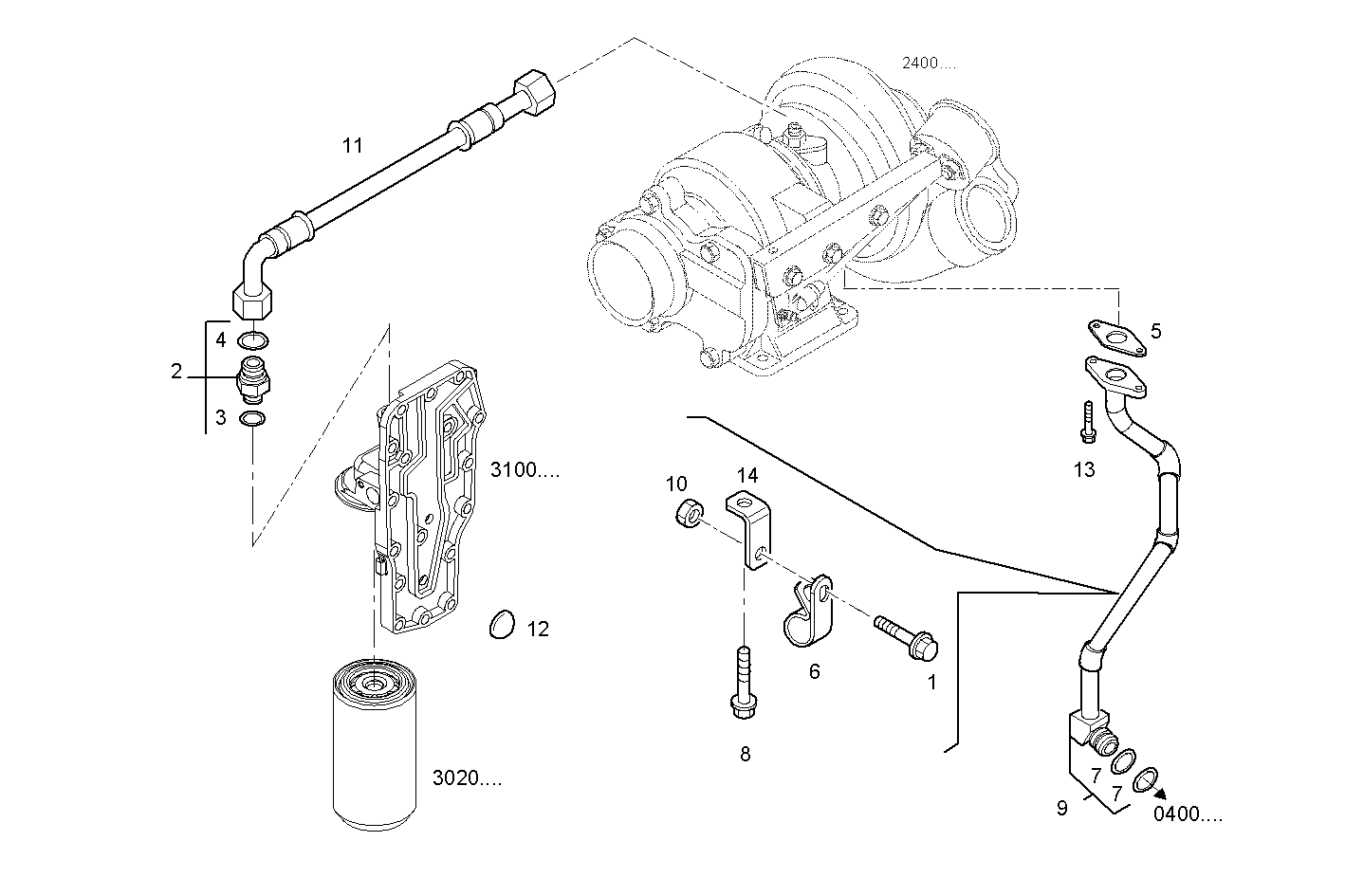

LUBE OIL LINES
F4GE0684C*D608 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 18138325 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 2 | 4895107 | THREADED UNION THREADED UNION | 1 | |
| 3 | 4899107 | O-RING O-RING | 1 | |
| 4 | 4899108 | O-RING O-RING | 1 | |
| 5 | 4891288 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 6 | 4896893 | CLIP CLIP | 1 | |
| 7 | 17281881 | O-RING O-RING | 2 | |
| 8 | 16677735 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 504019911 | OIL LINE OIL LINE | 1 | |
| 10 | 17044921 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 504084095 | OIL LINE OIL LINE | 1 | |
| 12 | 4895089 | PLUG PLUG | 1 | |
| 13 | 4899031 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 98459285 | FASTENING BRACKET FASTENING BRACKET | 1 |
