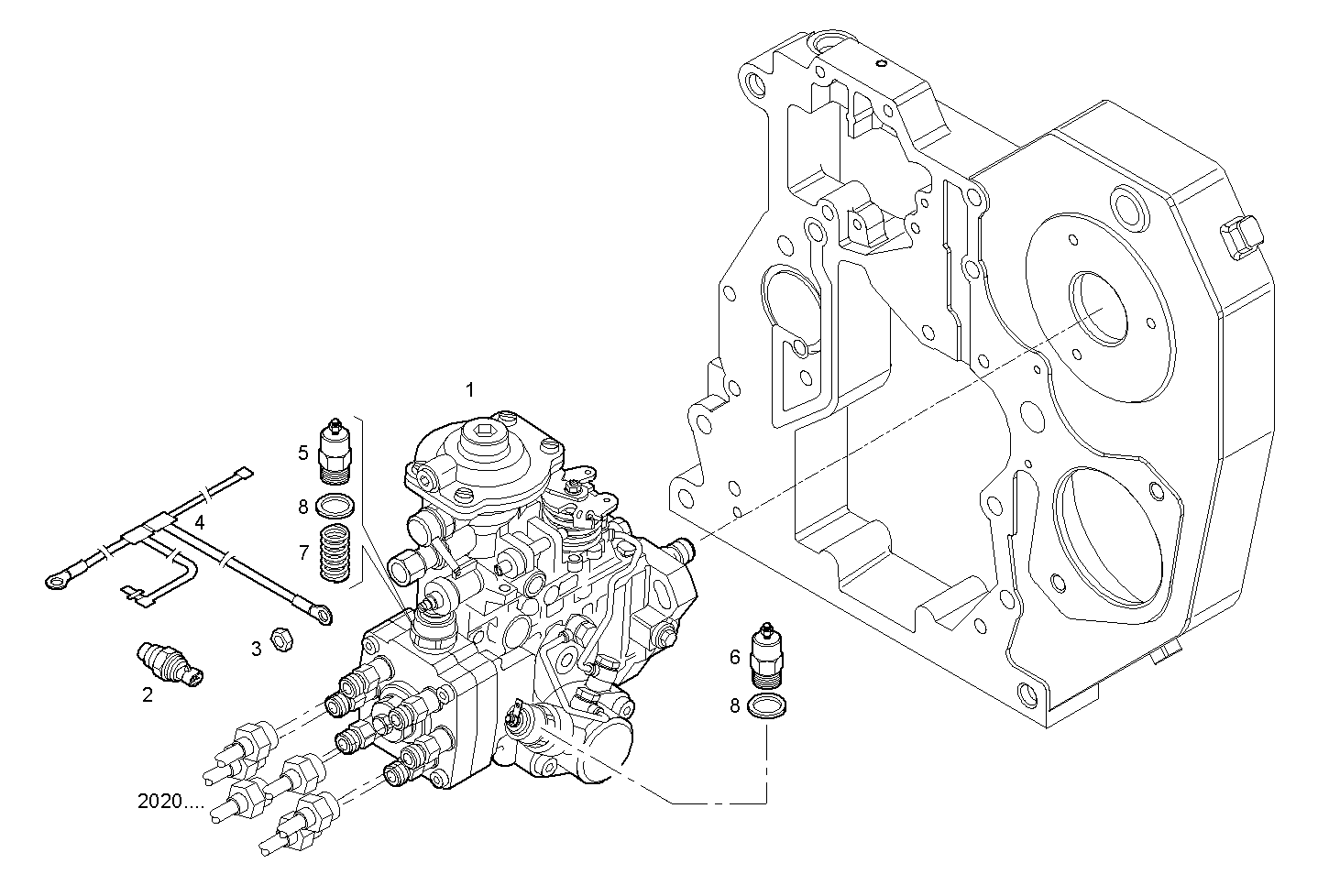

INJECTION PUMP ASSY
F4GE0684G*D602 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504060083 | DISTRIB.INJ.PUMP DISTRIB.INJ.PUMP | 1 | |
| 2 | 504032877 | SENSOR SENSOR | 1 | |
| 3 | 16979231 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 504060728 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 42533181 | ELECTROVALVE ELECTROVALVE | 1 | |
| 6 | 93192974 | MAGNETO MAGNETO | 1 | |
| 7 | 93193371 | SPRING SPRING | 1 | |
| 8 | 9008558 | RUBBER RING RUBBER RING | 2 |
