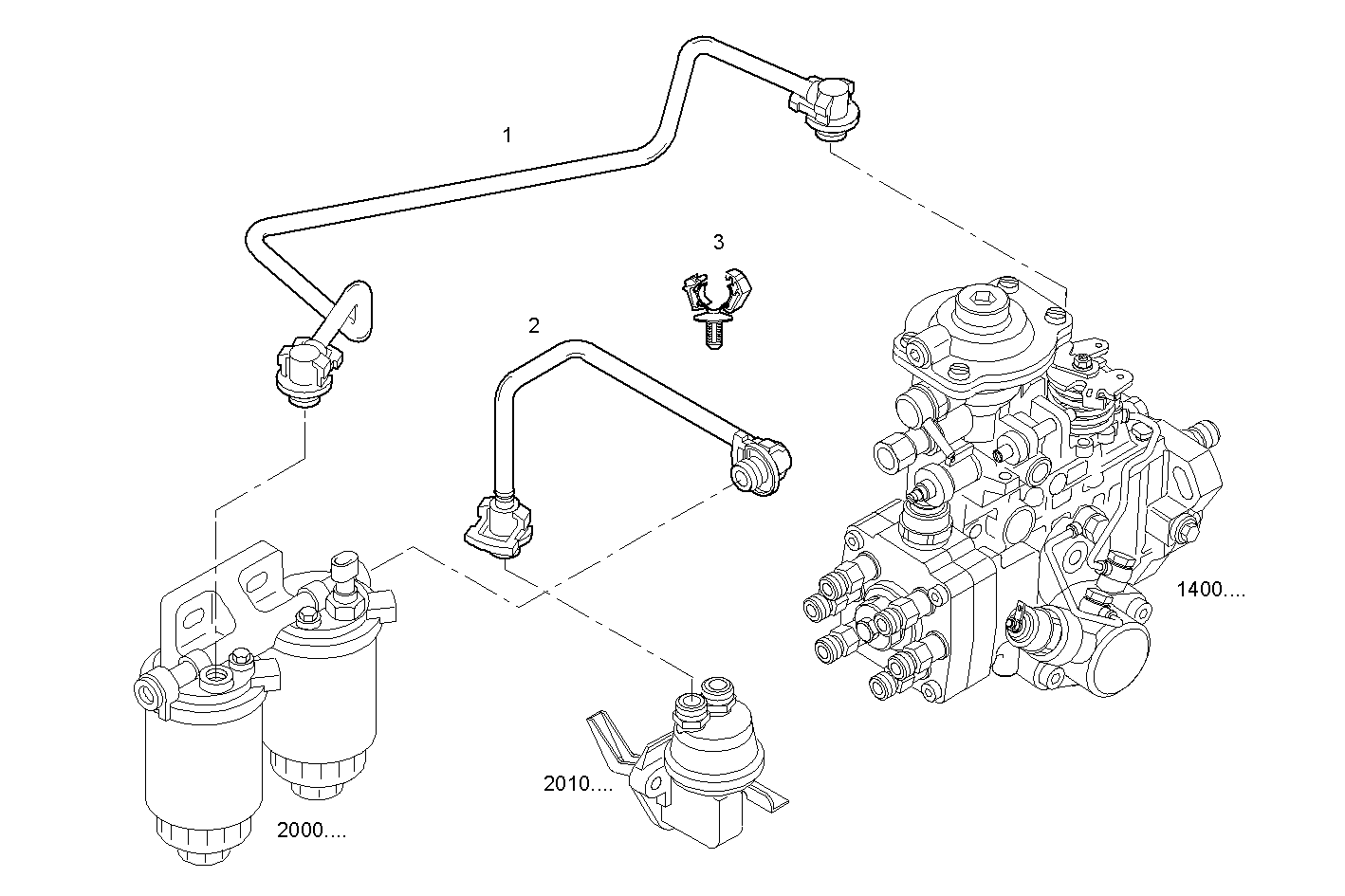

FUEL LINES
N67MNTE20.00A001 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504038515 | FUEL LINE FUEL LINE | 1 | |
| 2 | 504038516 | FUEL LINE FUEL LINE | 1 | |
| 3 | 4893428 | SPRING CLAMP SPRING CLAMP | 2 | |
| 4 | 504065285 | SPRING CLAMP SPRING CLAMP | 1 | |
| 5 | 504065225 | SPRING CLAMP SPRING CLAMP | 1 | |
| 6 | 4894095 | O-RING O-RING | 4 |
