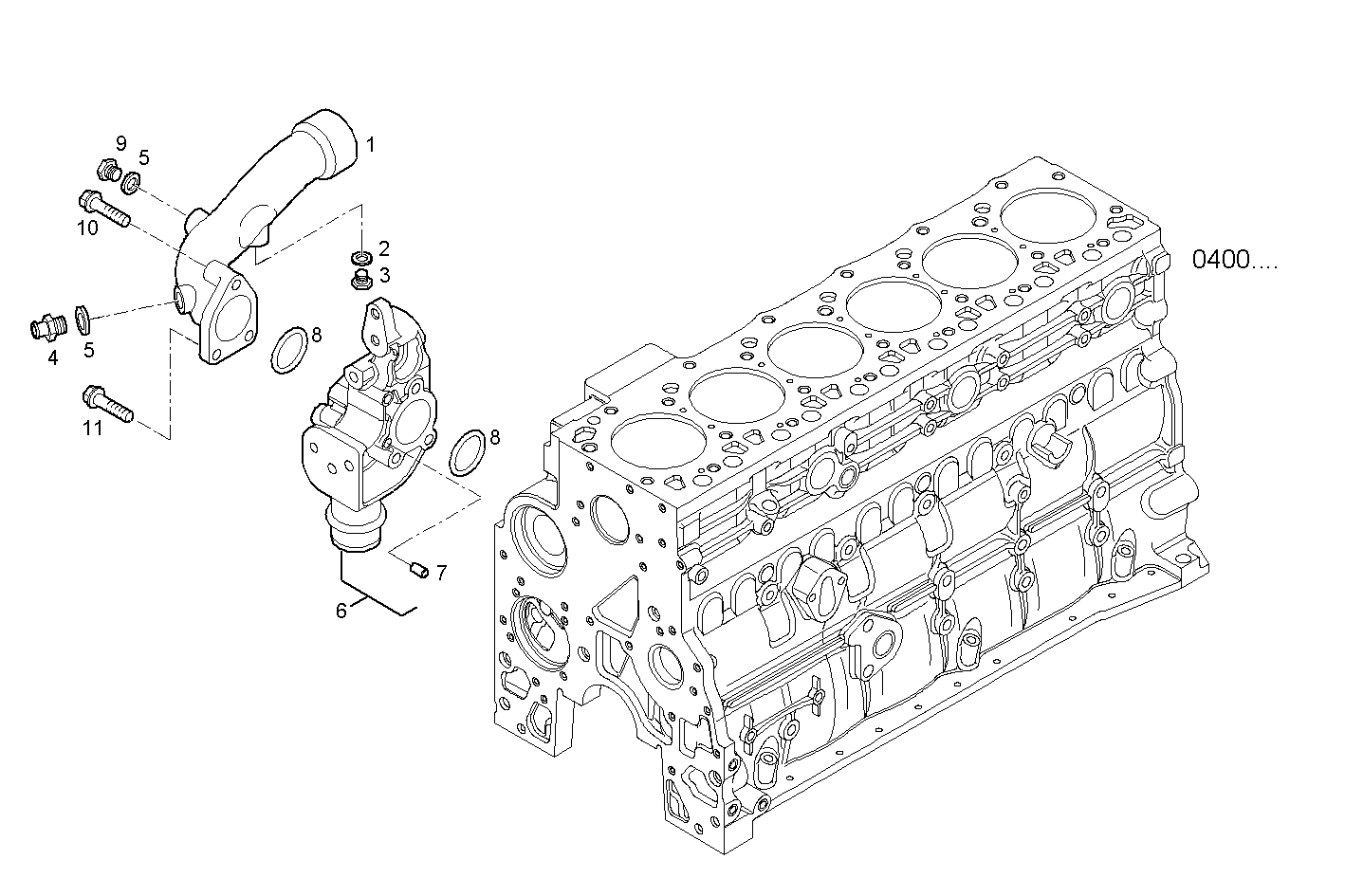

WATER PIPE
N67MNTF40.01A001 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041904 | WATER PIPE WATER PIPE | 1 | |
| 2 | 99489019 | WASHER WASHER | 1 | |
| 3 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 8024797 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 99434480 | SEAL GASKET SEAL GASKET | 2 | |
| 6 | 500387647 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 4895576 | DOWEL PIN DOWEL PIN | 2 | |
| 8 | 504062710 | WASHER WASHER | 2 | |
| 9 | 16993040 | THREADED PLUG THREADED PLUG | 1 | |
| 10 | 16599224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 16592925 | HEXAGON BOLT HEXAGON BOLT | 1 |
