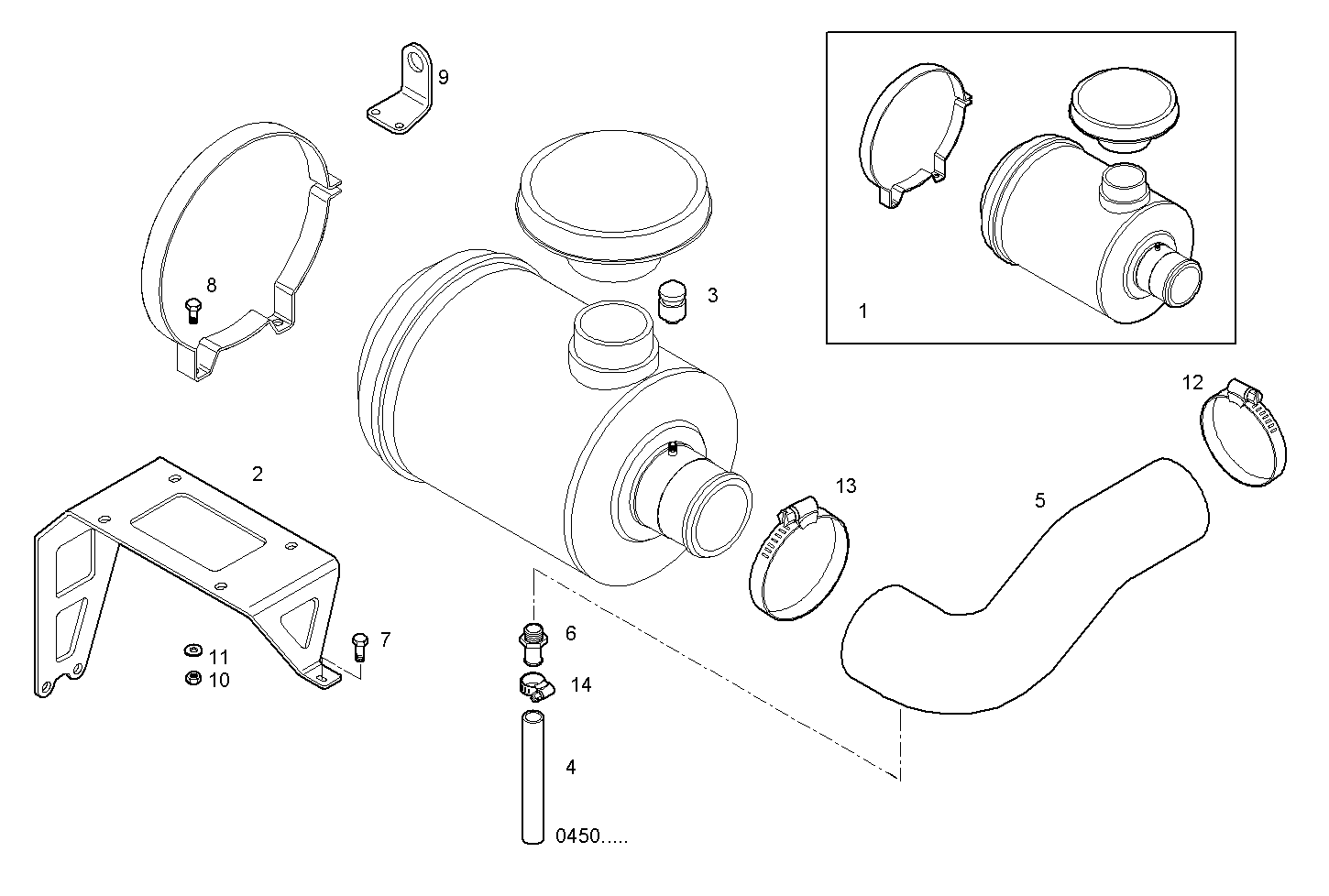

AIR CLEANER
N67MSAE00.00A800 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031382 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8038516 | FILTER SUPPORT FILTER SUPPORT | 1 | |
| 3 | 8027294 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 4 | 8035753 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 5 | 8035235 | FILTER HOSE FILTER HOSE | 1 | |
| 6 | 60181655 | PIPE SOCKET PIPE SOCKET | 1 | |
| 7 | 16587924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8037481 | HOOK HOOK | 1 | |
| 10 | 17037921 | NUT NUT | 4 | |
| 11 | 17089774 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 17765191 | CLIP CLIP | 1 | |
| 13 | 17765291 | CLIP CLIP | 1 | |
| 14 | 18088391 | CLIP CLIP | 2 |
