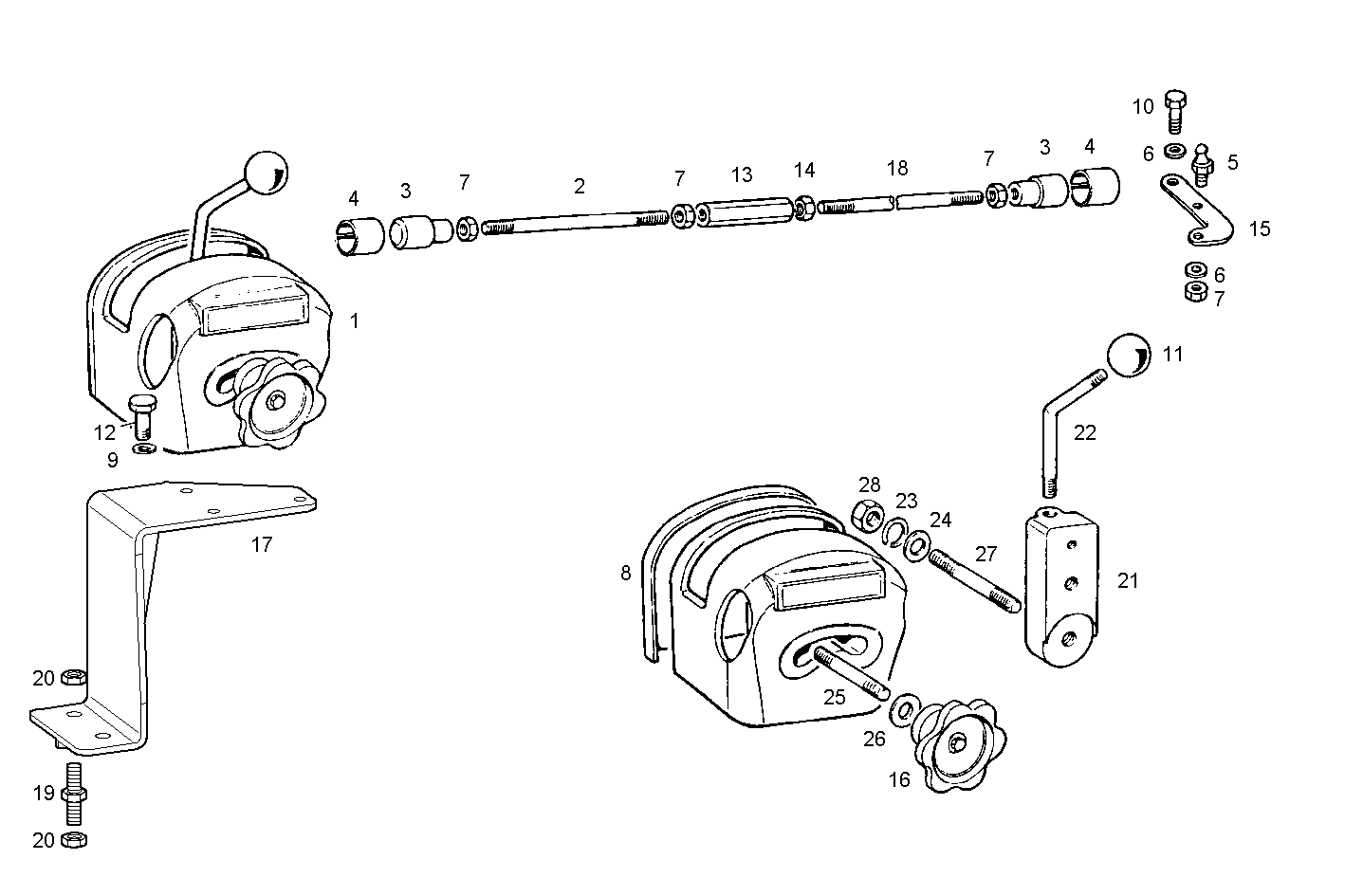

HAND ACCELERATOR
N67MSAE00.00A800 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR HAND ACCELERATOR | 1 | |
| 2 | 8037592 | TIE ROD TIE ROD | 1 | |
| 3 | 17721111 | BALL HEAD BALL HEAD | 2 | |
| 4 | 17722176 | CLIP CLIP | 2 | |
| 5 | 18008411 | PIN PIN | 1 | |
| 6 | 17088474 | WASHER WASHER | 3 | |
| 7 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 4927115 | COVER COVER | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 7 | |
| 10 | 16603524 | SCREW SCREW | 2 | |
| 11 | 4927041 | HANDLE BALL HANDLE BALL | 1 | |
| 12 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 13 | 17720114 | TIE ROD TIE ROD | 1 | |
| 14 | 16981731 | NUT NUT | 1 | |
| 15 | 8026302 | LEVER LEVER | 1 | |
| 16 | 4927042 | HANDWHEEL HANDWHEEL | 1 | |
| 17 | 8037559 | RETAINER RETAINER | 1 | |
| 18 | 8037593 | TIE ROD TIE ROD | 1 | |
| 19 | 8037594 | SPACING BAR SPACING BAR | 2 | |
| 20 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 21 | 4927004 | LEVER LEVER | 1 | |
| 22 | 4927877 | STUD STUD | 1 | |
| 23 | 10413879 | SPRING WASHER SPRING WASHER | 1 | |
| 24 | 16665704 | WASHER WASHER | 1 | |
| 25 | 11795121 | STUD STUD | 1 | |
| 26 | 16887624 | WASHER WASHER | 1 | |
| 27 | 13530221 | STUD STUD | 1 | |
| 28 | 17157521 | NUT NUT | 1 |
