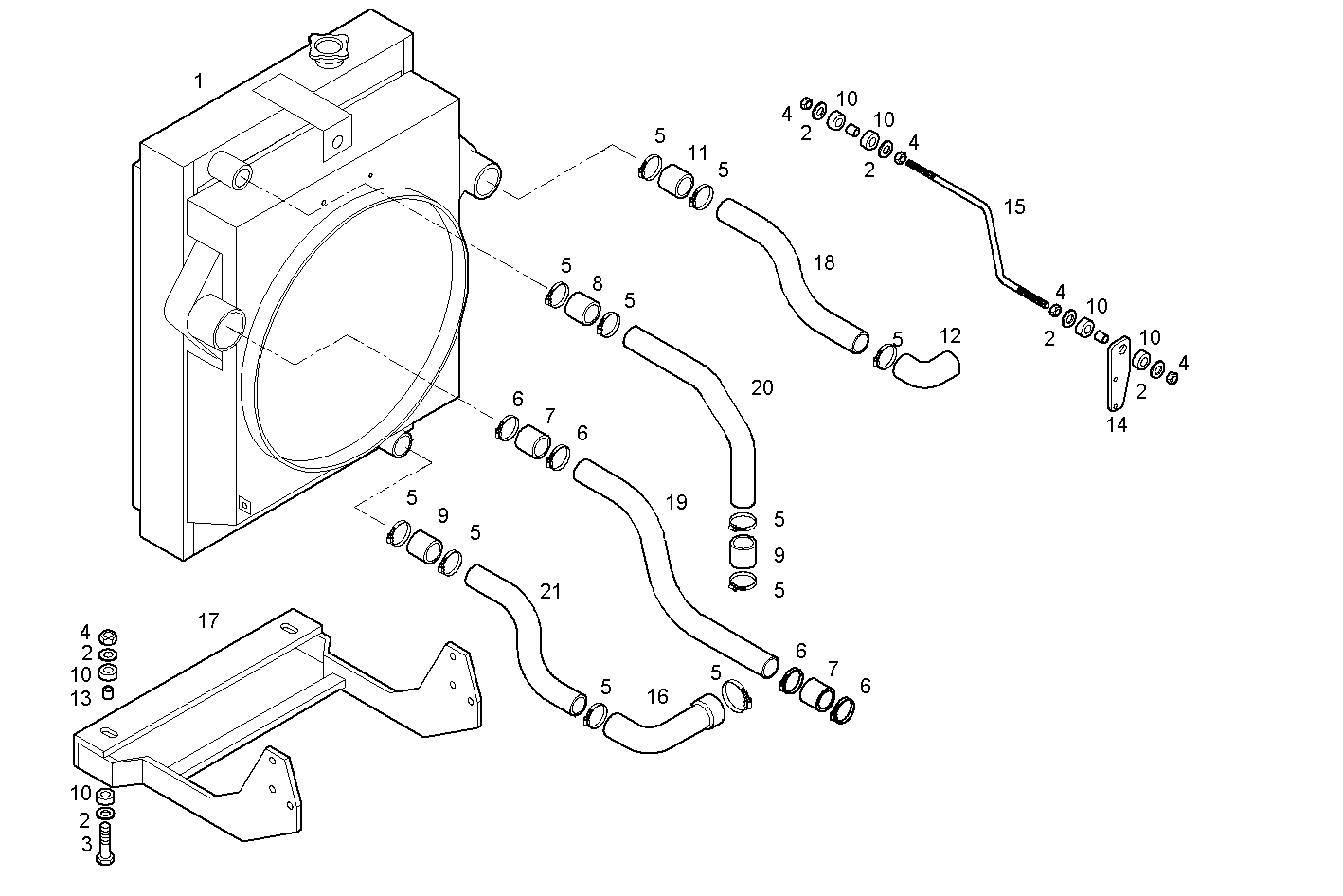

RADIATOR 2 CIRCUITS AIR/WATER
N67MSTD23.00 — NEF 6 mechanic. - TIER 2
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037784 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 741570 | WASHER WASHER | 8 | |
| 3 | 16588824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16750425 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17764991 | CLIP CLIP | 12 | |
| 6 | 17765191 | CLIP CLIP | 4 | |
| 7 | 98443275 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 2 | |
| 8 | 4863960 | WATER HOSE WATER HOSE | 3 | |
| 9 | 8038027 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 741569 | RUBBER PAD RUBBER PAD | 8 | |
| 11 | 8036376 | WATER HOSE WATER HOSE | 1 | |
| 12 | 8036359 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 14 | 8037825 | RETAINER RETAINER | 1 | |
| 15 | 8037523 | TIE ROD TIE ROD | 1 | |
| 16 | 8039375 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 8038285 | SUPPORT SUPPORT | 1 | |
| 18 | 8037555 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 19 | 8037550 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8037546 | WATER PIPE WATER PIPE | 1 | |
| 21 | 8037541 | WATER PIPE WATER PIPE | 1 |
