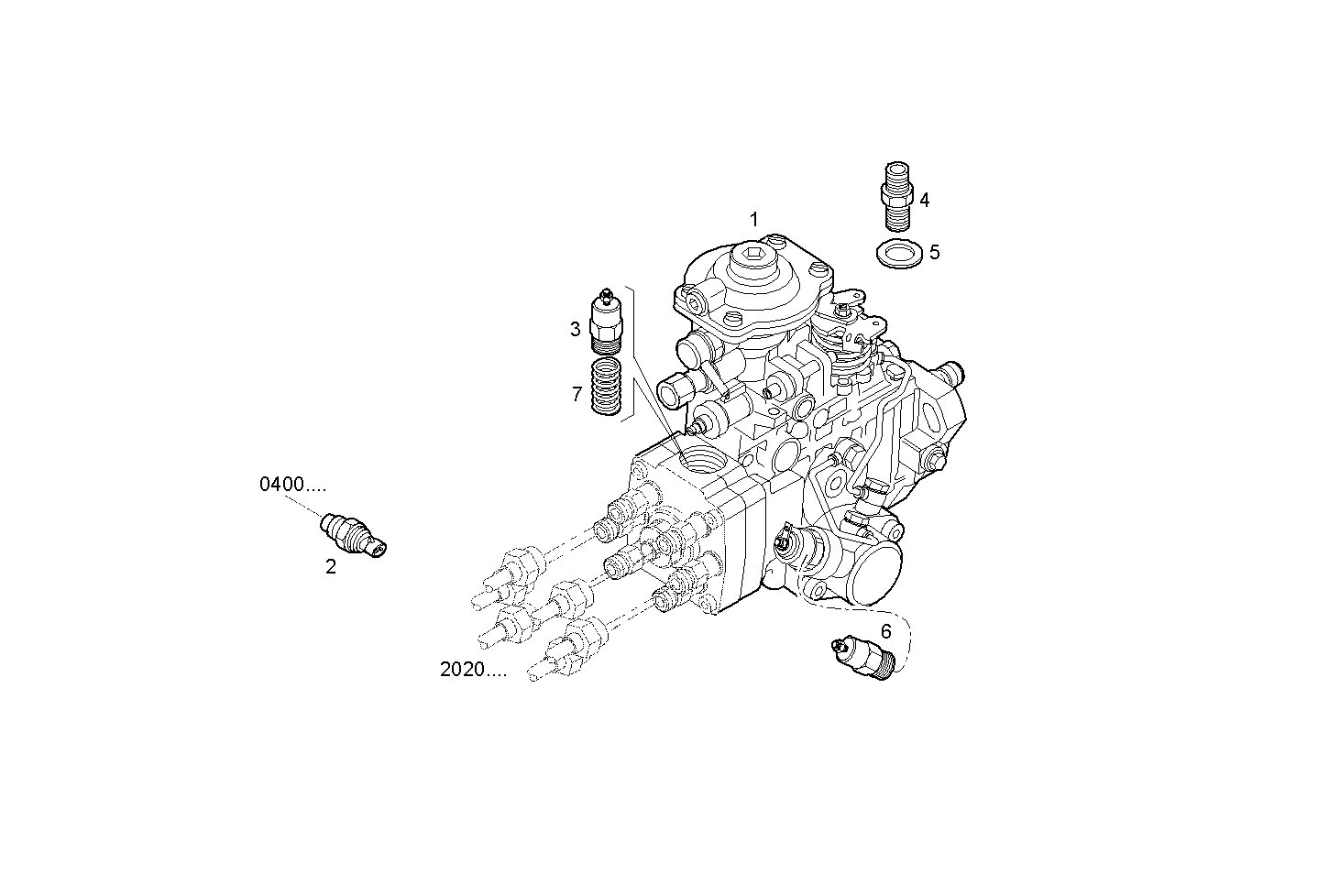

INJECTION PUMP ASSY
N67MNAM12.30 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504124823 | DISTRIB.INJ.PUMP DISTRIB.INJ.PUMP | 1 | |
| 2 | 504032877 | SENSOR SENSOR | 1 | |
| 3 | 8107346 | ELECTROVALVE ELECTROVALVE | 1 | |
| 4 | 16500114 | THREADED UNION THREADED UNION | 1 | |
| 5 | 99489017 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 93192974 | MAGNETO MAGNETO | 1 | |
| 7 | 8032965 | SPRING SPRING | 1 |
