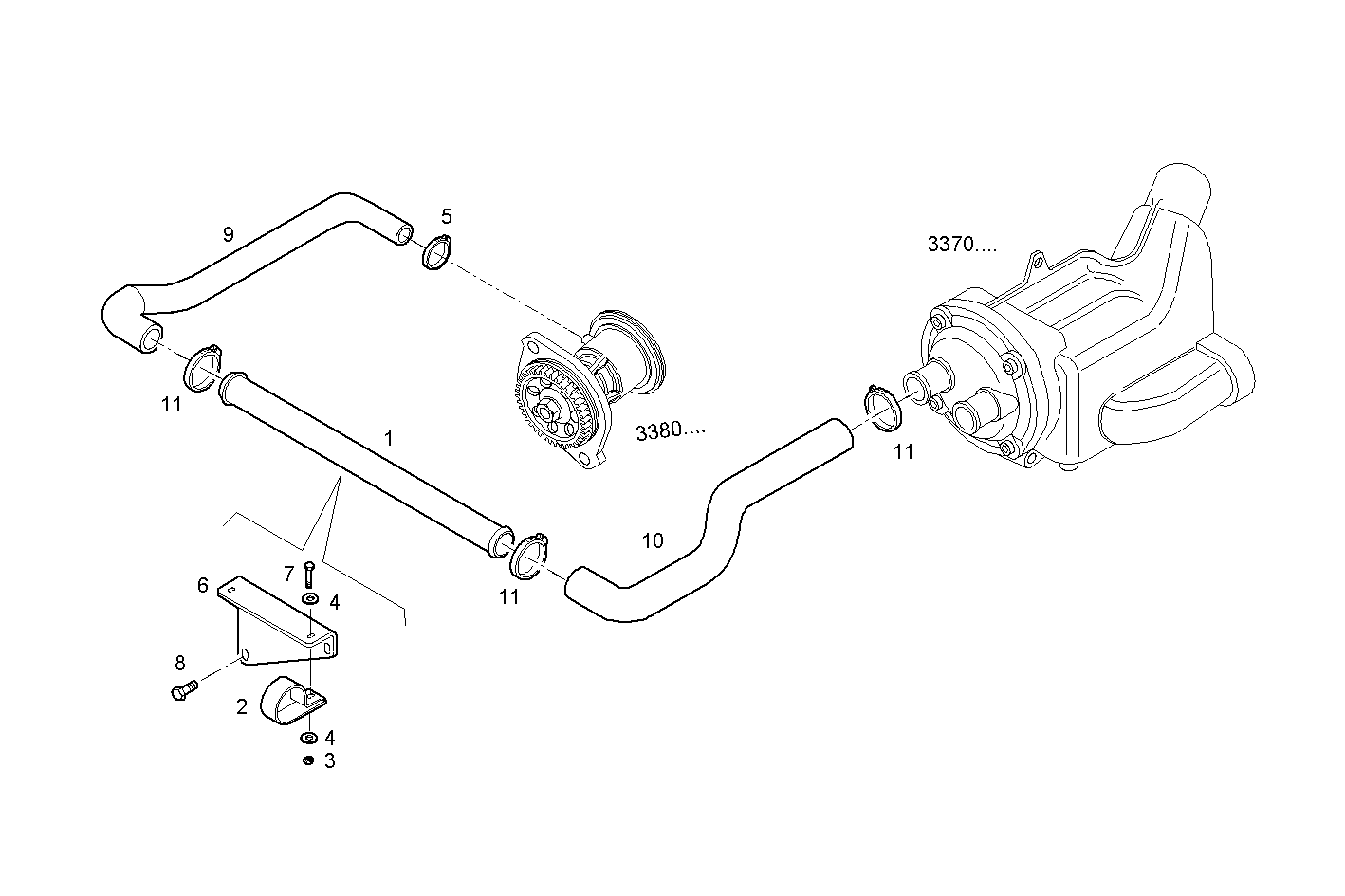

SEA WATER LINES
N67MNAM15.00 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8039374 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 8103077 | CLIP CLIP | 2 | |
| 3 | 17037925 | HEXAGON NUT HEXAGON NUT | 2 | |
| 4 | 17094904 | WASHER WASHER | 4 | |
| 5 | 17764893 | CLIP CLIP | 1 | |
| 6 | 8039259 | RETAINER RETAINER | 1 | |
| 7 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 18139424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 8043324 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 8043322 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 11 | 17764793 | CLIP CLIP | 3 |
