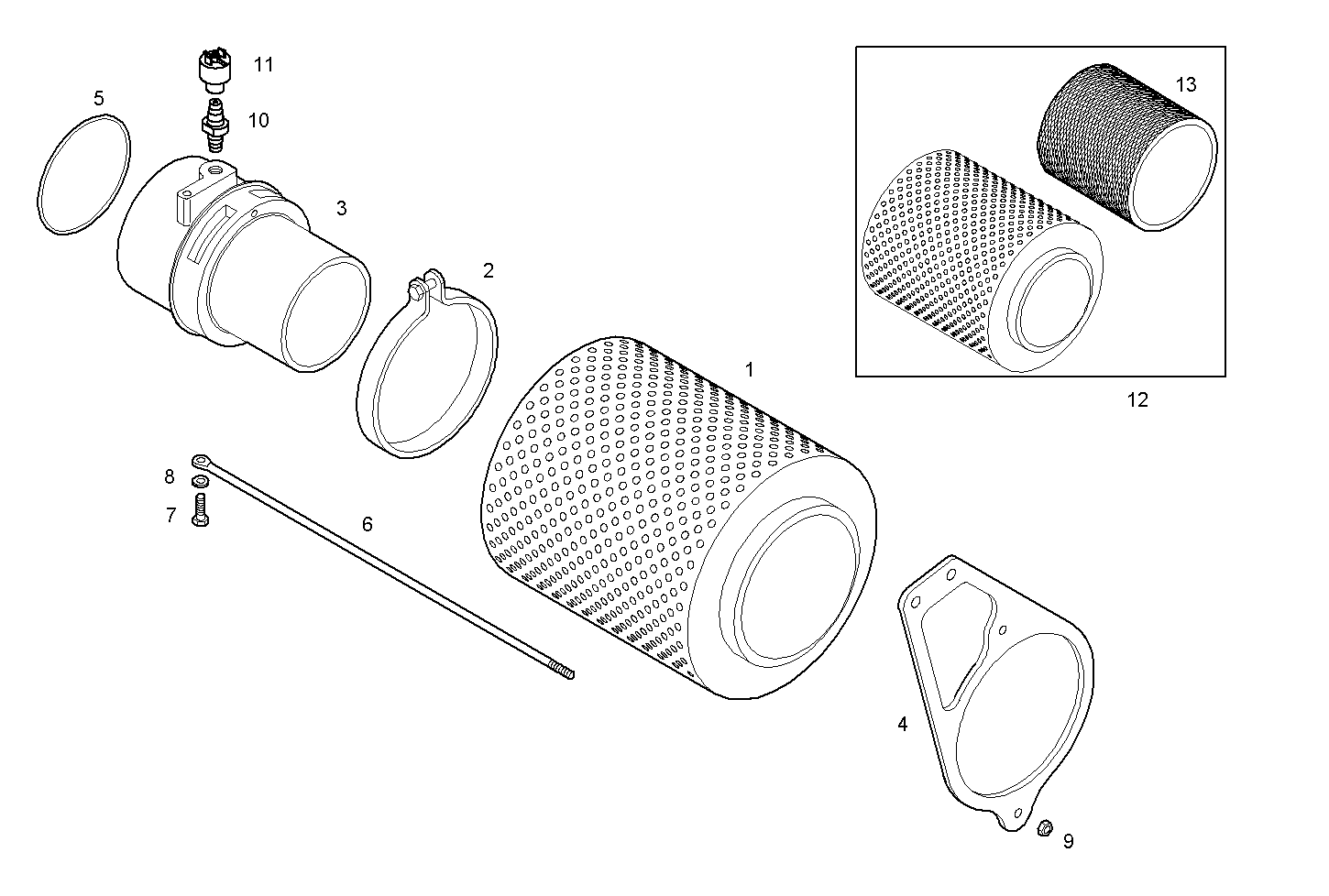

AIR CLEANER
N67MNSM22.10 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015887 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 17770599 | CLIP CLIP | 1 | |
| 3 | 8036233 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 4 | 8036945 | RETAINER RETAINER | 1 | |
| 5 | 17291381 | O-RING O-RING | 1 | |
| 6 | 8036282 | TIE ROD TIE ROD | 2 | |
| 7 | 16603677 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 17088474 | WASHER WASHER | 2 | |
| 9 | 17967521 | NUT NUT | 2 | |
| 10 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 12 | 8039403 | AIR CLEANER AIR CLEANER | 1 | |
| 13 | 8039606 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 |
