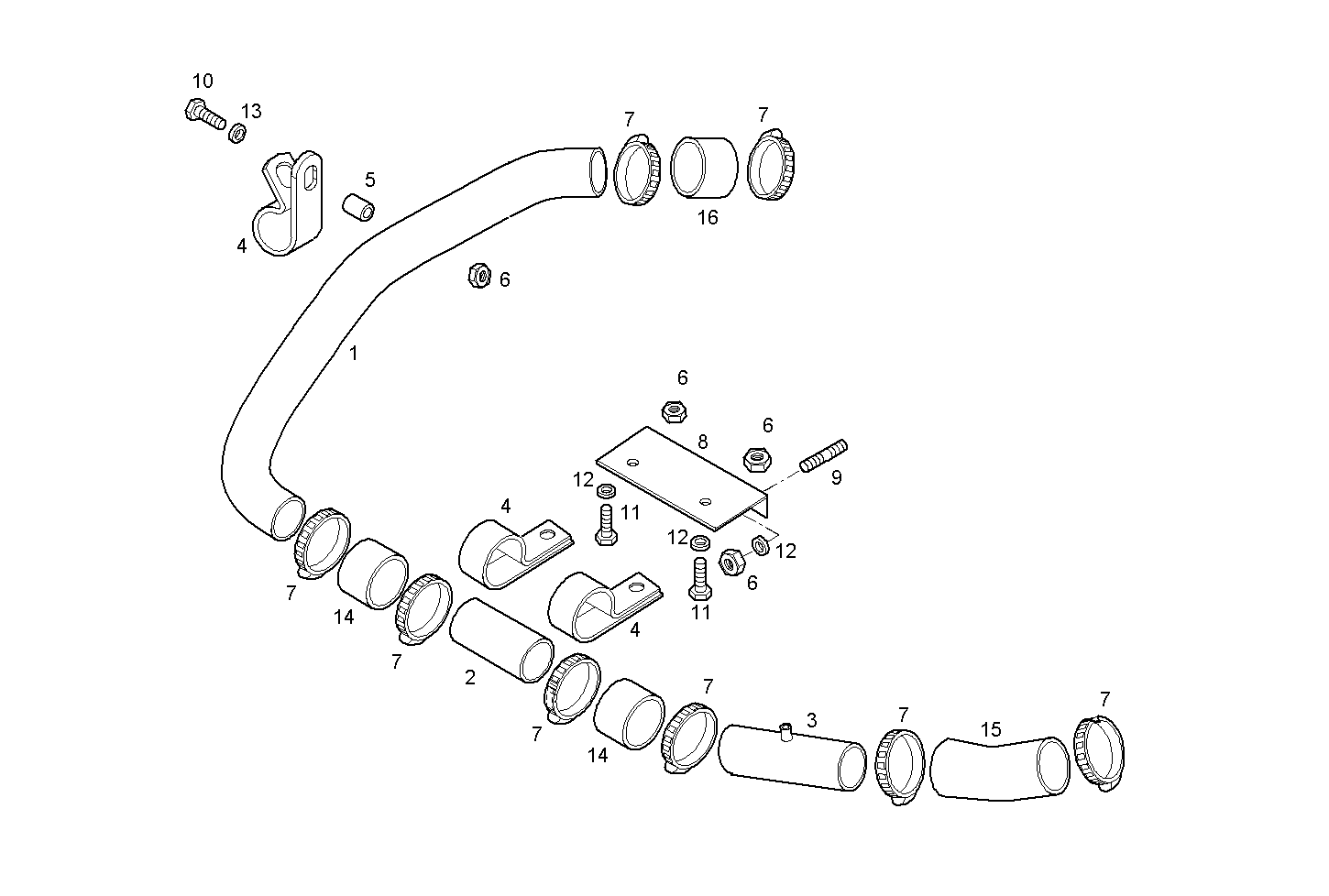

SEA WATER LINES
N67MNSM22.10 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8041621 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 2 | 8034549 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 3 | 8034459 | SEA WATER PIPE SEA WATER PIPE | 1 | |
| 4 | 8034457 | CLIP CLIP | 3 | |
| 5 | 8028346 | SPACER BUSH SPACER BUSH | 1 | |
| 6 | 17038131 | HEXAGON NUT HEXAGON NUT | 4 | |
| 7 | 17764893 | CLIP CLIP | 8 | |
| 8 | 8034494 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 9 | 17368024 | STUD STUD | 2 | |
| 10 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 16607734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 13 | 17095014 | WASHER WASHER | 2 | |
| 14 | 98433319 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 15 | 8106646 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 16 | 8040142 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
