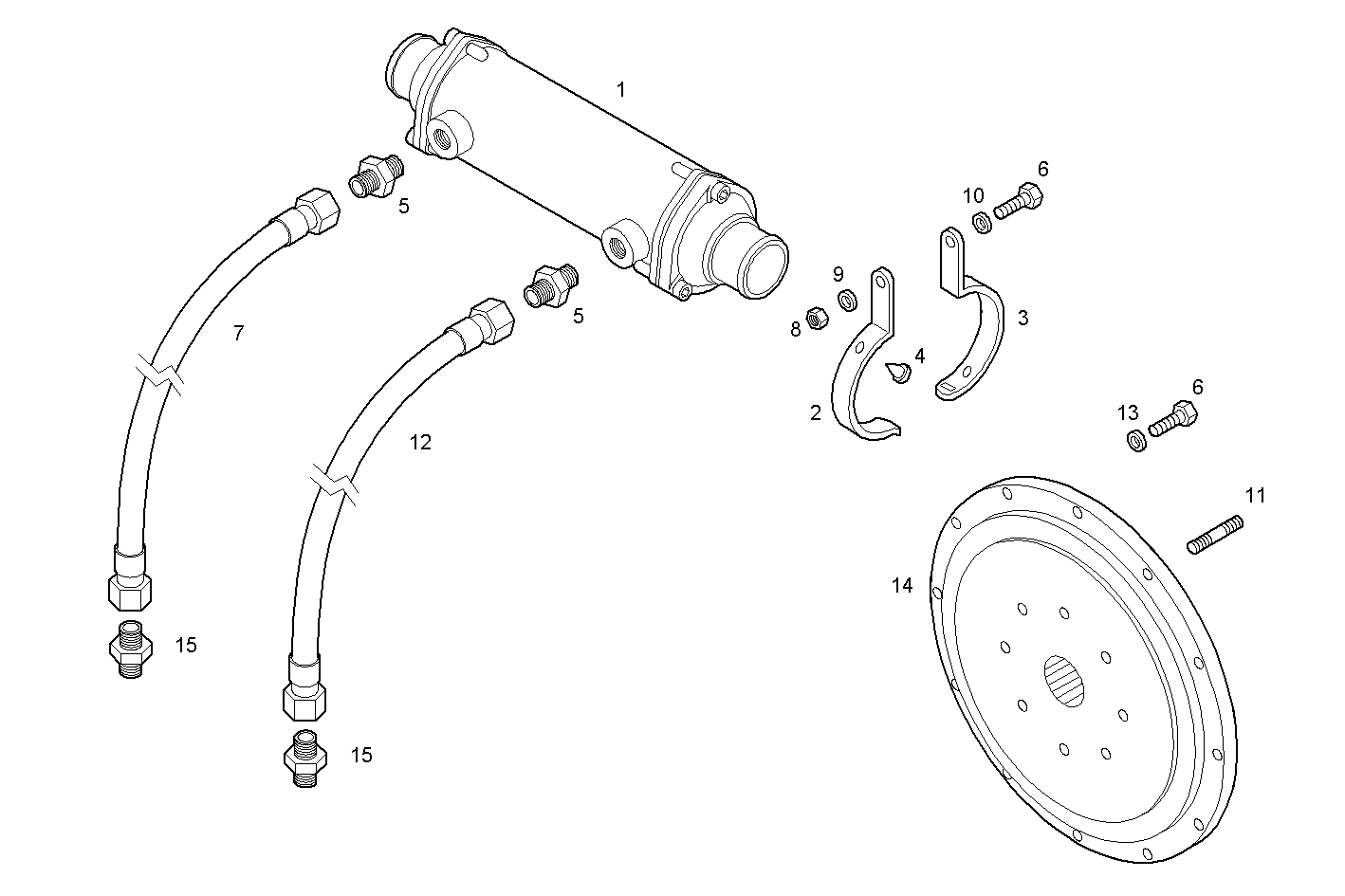

ARRANGED FOR GEAR ZF
N67MNSM22.11 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8034070 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 2 | 8034488 | RETAINER RETAINER | 2 | |
| 3 | 8034489 | RETAINER RETAINER | 2 | |
| 4 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 5 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 16607624 | SCREW SCREW | 10 | |
| 7 | 8105620 | HOSE HOSE | 1 | |
| 8 | 17038131 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17095004 | WASHER WASHER | 2 | |
| 11 | 17368024 | STUD STUD | 10 | |
| 12 | 8105226 | HOSE HOSE | 1 | |
| 13 | 17494934 | WASHER WASHER | 8 | |
| 14 | 8035885 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 15 | 8101073 | PIPE SOCKET PIPE SOCKET | 2 |
