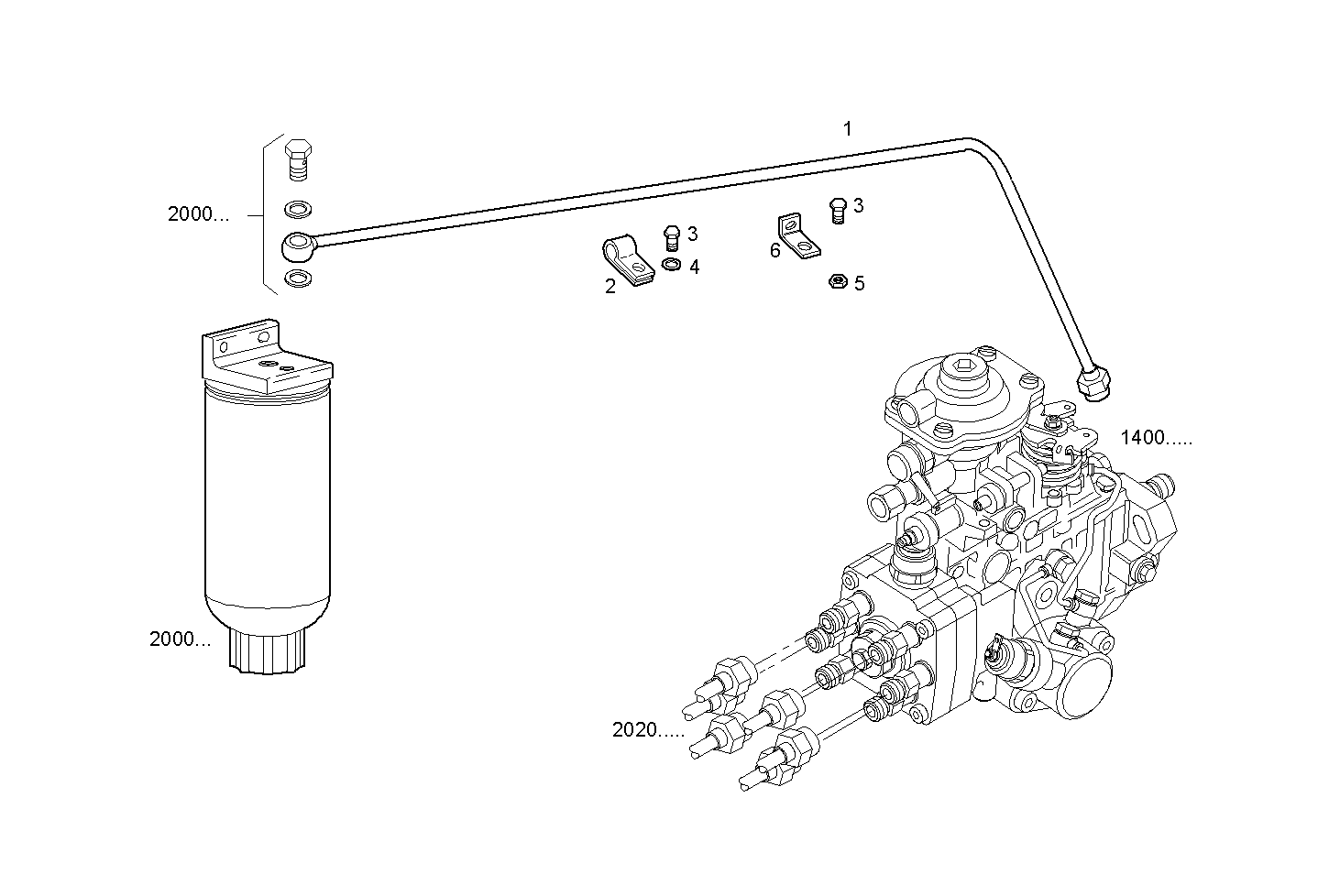

FUEL LINES
N67MNSM22.11 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8037500 | FUEL PIPES FUEL PIPES | 1 | |
| 2 | 17316490 | CLIP CLIP | 1 | |
| 3 | 16605424 | SCREW SCREW | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 17037925 | HEXAGON NUT HEXAGON NUT | 1 | |
| 6 | 4929652 | RETAINER RETAINER | 1 |
