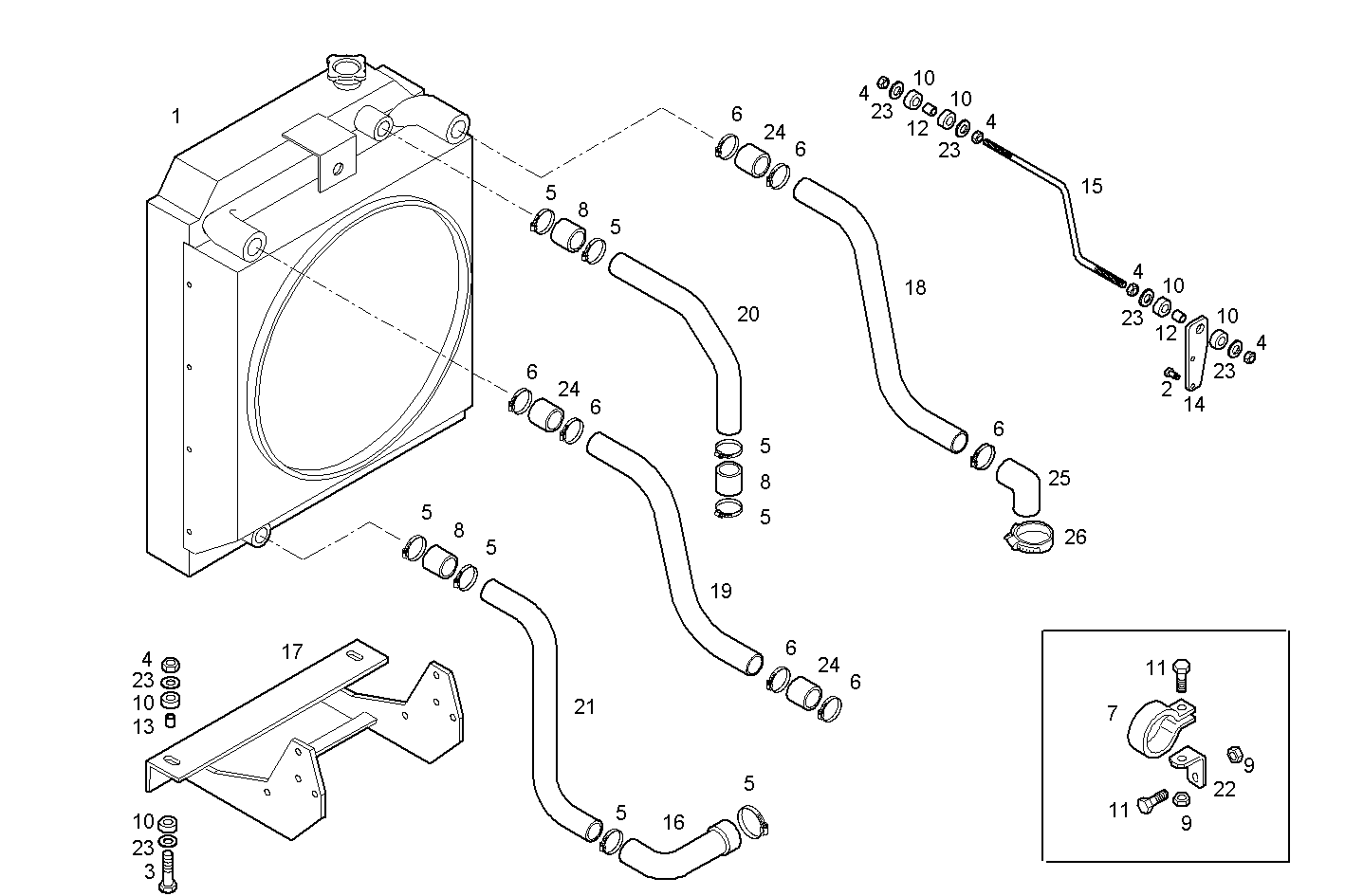

RADIATOR
N67MNTD20.00A007 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8042936 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 16673635 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 16588824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16750425 | HEXAGON NUT HEXAGON NUT | 6 | |
| 5 | 17764991 | CLIP CLIP | 8 | |
| 6 | 17765291 | CLIP CLIP | 7 | |
| 7 | 18116704 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 98433328 | WATER HOSE WATER HOSE | 3 | |
| 9 | 17044735 | NUT NUT | 2 | |
| 10 | 741569 | RUBBER PAD RUBBER PAD | 8 | |
| 11 | 16673735 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 8108634 | SPACING BAR SPACING BAR | 2 | |
| 13 | 741571 | SPACING BAR SPACING BAR | 2 | |
| 14 | 8037825 | RETAINER RETAINER | 1 | |
| 15 | 8038147 | TIE ROD TIE ROD | 1 | |
| 16 | 8039375 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 17 | 8038085 | SUPPORT SUPPORT | 1 | |
| 18 | 8043759 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 19 | 8043758 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8043753 | WATER PIPE WATER PIPE | 1 | |
| 21 | 8038111 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8103023 | RETAINER RETAINER | 1 | |
| 23 | 741570 | WASHER WASHER | 8 | |
| 24 | 98443275 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 3 | |
| 25 | 8045559 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 26 | 17765091 | CLIP CLIP | 1 |
