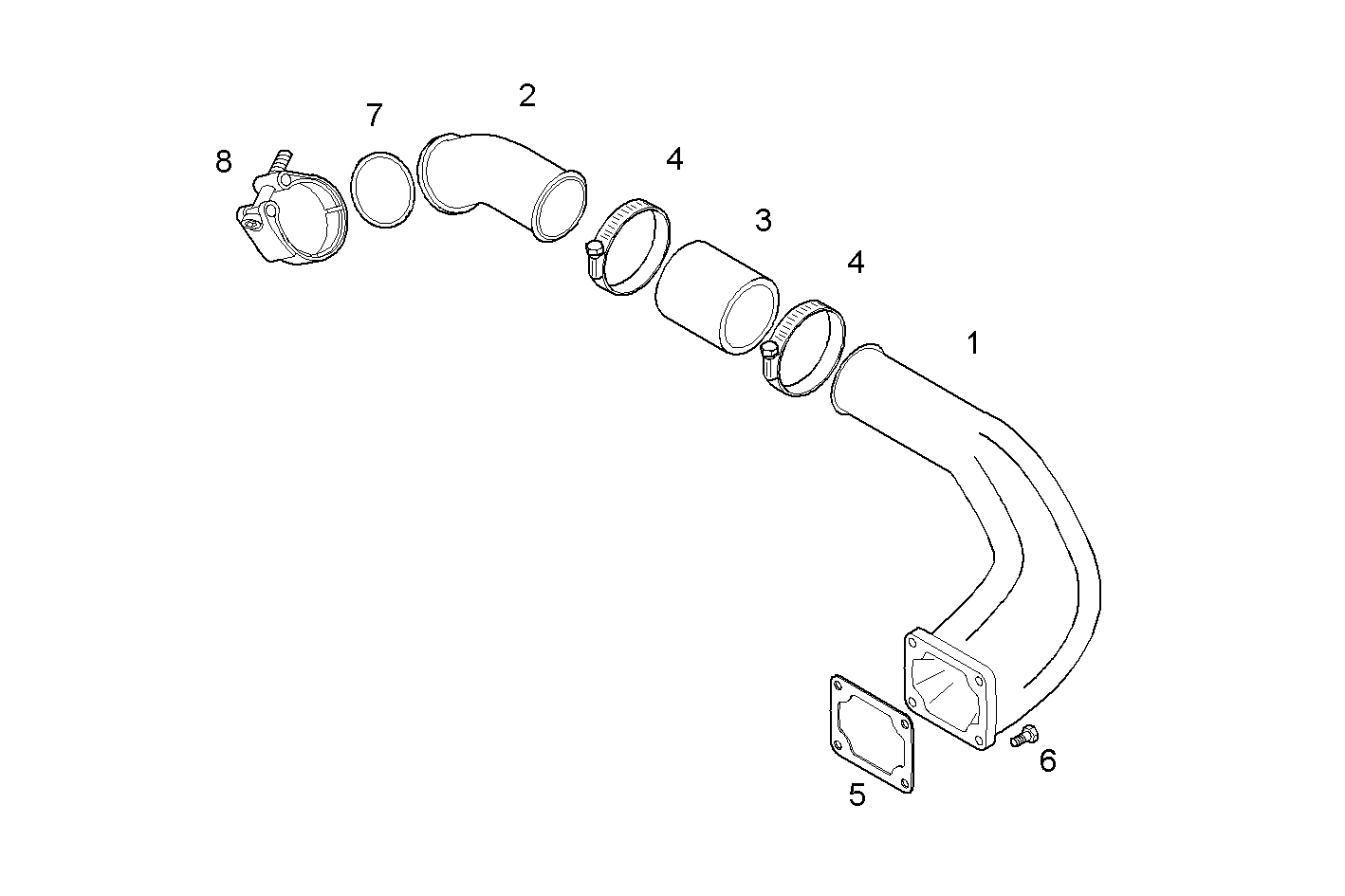

EXIT AIR PIPE
N67MNTF40.01 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8040030 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 8042469 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 3 | 504072912 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 17765091 | CLIP CLIP | 2 | |
| 5 | 8031907 | GASKET GASKET | 1 | |
| 6 | 98401723 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17284681 | O-RING O-RING | 1 | |
| 8 | 504043157 | CLIP CLIP | 1 |
