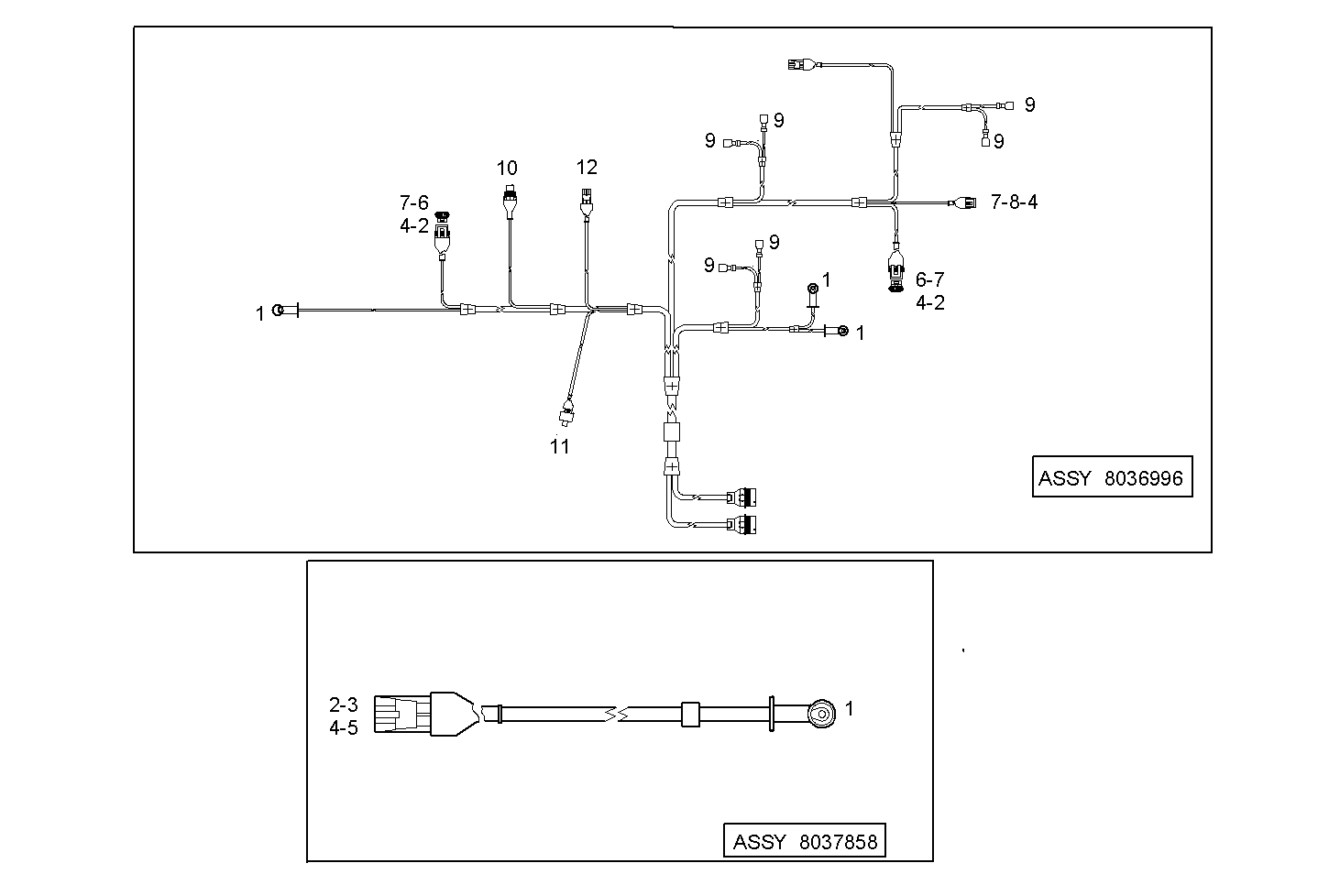

ENGINE ELECTRIC WIRING (COMPONENTS)
N67MNTM28.10 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 10405485 | CAP CAP | 3 | |
| 2 | 12039287 | CAP CAP | 4 | |
| 3 | 98435370 | TERMINAL TERMINAL | 3 | |
| 4 | 4861936 | RUBBER BUSH RUBBER BUSH | 11 | |
| 5 | 98435331 | WIRE CONNECTOR WIRE CONNECTOR | 2 | |
| 6 | 98435344 | WIRE CONNECTOR WIRE CONNECTOR | 2 | |
| 7 | 98435372 | TERMINAL TERMINAL | 8 | |
| 8 | 98435346 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 9 | 8113135 | TERMINAL TERMINAL | 1 | |
| 10 | 12331654 | TERMINAL TERMINAL | 2 | |
| 11 | 12309290 | TERMINAL TERMINAL | 1 | |
| 12 | 4835259 | GASKET GASKET | 1 | |
| 13 | 98420215 | PLUG PLUG | 1 |
