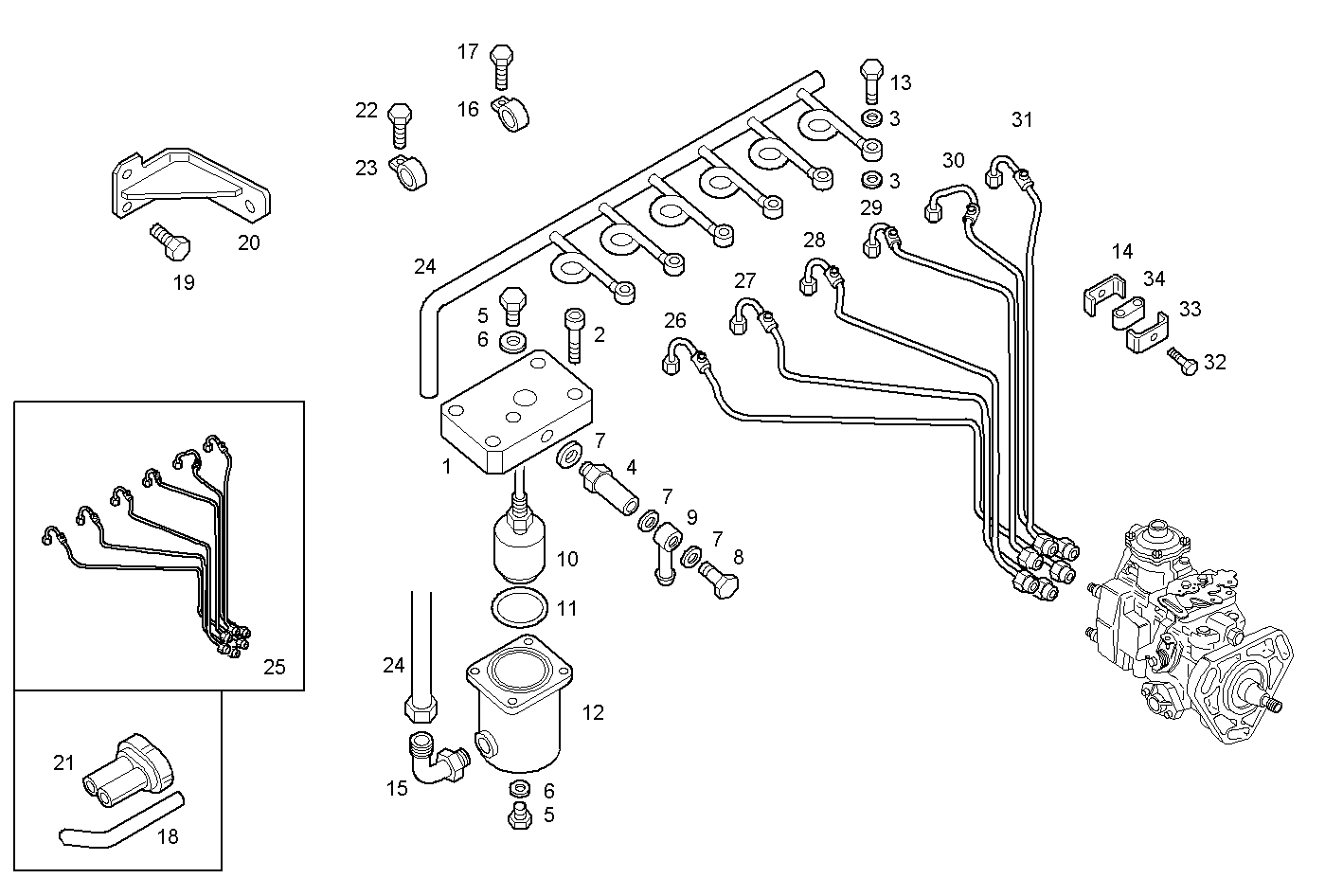

DOUBLE WALL INJECTION PIPES
N67MNTM28.11 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020291 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 3 | 98474303 | WASHER WASHER | 12 | |
| 4 | 8102465 | VALVE VALVE | 1 | |
| 5 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 4858607 | WASHER WASHER | 2 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8102285 | INDICATOR INDICATOR | 1 | |
| 11 | 17290081 | O-RING O-RING | 1 | |
| 12 | 8026365 | TANK TANK | 1 | |
| 13 | 4864078 | BANJO BOLT BANJO BOLT | 6 | |
| 14 | 4659222 | CLAMP CLAMP | 3 | |
| 15 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 16 | 10450090 | PIPE CLIP PIPE CLIP | 1 | |
| 17 | 18137825 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 19120680 | LINER LINER | 1 | |
| 19 | 16588025 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 8038159 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 21 | 8031968 | WIRE CONNECTOR WIRE CONNECTOR | 1 | |
| 22 | 16586224 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 23 | 17316490 | CLIP CLIP | 3 | |
| 24 | 8038341 | INJECTION LINE INJECTION LINE | 1 | |
| 25 | 8037874 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 26 | 8038244 | INJECTION LINE INJECTION LINE | 1 | |
| 27 | 8038245 | INJECTION LINE INJECTION LINE | 1 | |
| 28 | 8038246 | INJECTION LINE INJECTION LINE | 1 | |
| 29 | 8038247 | INJECTION LINE INJECTION LINE | 1 | |
| 30 | 8038248 | INJECTION LINE INJECTION LINE | 1 | |
| 31 | 8038249 | INJECTION LINE INJECTION LINE | 1 | |
| 32 | 16585325 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 33 | 4659221 | CLIP CLIP | 3 | |
| 34 | 4659220 | DOWEL DOWEL | 3 |
