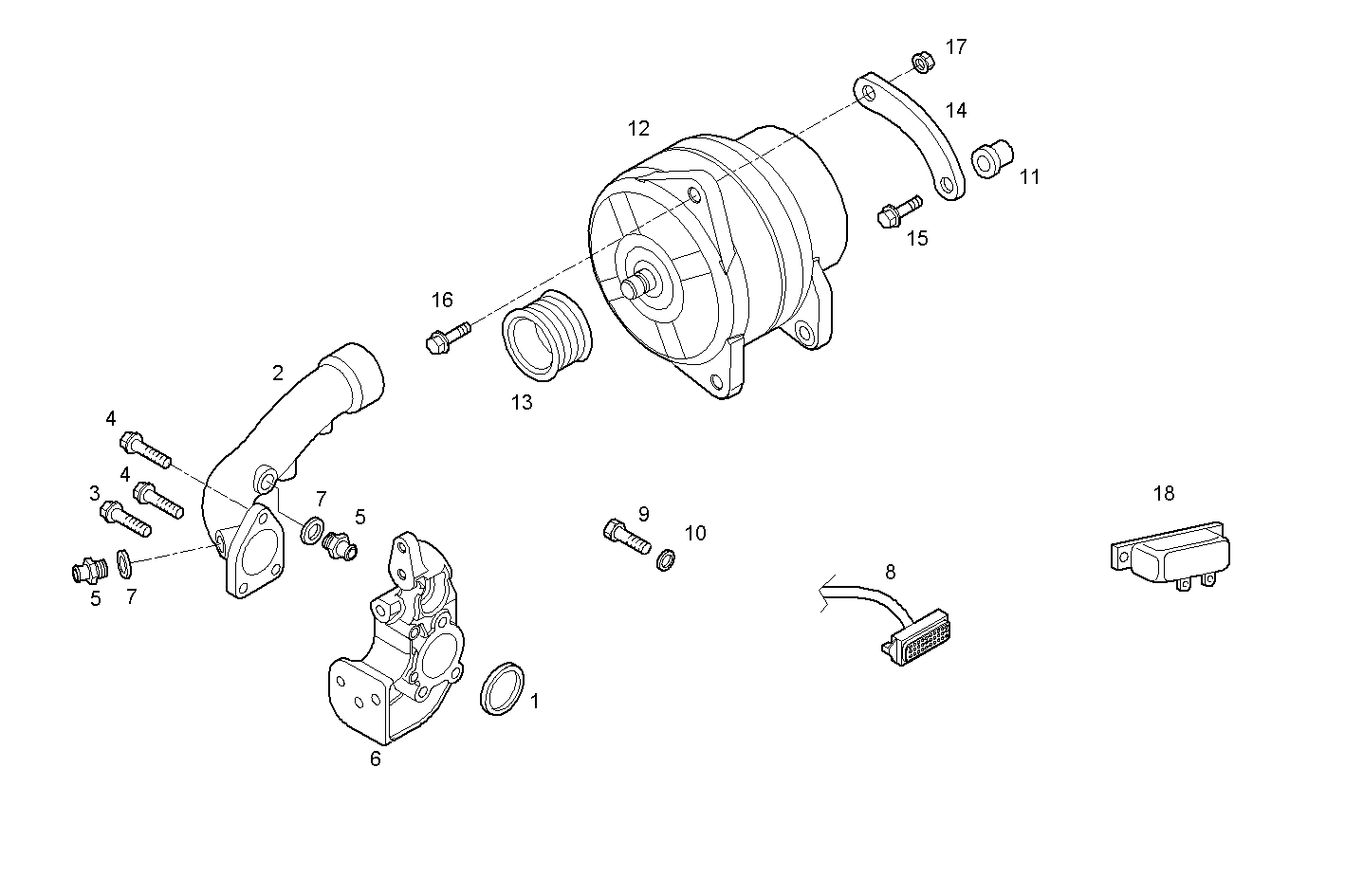

SELF-REGULATED ALTERNATOR
N67MNTM28.31 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504062710 | WASHER WASHER | 2 | |
| 2 | 8042837 | WATER PIPE WATER PIPE | 1 | |
| 3 | 16592925 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 16599224 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 5 | 8024797 | PIPE SOCKET PIPE SOCKET | 2 | |
| 6 | 8036563 | GENERATOR SUPPORT GENERATOR SUPPORT | 1 | |
| 7 | 99434480 | SEAL GASKET SEAL GASKET | 2 | |
| 8 | 8037860 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17089574 | WASHER WASHER | 1 | |
| 11 | 8036564 | SPACING BAR SPACING BAR | 1 | |
| 12 | 8036232 | ALTERNATOR ALTERNATOR | 1 | |
| 13 | 8036600 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 14 | 8036565 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 15 | 16593125 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16587125 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 17044825 | HEXAGON NUT HEXAGON NUT | 2 | |
| 18 | 8108575 | RELAY RELAY | 1 |
