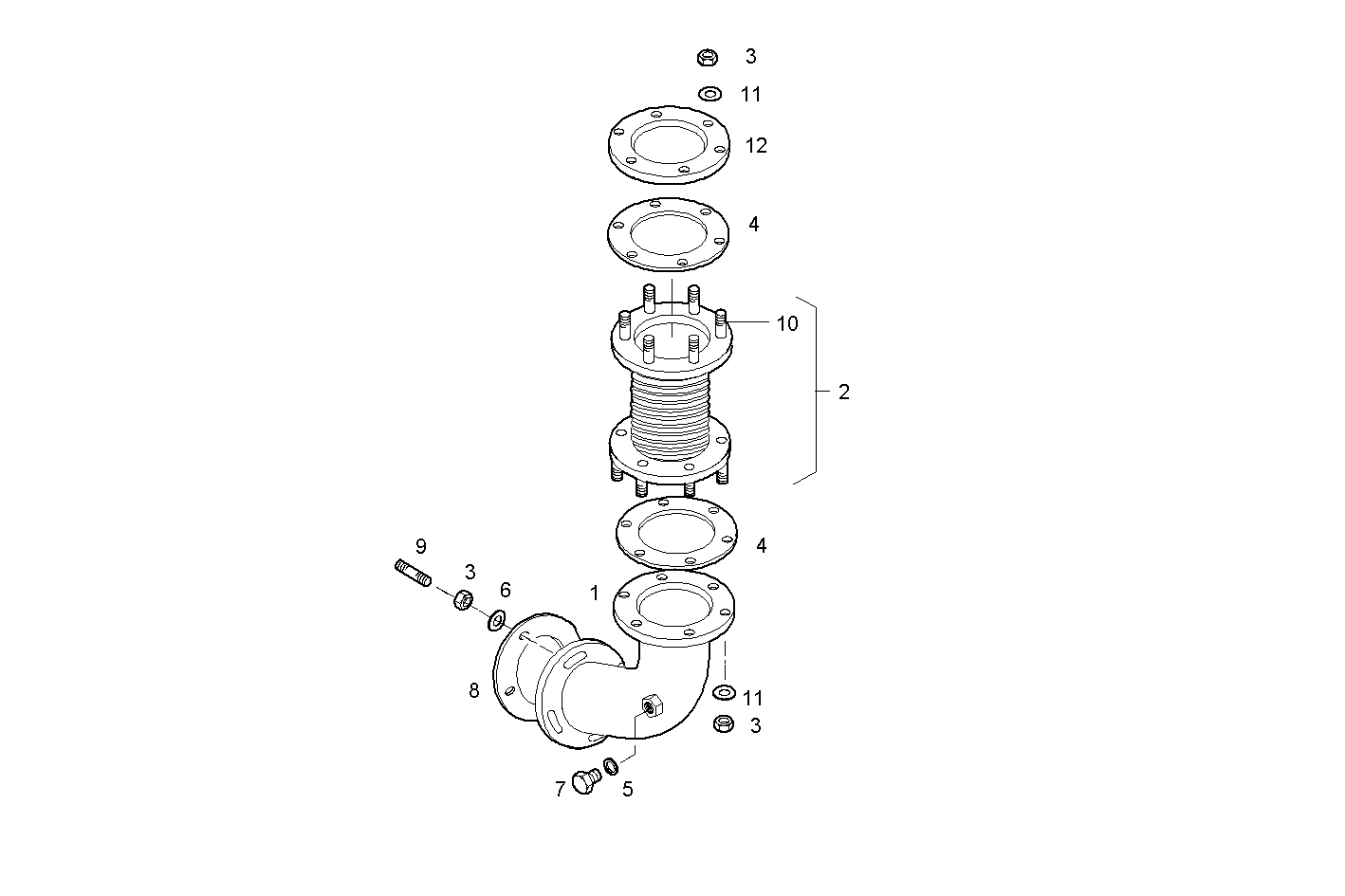

UPWARD EXHAUST ELBOW
N67MNTM28.31 — NEF 6 mechanic.
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8043639 | MARINE EXHAUST PIPE MARINE EXHAUST PIPE | 1 | |
| 2 | 8010252 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 3 | 17037925 | HEXAGON NUT HEXAGON NUT | 16 | |
| 4 | 8009606 | GASKET GASKET | 2 | |
| 5 | 4858607 | WASHER WASHER | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 8111833 | GASKET GASKET | 1 | |
| 9 | 16729324 | STUD STUD | 4 | |
| 10 | 13516921 | STUD STUD | 12 | |
| 11 | 16665514 | WASHER WASHER | 12 | |
| 12 | 4919183 | FLANGE FLANGE | 1 |
