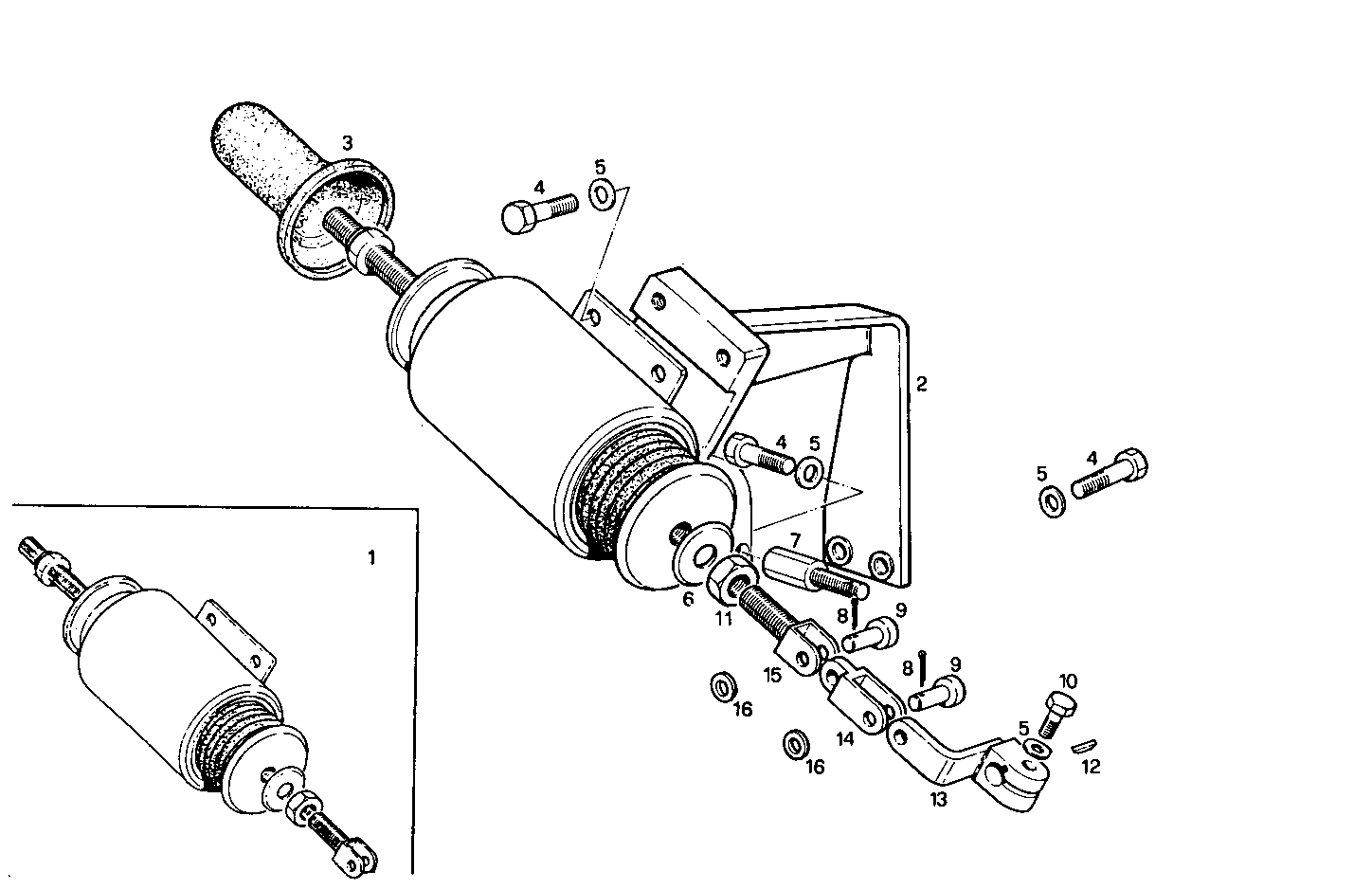

STOP SOLENOID - ENERGIZE TO RUN - 12V
PU8061i05.05A100 — PU8061i05
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110900 | SOLENOID SOLENOID | 1 | |
| 2 | 8110754 | SUPPORT SUPPORT | 1 | |
| 3 | 8111523 | PROTECTIVE HOOD PROTECTIVE HOOD | 1 | |
| 4 | 10902221 | HEXAGON BOLT HEXAGON BOLT | 7 | |
| 5 | 17088474 | WASHER WASHER | 8 | |
| 6 | 14497801 | WASHER WASHER | 2 | |
| 7 | 8110818 | SPACING BAR SPACING BAR | 1 | |
| 8 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 9 | 17718411 | PIN PIN | 2 | |
| 10 | 10977721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 1136607 | KEY KEY | 1 | |
| 13 | 8110753 | LEVER LEVER | 1 | |
| 14 | 8108833 | CLEVIS CLEVIS | 1 | |
| 15 | 8110822 | CLEVIS CLEVIS | 1 | |
| 16 | 11193879 | SPRING WASHER SPRING WASHER | 2 |
