BIDISC INDUSTRIAL CLUTCH
PU8065SE00.00A100 — PU8065SE00

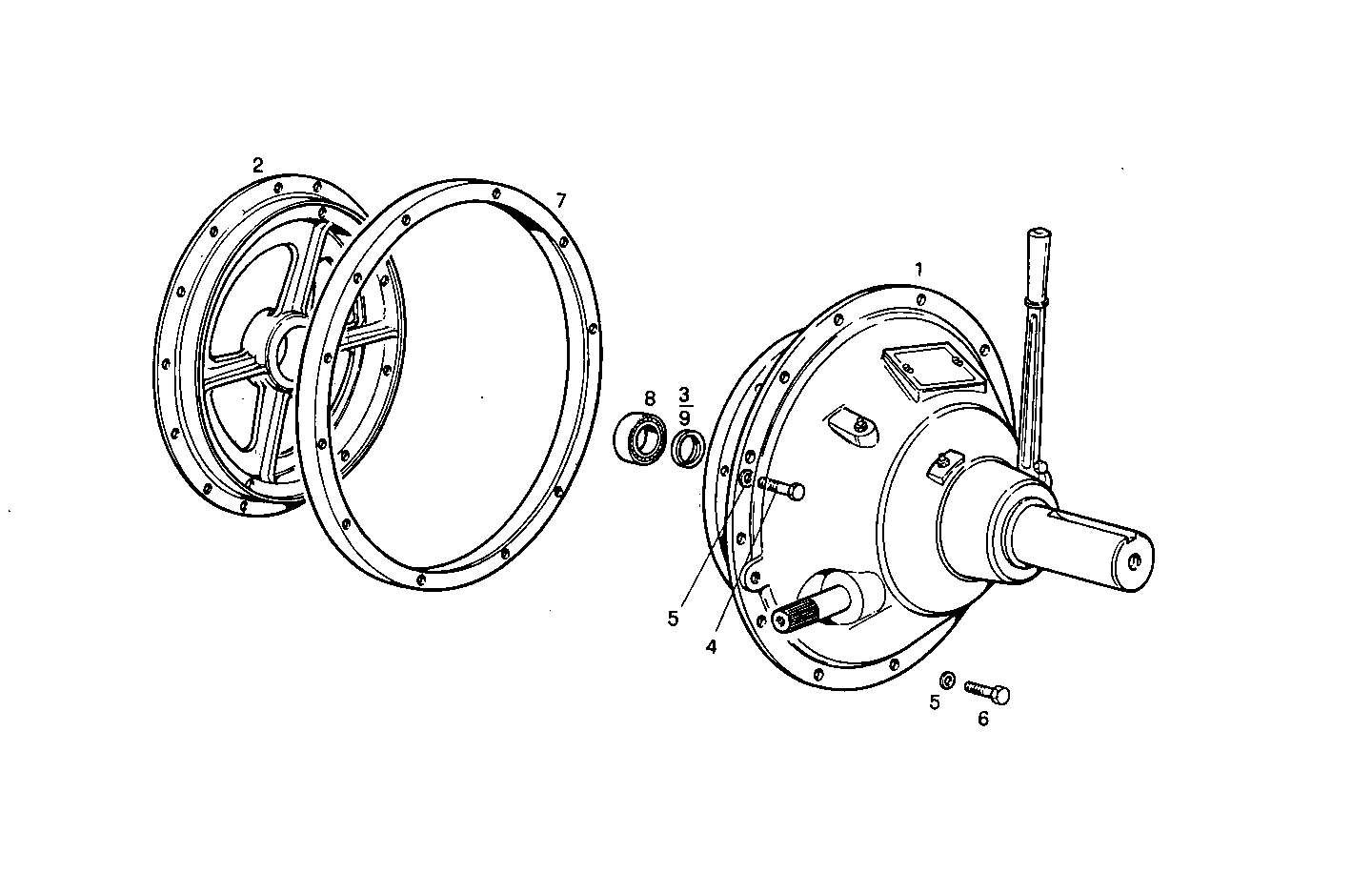

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015232 | CLUTCH CLUTCH | 1 | |
| 2 | 8104057 | FLANGE FLANGE | 1 | |
| 3 | 4931870 | SPACING BAR SPACING BAR | 1 | |
| 4 | 15971921 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 20 | |
| 6 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 7 | 8101046 | SPACING BAR SPACING BAR | 1 | |
| 8 | 28044150 | DRIVE BEARING DRIVE BEARING | 1 | |
| 9 | 8014922 | SPACER RING SPACER RING | 1 |
