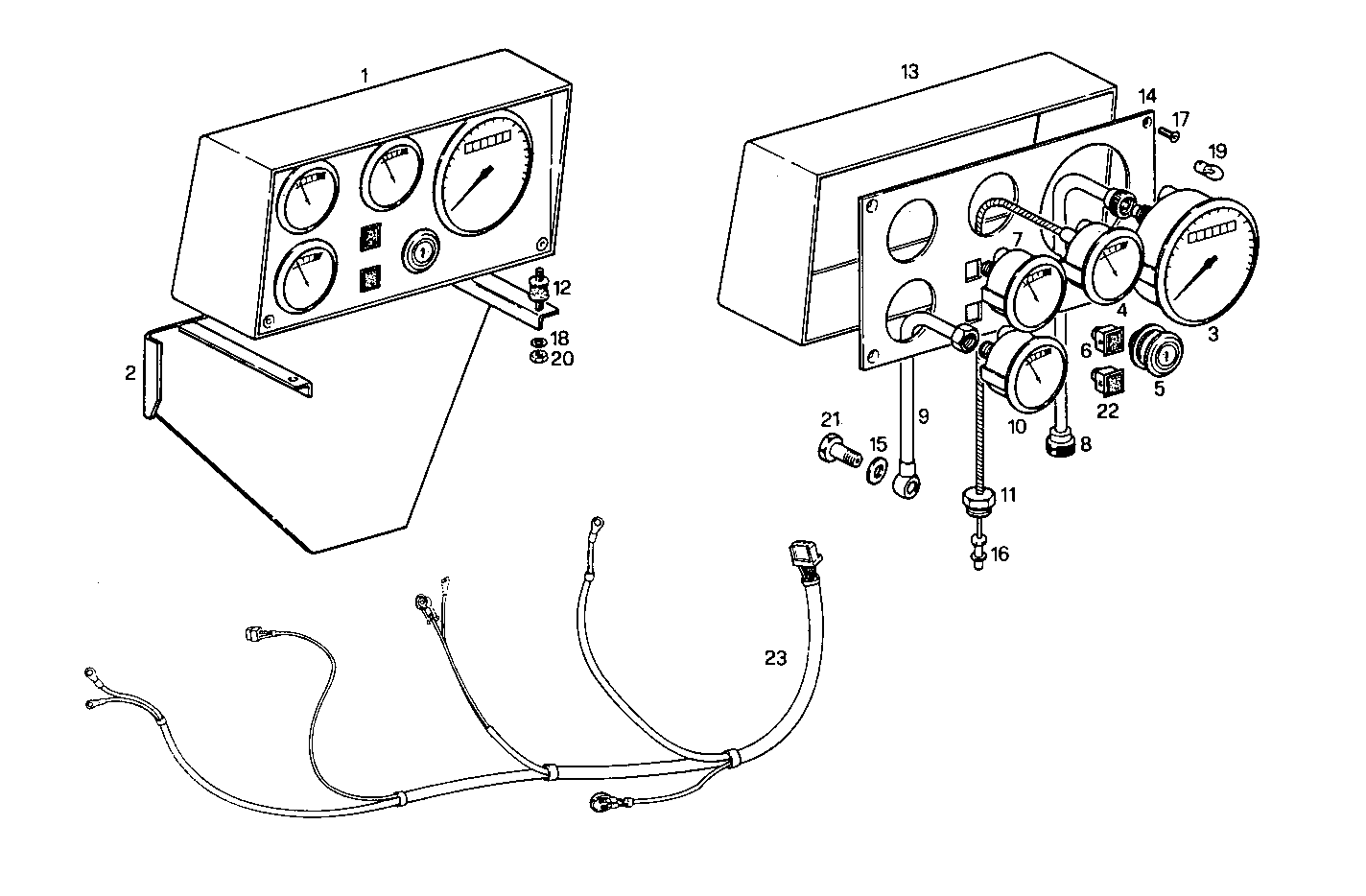

MECHANICAL INSTRUMENTS PANEL
PU8210I03.00A102 — PU8210I03
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105762 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 2 | 4934558 | RETAINER RETAINER | 1 | |
| 3 | 4928122 | REVOLUTION COUNTER REVOLUTION COUNTER | 1 | |
| 4 | 4132980 | THERMOMETER THERMOMETER | 1 | |
| 5 | 8103708 | SWITCH SWITCH | 1 | |
| 6 | 8005921 | WARNING LIGHT WARNING LIGHT | 1 | |
| 7 | 4934630 | AMMETER AMMETER | 1 | |
| 8 | 8113280 | CONTROL ASSEMBLY CONTROL ASSEMBLY | 1 | |
| 9 | 4931732 | OIL LINE OIL LINE | 1 | |
| 10 | 4936123 | PRESSURE GAUGE PRESSURE GAUGE | 1 | |
| 11 | 4916203 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 13 | 8105380 | SUPPORT SUPPORT | 1 | |
| 14 | 8105764 | INSTRUMENTS BOARD INSTRUMENTS BOARD | 1 | |
| 15 | 10260160 | SEAL GASKET SEAL GASKET | 3 | |
| 16 | 4858609 | WASHER WASHER | 1 | |
| 17 | 8103662 | SCREW SCREW | 4 | |
| 18 | 11197771 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 14142490 | LAMP LAMP | 6 | |
| 20 | 15896211 | HEXAGON NUT HEXAGON NUT | 8 | |
| 21 | 38800427 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 22 | 8005922 | LUMINOUS INDICATOR LUMINOUS INDICATOR | 1 | |
| 23 | 4934522 | ENGINE HARNESS ENGINE HARNESS | 1 |
