DIGITAL INSTRUMENT PANEL 24V
PU8210I03.00A106 — PU8210I03

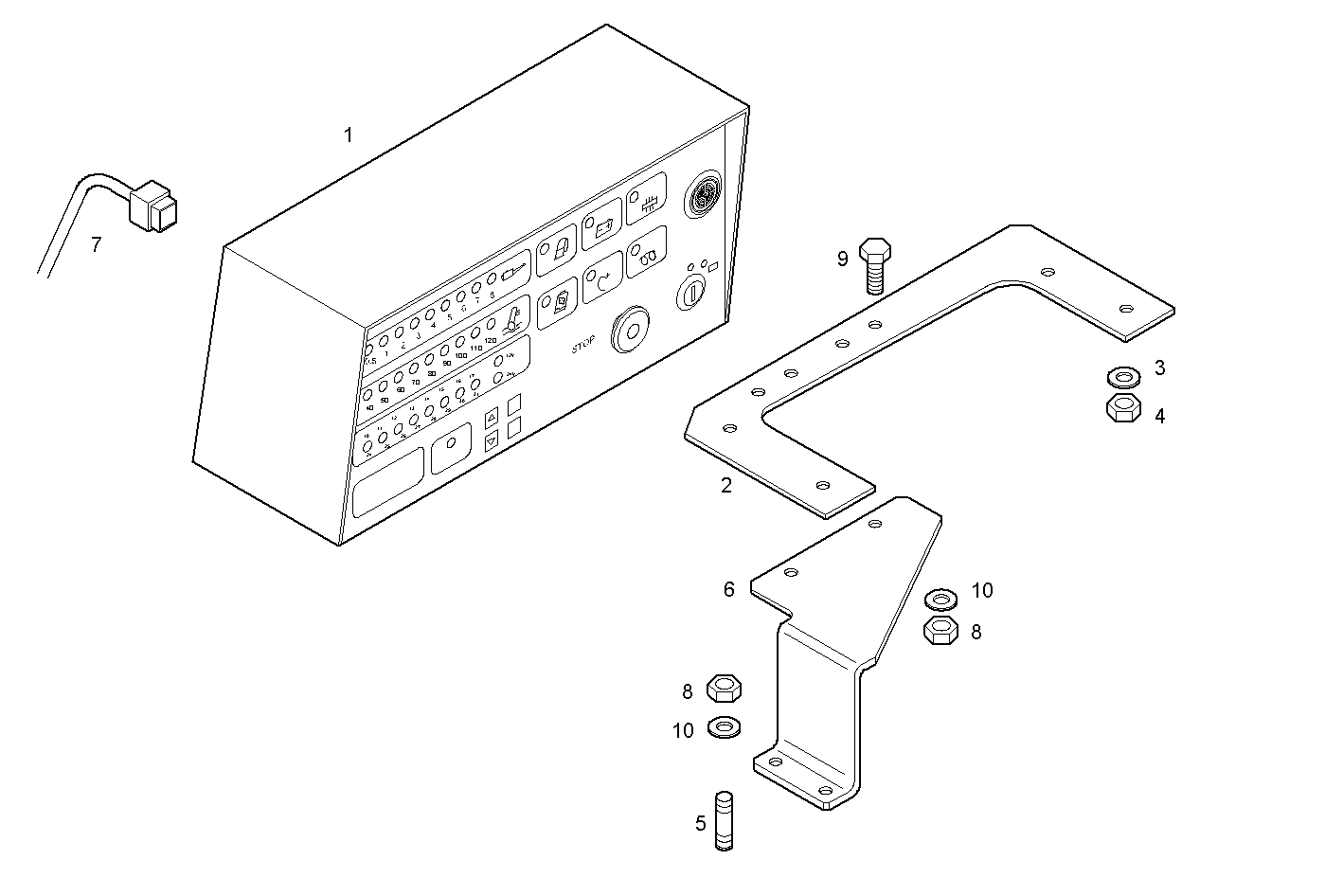

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8033504 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 4928490 | RETAINER RETAINER | 1 | |
| 3 | 17088474 | WASHER WASHER | 4 | |
| 4 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17366124 | STUD STUD | 2 | |
| 6 | 4928491 | SUPPORT SUPPORT | 1 | |
| 7 | 8027920 | EXTENSION EXTENSION | 1 | |
| 8 | 17037921 | NUT NUT | 4 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 4 |
