DRY AIR CLEANER
PU8210SRi10.00A100 — PU8210SRi10

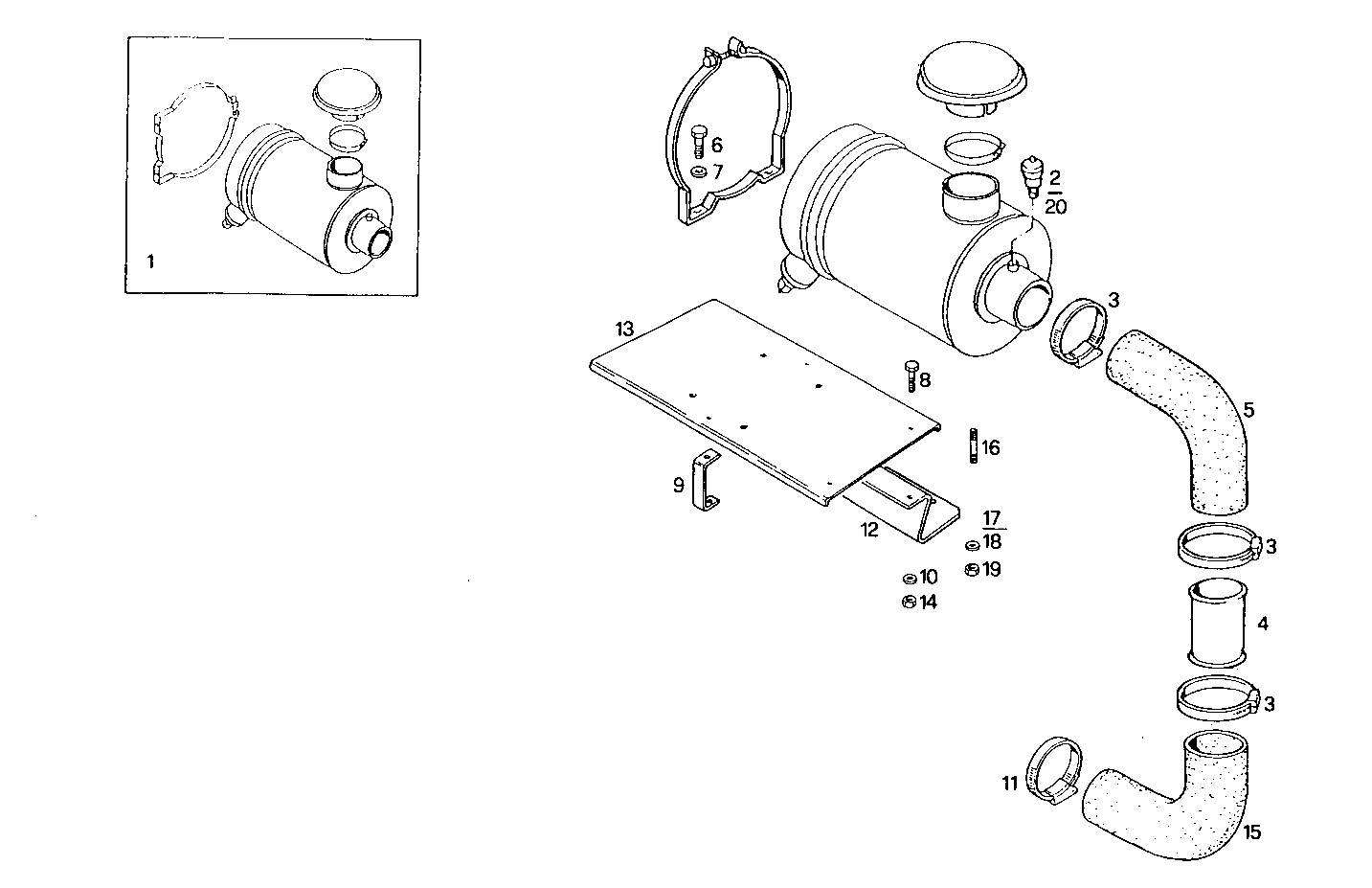

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8016915 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 4936137 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 17766091 | CLIP CLIP | 3 | |
| 4 | 8113940 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 5 | 8113938 | FILTER HOSE FILTER HOSE | 1 | |
| 6 | 15540324 | SCREW SCREW | 4 | |
| 7 | 17091374 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 8107870 | RETAINER RETAINER | 1 | |
| 10 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 17765791 | CLIP CLIP | 1 | |
| 12 | 8108263 | RETAINER RETAINER | 1 | |
| 13 | 8016983 | SUPPORT SUPPORT | 1 | |
| 14 | 17038221 | HEXAGON NUT HEXAGON NUT | 4 | |
| 15 | 8113939 | FILTER HOSE FILTER HOSE | 1 | |
| 16 | 13449321 | STUD STUD | 1 | |
| 17 | 17095104 | WASHER WASHER | 2 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 19 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 8022540 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 |
