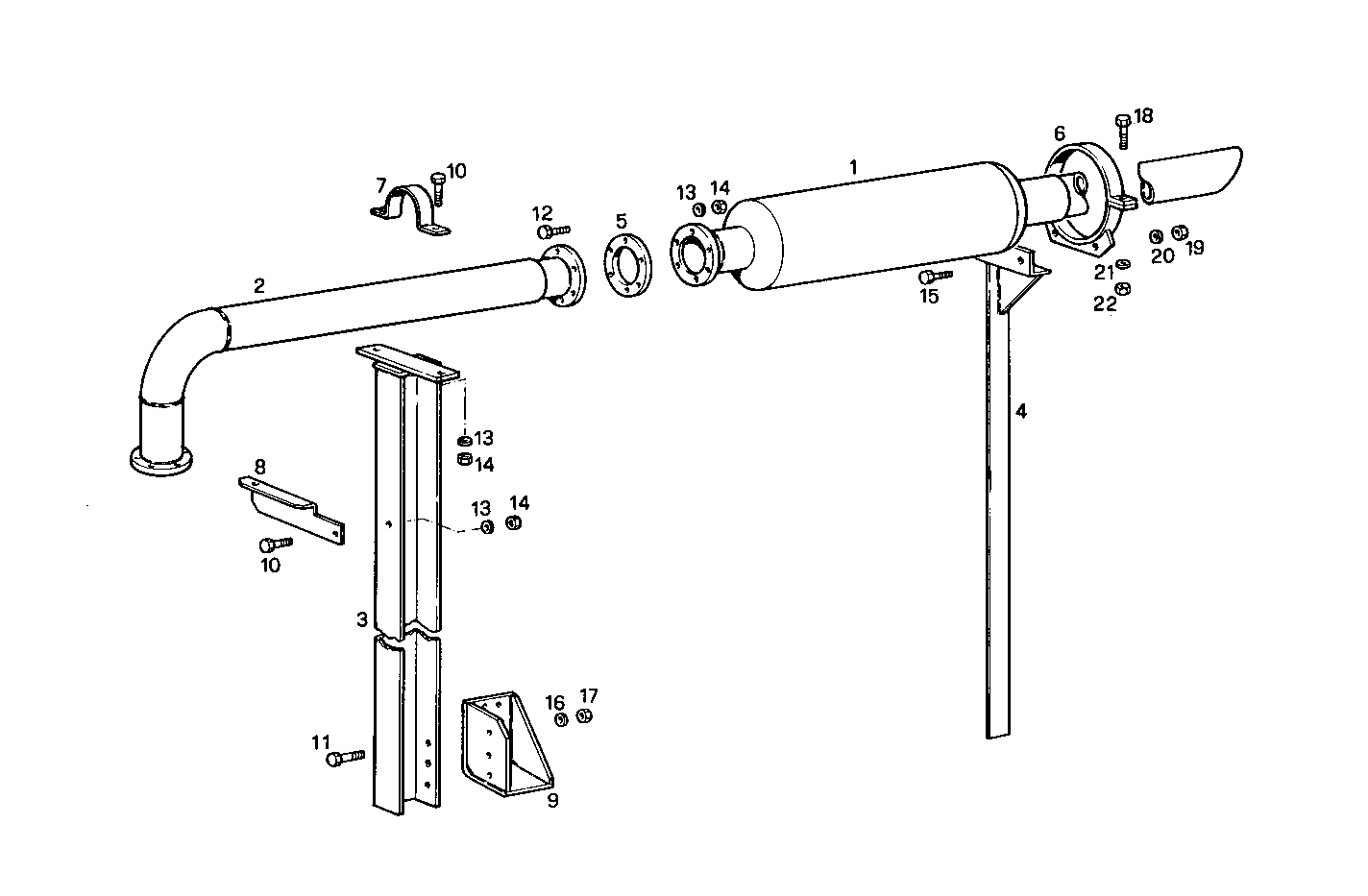

HORIZONTAL SILENCER
PU8210SRi10.00A100 — PU8210SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005060 | SILENCER SILENCER | 1 | |
| 2 | 8005057 | EXHAUST PIPE EXHAUST PIPE | 1 | |
| 3 | 8005053 | SUPPORT SUPPORT | 1 | |
| 4 | 8005059 | SUPPORT SUPPORT | 1 | |
| 5 | 8009639 | GASKET GASKET | 1 | |
| 6 | 4621724 | CLIP CLIP | 1 | |
| 7 | 8005058 | RETAINER RETAINER | 1 | |
| 8 | 8005054 | RETAINER RETAINER | 1 | |
| 9 | 8005052 | SUPPORT SUPPORT | 1 | |
| 10 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 11 | 11403821 | SCREW SCREW | 3 | |
| 12 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 13 | 11198379 | SPRING WASHER SPRING WASHER | 8 | |
| 14 | 12164711 | HEXAGON NUT HEXAGON NUT | 9 | |
| 15 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 11194179 | SPRING WASHER SPRING WASHER | 3 | |
| 17 | 12164011 | HEXAGON NUT HEXAGON NUT | 3 | |
| 18 | 16038521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 20 | 11194079 | SPRING WASHER SPRING WASHER | 2 | |
| 21 | 15896211 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 11194379 | SPRING WASHER SPRING WASHER | 1 |
