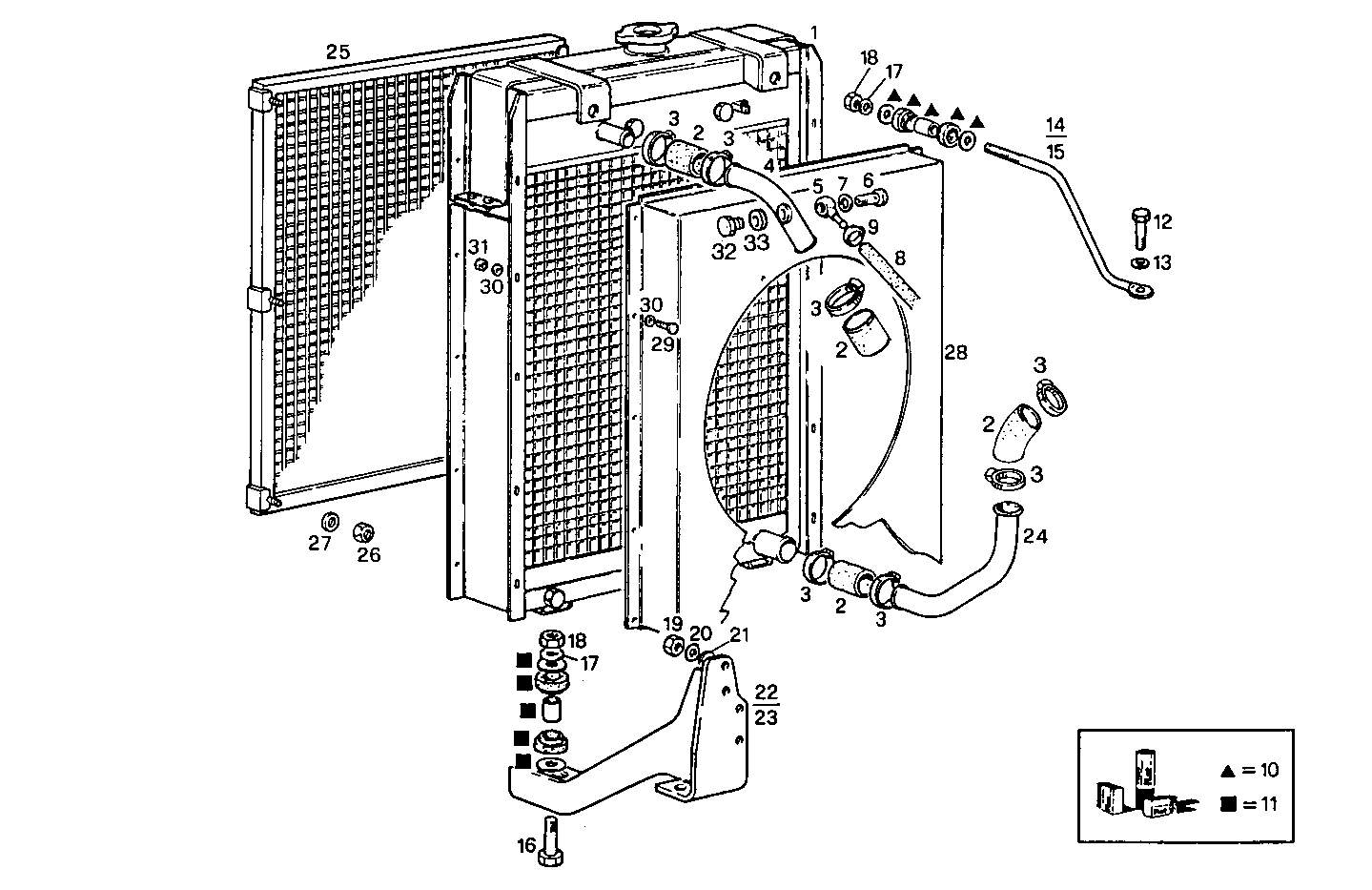

RADIATOR FOR SETTING TILL MAX POWER
PU8210SRi10.00A100 — PU8210SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107630 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17745887 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 3 | 17765091 | CLIP CLIP | 8 | |
| 4 | 8022073 | WATER PIPE WATER PIPE | 1 | |
| 5 | 98405514 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 7 | 4858607 | WASHER WASHER | 2 | |
| 8 | 19067387 | HOSE HOSE | 1 | |
| 9 | 18087991 | CLIP CLIP | 2 | |
| 10 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 12 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 14 | 8107626 | TIE ROD TIE ROD | 1 | |
| 15 | 8107627 | TIE ROD TIE ROD | 1 | |
| 16 | 15541421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17091374 | SPRING WASHER SPRING WASHER | 6 | |
| 18 | 17038621 | NUT NUT | 6 | |
| 19 | 17038821 | HEXAGON NUT HEXAGON NUT | 6 | |
| 20 | 17091674 | WASHER WASHER | 6 | |
| 21 | 10738121 | WASHER WASHER | 6 | |
| 22 | 8107629 | SUPPORT SUPPORT | 1 | |
| 23 | 8107628 | SUPPORT SUPPORT | 1 | |
| 24 | 8107624 | WATER PIPE WATER PIPE | 1 | |
| 25 | 8107633 | GRILLE GRILLE | 1 | |
| 26 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 27 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 28 | 8008842 | WATER CONVEYOR WATER CONVEYOR | 1 | |
| 29 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 30 | 17088474 | WASHER WASHER | 20 | |
| 31 | 17037821 | HEXAGON NUT HEXAGON NUT | 10 | |
| 32 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 33 | 4858609 | WASHER WASHER | 1 |
