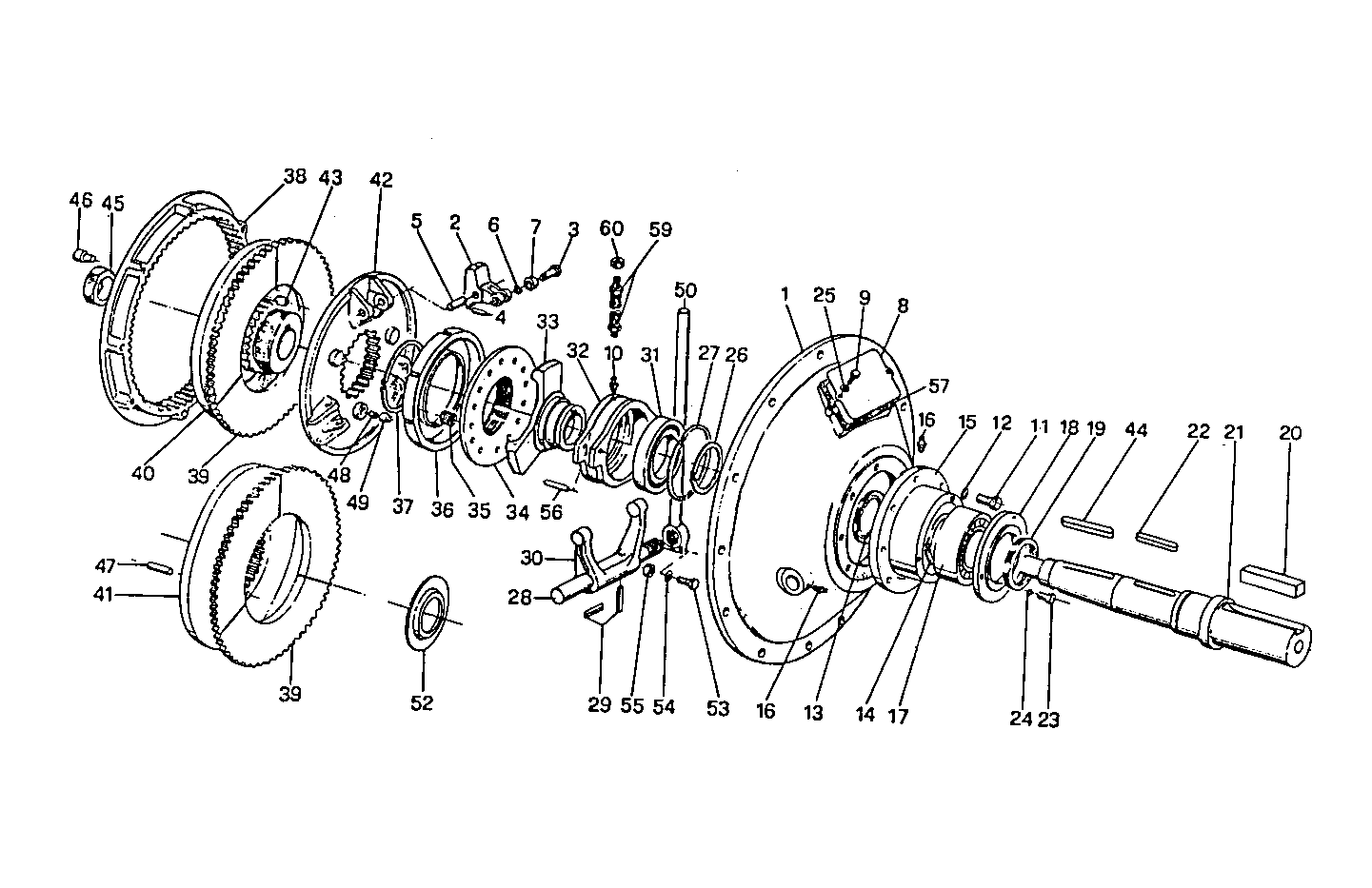

TRIDISC CLUTCH
PU8210SRi10.00A100 — PU8210SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8091172 | SUPPORT SUPPORT | 1 | |
| 2 | 8091072 | LEVER LEVER | 3 | |
| 3 | 8091073 | PIN PIN | 3 | |
| 4 | 8091074 | PIN PIN | 3 | |
| 5 | 8091075 | PIN PIN | 3 | |
| 6 | 8091076 | SPRING LOCKWASHER SPRING LOCKWASHER | 3 | |
| 7 | 8091077 | PIN PIN | 3 | |
| 8 | 8091078 | COVER COVER | 1 | |
| 9 | 8090809 | SCREW SCREW | 5 | |
| 10 | 8090815 | LUBE FITTING LUBE FITTING | 1 | |
| 11 | 8091079 | SCREW SCREW | 6 | |
| 12 | 8090812 | WASHER WASHER | 6 | |
| 13 | 8091081 | WASHER WASHER | 1 | |
| 14 | 8091082 | CIRCLIP CIRCLIP | 1 | |
| 15 | 8091083 | FLANGE FLANGE | 1 | |
| 16 | 8090815 | LUBE FITTING LUBE FITTING | 3 | |
| 17 | 8091084 | DRIVE BEARING DRIVE BEARING | 1 | |
| 18 | 8091085 | COVER COVER | 1 | |
| 19 | 8091086 | OIL RETAINER OIL RETAINER | 1 | |
| 20 | 8091087 | KEY KEY | 1 | |
| 21 | 8091118 | CLUTCHSHAFT CLUTCHSHAFT | 1 | |
| 22 | 8091089 | KEY KEY | 1 | |
| 23 | 8091090 | SCREW SCREW | 6 | |
| 24 | 8091080 | WASHER WASHER | 6 | |
| 25 | 8091042 | WASHER WASHER | 2 | |
| 26 | 8091091 | CIRCLIP CIRCLIP | 1 | |
| 27 | 8091092 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 28 | 8091093 | CLUTCHSHAFT CLUTCHSHAFT | 1 | |
| 29 | 8091094 | KEY KEY | 2 | |
| 30 | 8091095 | CLEVIS CLEVIS | 1 | |
| 31 | 8091096 | DRIVE BEARING DRIVE BEARING | 1 | |
| 32 | 8091097 | SUPPORT SUPPORT | 1 | |
| 33 | 8091119 | SUPPORT SUPPORT | 1 | |
| 34 | 8091099 | FLANGE FLANGE | 1 | |
| 35 | 8090832 | SPRING SPRING | 20 | |
| 36 | 8091100 | FLANGE FLANGE | 1 | |
| 37 | 8091101 | CIRCLIP CIRCLIP | 1 | |
| 38 | 8091120 | FLANGE FLANGE | 1 | |
| 39 | 8091103 | CLUTCH DISC CLUTCH DISC | 1 | |
| 40 | 8091121 | CLUTCH DISC CLUTCH DISC | 1 | |
| 41 | 8090853 | CLUTCH DISC CLUTCH DISC | 2 | |
| 42 | 8091122 | RING RING | 1 | |
| 43 | 8091123 | SPRING SPRING | 6 | |
| 44 | 8091124 | KEY KEY | 1 | |
| 45 | 8091108 | NUT NUT | 1 | |
| 46 | 8090842 | KEY KEY | 1 | |
| 47 | 8091125 | PIN PIN | 6 | |
| 48 | 8090843 | SPRING SPRING | 1 | |
| 49 | 8091109 | PIN PIN | 1 | |
| 50 | 8091155 | LEVER LEVER | 1 | |
| 52 | 8091110 | RING RING | 1 | |
| 53 | 8091111 | SCREW SCREW | 2 | |
| 54 | 8090846 | WASHER WASHER | 2 | |
| 55 | 8091112 | NUT NUT | 2 | |
| 56 | 8091113 | PIN PIN | 2 | |
| 57 | 8091114 | GASKET GASKET | 1 | |
| 58 | 8090815 | LUBE FITTING LUBE FITTING | 3 | |
| 59 | 8091115 | OIL HOSE OIL HOSE | 1 | |
| 60 | 8091116 | NUT NUT | 1 | |
| 61 | 8091117 | PIN PIN | 3 |
