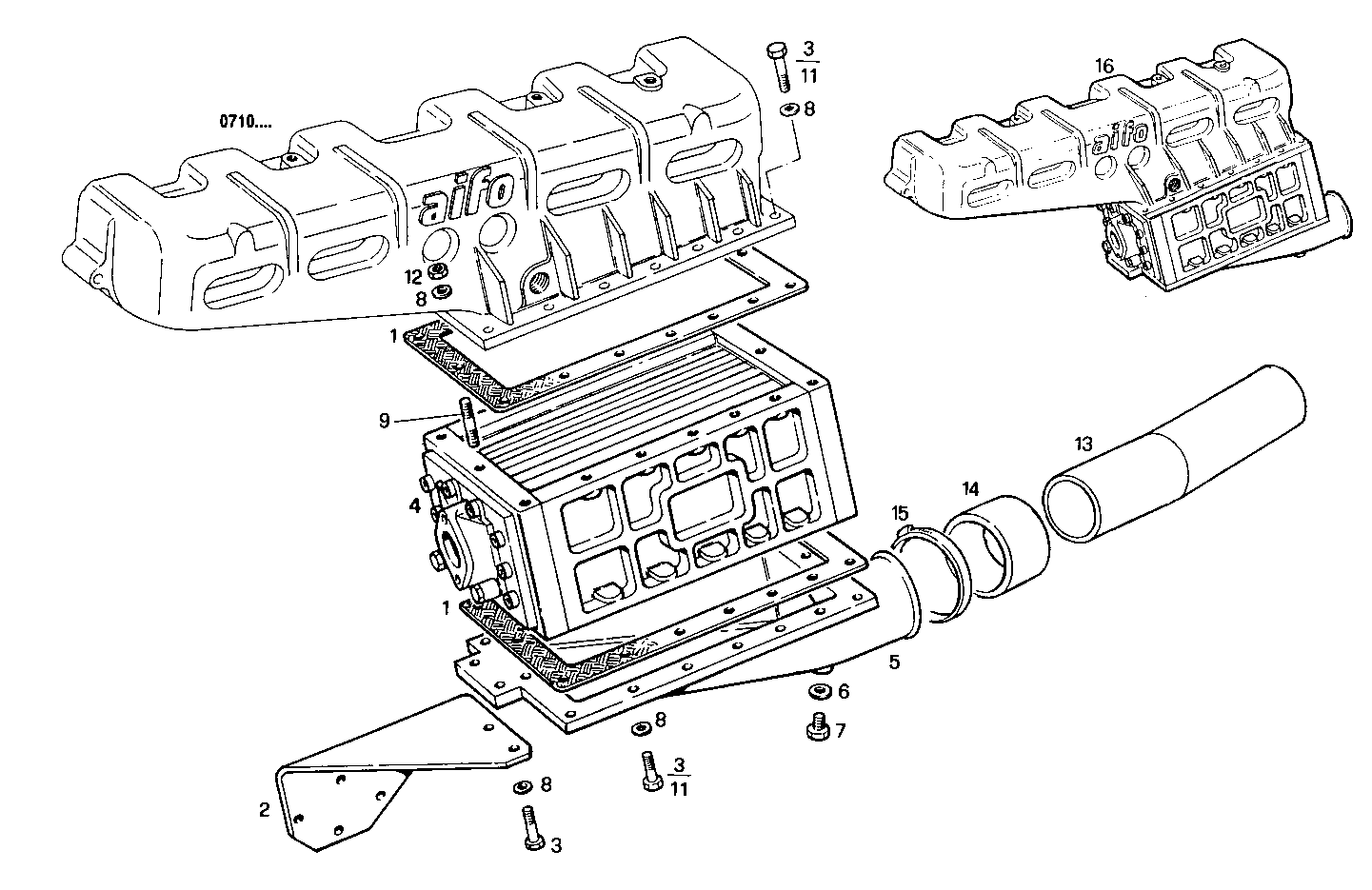

AIR - WATER HEAT EXCHANGER
PU8210SRI10.00A101 — PU8281SRI10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8008906 | GASKET GASKET | 2 | |
| 2 | 8107181 | RETAINER RETAINER | 1 | |
| 3 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 4 | 8022764 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 | |
| 5 | 8107213 | AIR HOOD AIR HOOD | 1 | |
| 6 | 4858607 | WASHER WASHER | 1 | |
| 7 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 34 | |
| 9 | 16729424 | STUD STUD | 2 | |
| 11 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 20 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 8107228 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 14 | 4865230 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 15 | 4788410 | CLIP CLIP | 2 | |
| 16 | 8077071 | AIR/WATER HEAT EXCHANGER AIR/WATER HEAT EXCHANGER | 1 |
